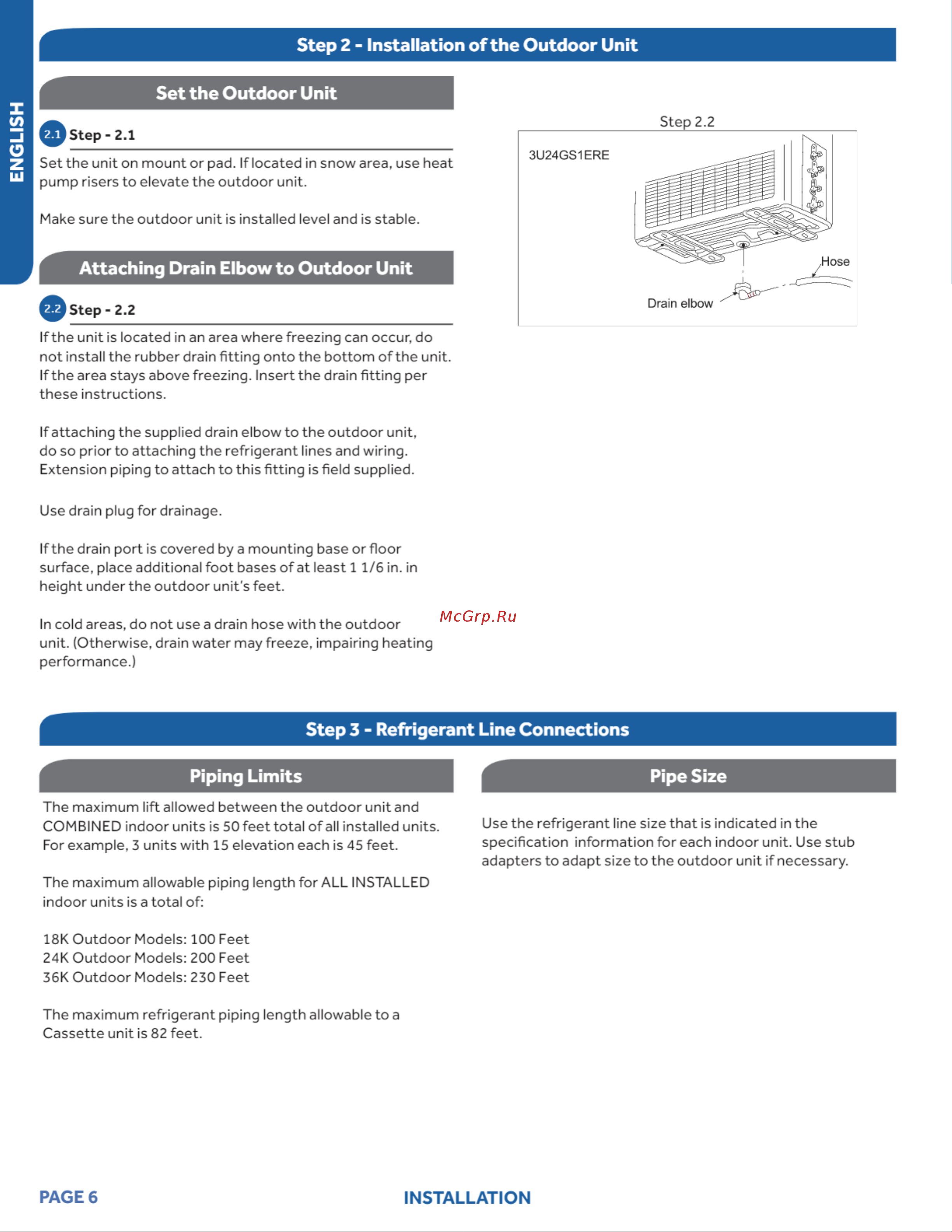

Step 2 Installation of the Outdoor Unit ENGLISH Set the Outdoor Unit Step 2 1 Set the uniton mount or pad If located in snow area use heat pump risers to elevate the outdoor unit Make sure the outdoor unit is installed level and is stable Attaching Drain Elbow to Outdoor Unit Step 2 2 If the unit is located in an area where freezing can occur do not install the rubber drain fitting onto the bottom of the unit If the area stays above freezing Insert the drain fitting per these instructions If attaching the supplied drain elbow to the outdoor unit do so prior to attaching the refrigerant lines and wiring Extension piping to attach to this fitting is field supplied Use drain plug for drainage If the drain port is covered by a mounting base or floor surface place additional foot bases of at least 11 6 in in height under the outdoor unit s feet In cold areas do not use a drain hose with the outdoor unit Otherwise drain water may freeze impairing heating performance Step 3 Refrigerant Line Connections Piping Limits The maximum lift allowed between the outdoor unit and COMBINED indoor units is 50 feet total of all installed units For example 3 units with 15 elevation each is 45 feet Pipe Size Use the refrigerant line size that is indicated in the specification information for each indoor unit Use stub adapters to adapt size to the outdoor unit if necessary The maximum allowable piping length for ALL INSTALLED indoor units is a total of 18K Outdoor Models 100 Feet 24K Outdoor Models 200 Feet 36K Outdoor Models 230 Feet The maximum refrigerant piping length allowable to a Cassette unit is 82 feet PAGE 6 INSTALLATION
