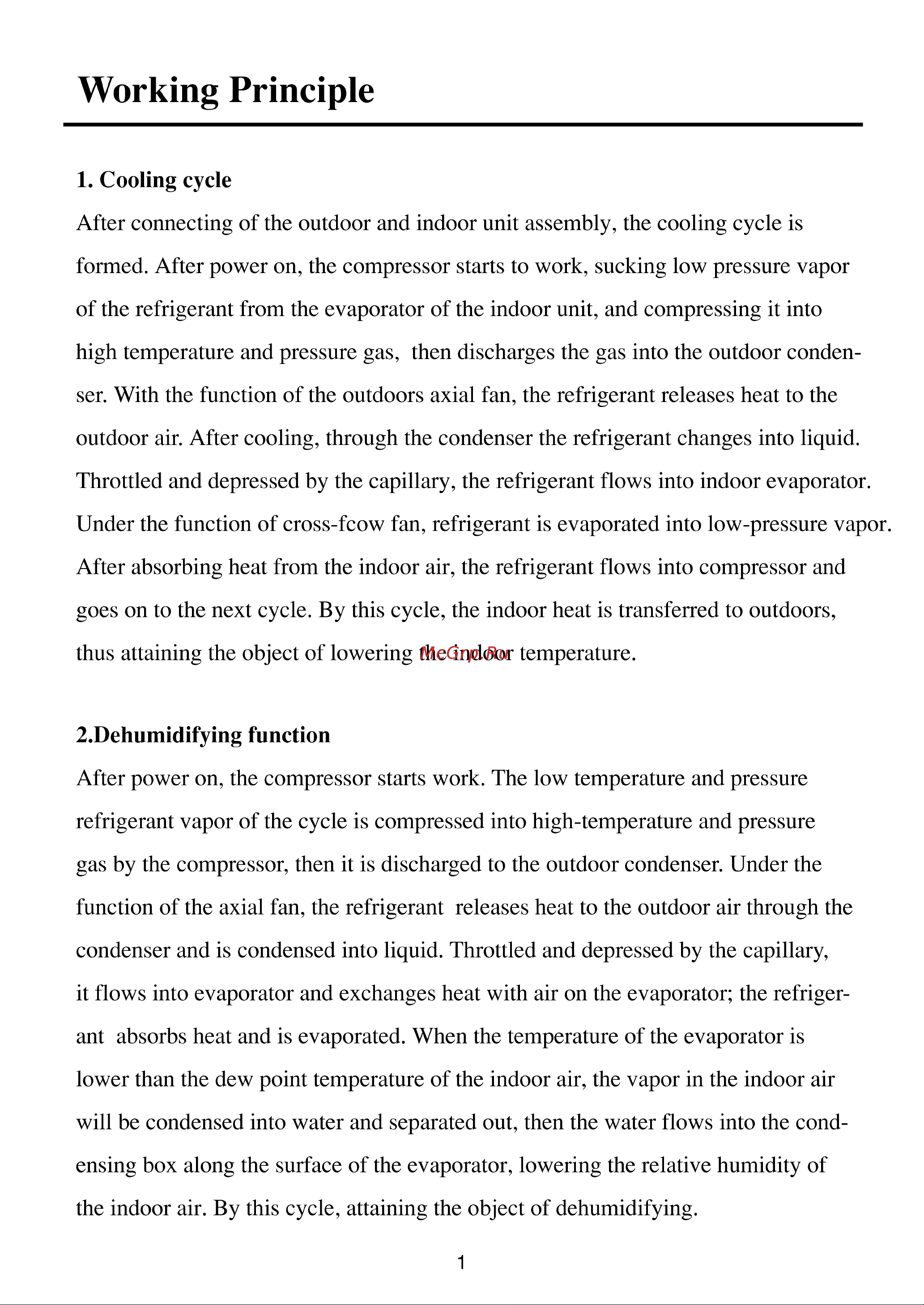

Working Principle 1 Cooling cycle After connecting of the outdoor and indoor unit assembly the cooling cycle is formed After power on the compressor starts to work sucking low pressure vapor of the refrigerant from the evaporator of the indoor unit and compressing it into high temperature and pressure gas then discharges the gas into the outdoor conden ser With the function of the outdoors axial fan the refrigerant releases heat to the outdoor air After cooling through the condenser the refrigerant changes into liquid Throttled and depressed by the capillary the refrigerant flows into indoor evaporator Under the function of cross fcow fan refrigerant is evaporated into low pressure vapor After absorbing heat from the indoor air the refrigerant flows into compressor and goes on to the next cycle By this cycle the indoor heat is transferred to outdoors thus attaining the object of lowering the indoor temperature 2 Dehumidifying function After power on the compressor starts work The low temperature and pressure refrigerant vapor of the cycle is compressed into high temperature and pressure gas by the compressor then it is discharged to the outdoor condenser Under the function of the axial fan the refrigerant releases heat to the outdoor air through the condenser and is condensed into liquid Throttled and depressed by the capillary it flows into evaporator and exchanges heat with air on the evaporator the refriger ant absorbs heat and is evaporated When the temperature of the evaporator is lower than the dew point temperature of the indoor air the vapor in the indoor air will be condensed into water and separated out then the water flows into the cond ensing box along the surface of the evaporator lowering the relative humidity of the indoor air By this cycle attaining the object of dehumidifying 1
