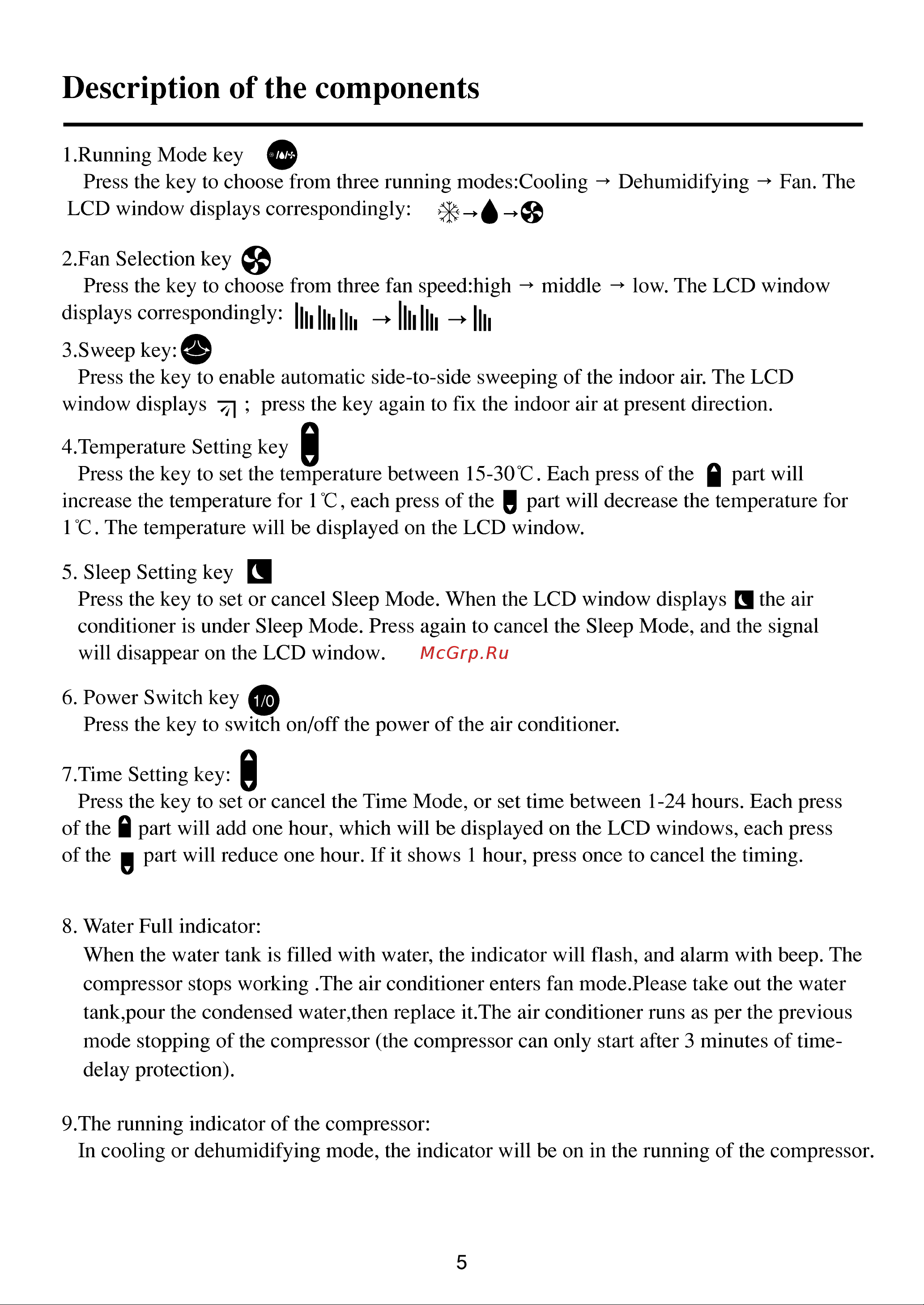

Description of the components 1 Running Mode key Press the key to choose from three running modes Cooling Dehumidifying Fan The LCD window displays correspondingly A 2 Fan Selection key Press the key to choose from three fan speed high middle low The LCD window displays correspondingly Illi Illi Illi Illi Illi Illi 3 Sweep key Press the key to enable automatic side to side sweeping of the indoor air The LCD window displays press the key again to fix the indoor air at present direction 4 Temperature Setting key Q Press the key to set the temperature between 15 30 C Each press of the Q part will increase the temperature for 1 C each press of the Q part will decrease the temperature for 1 C The temperature will be displayed on the LCD window 5 Sleep Setting key H Press the key to set or cancel Sleep Mode When the LCD window displays Q the air conditioner is under Sleep Mode Press again to cancel the Sleep Mode and the signal will disappear on the LCD window 6 Power Switch key Press the key to switch on off the power of the air conditioner 7 Time Setting key Q Press the key to set or cancel the Time Mode or set time between 1 24 hours Each press of the fi part will add one hour which will be displayed on the LCD windows each press of the g part will reduce one hour If it shows 1 hour press once to cancel the timing 8 Water Full indicator When the water tank is filled with water the indicator will flash and alarm with beep The compressor stops working The air conditioner enters fan mode Please take out the water tank pour the condensed water then replace it The air conditioner runs as per the previous mode stopping of the compressor the compressor can only start after 3 minutes of time delay protection 9 The running indicator of the compressor In cooling or dehumidifying mode the indicator will be on in the running of the compressor 5
