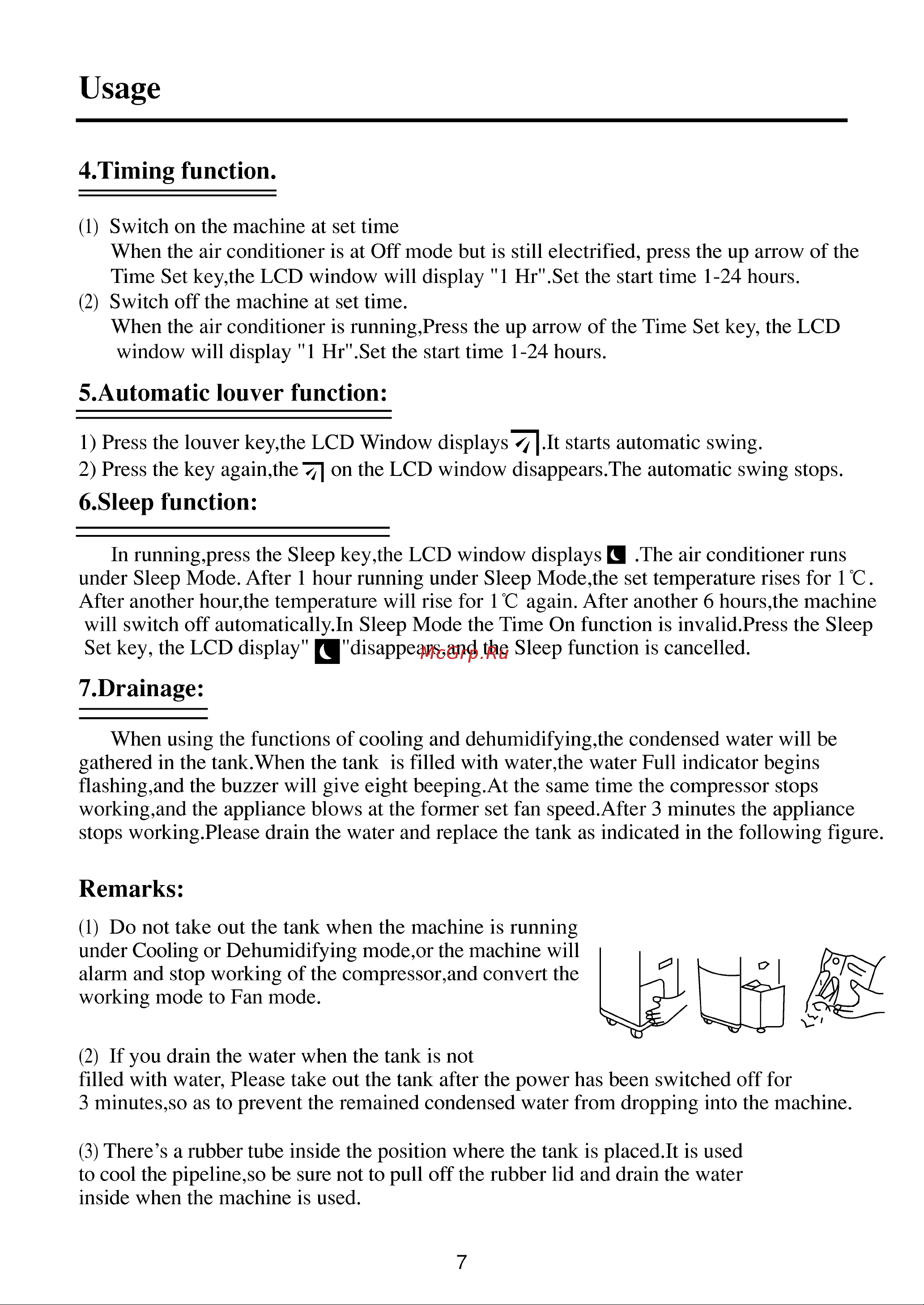

Usage 4 Timing function 1 Switch on the machine at set time When the air conditioner is at Off mode but is still electrified press the up arrow of the Time Set key the LCD window will display 1 Hr Set the start time 1 24 hours 2 Switch off the machine at set time When the air conditioner is running Press the up arrow of the Time Set key the LCD window will display 1 Hr Set the start time 1 24 hours 5 Automatic louver function 1 Press the louver key the LCD Window displays It starts automatic swing 2 Press the key again the on the LCD window disappears The automatic swing stops 6 Sleep function In running press the Sleep key the LCD window displays 3 The air conditioner runs under Sleep Mode After 1 hour running under Sleep Mode the set temperature rises for 1 C After another hour the temperature will rise for 1 C again After another 6 hours the machine will switch off automatically In Sleep Mode the Time On function is invalid Press the Sleep Set key the LCD display disappears and the Sleep function is cancelled 7 Drainage When using the functions of cooling and dehumidifying the condensed water will be gathered in the tank When the tank is filled with water the water Full indicator begins flashing and the buzzer will give eight beeping At the same time the compressor stops working and the appliance blows at the former set fan speed After 3 minutes the appliance stops working Please drain the water and replace the tank as indicated in the following figure Remarks 1 Do not take out the tank when the machine is running under Cooling or Dehumidifying mode or the machine will alarm and stop working of the compressor and convert the working mode to Fan mode 2 If you drain the water when the tank is not filled with water Please take out the tank after the power has been switched off for 3 minutes so as to prevent the remained condensed water from dropping into the machine 3 There s a rubber tube inside the position where the tank is placed lt is used to cool the pipeline so be sure not to pull off the rubber lid and drain the water inside when the machine is used 7
