FL D HF
13
EN
cod. 3541P701 - Rev. 00 - 10/2018

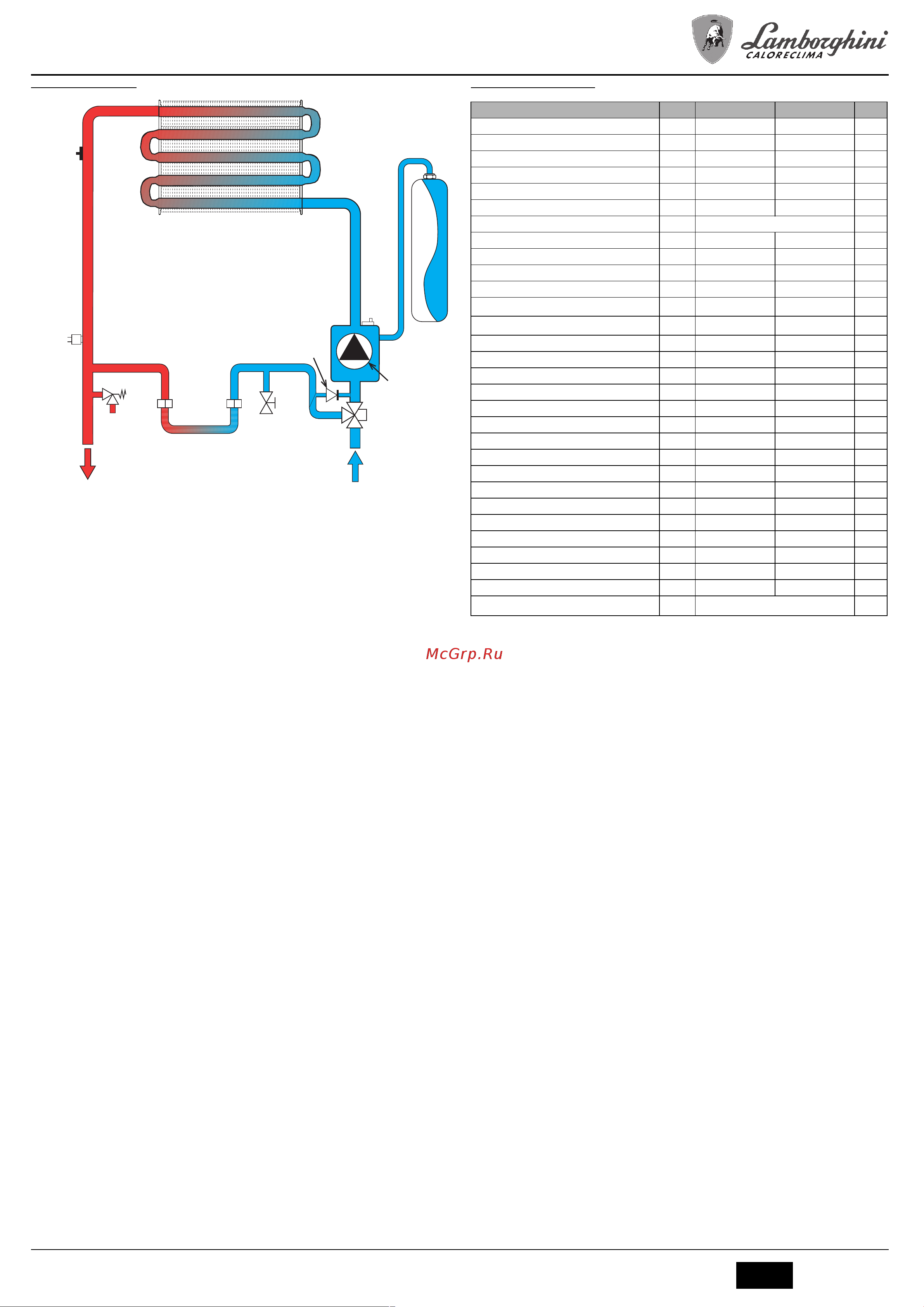

5.3 Hydraulic circuit
fig. 29- Heating circuit
5.4 Technical data table
27
278
241
1110
95
32
56
36
14
74
114
209 210
Data Unit FL D HF24 FL D HF32
Max. heating capacity kW 25.8 34.4 (Q)
Min. heating capacity kW 8.3 11.5 (Q)
Max. Heat Output in heating kW 24.0 32.0 (P)
Min. Heat Output in heating kW 7.2 9.9 (P)
Efficiency Pmax (80-60°C) % 93.0 93.1
Efficiency 30% % 90.5 91.0
NOx emissions class - 3 (<150 mg/kWh) (NOx)
Burner nozzles G20 no. x Ø 11 x 1.35 15 x 1.35
Gas supply pressure G20 mbar 20.0 20.0
Max. gas pressure at burner (G20) mbar 12.0 12.0
Min. gas pressure at burner (G20) mbar 1.5 1.5
Max. gas flow G20
m
3
/h
2.73 3.64
Min. gas flow G20
m
3
/h
0.88 1.22
Burner nozzles G31 no. x Ø 11 x 0.79 15 x 0.79
Gas supply pressure G31 mbar 37 37
Max. gas pressure at burner (G31) mbar 35.0 35.0
Min. gas pressure at burner (G31) mbar 5.0 5.0
Max. gas flow G31 kg/h 2.00 2.69
Min. gas flow G31 kg/h 0.65 0.90
Max. working pressure in heating bar 3 3 (PMS)
Min. working pressure in heating bar 0.8 0.8
Max. heating temperature °C 90 90 (tmax)
Heating water content liters 1.0 1.2
Heating expansion vessel capacity liters 8 10
Heating expansion vessel precharge pressure bar 1 1
Protection rating IP X5D X5D
Power supply voltage V/Hz 230V/50Hz
Electrical power input W 110 135
Empty weight kg 32 35
Type of unit
C
12
-C
22
-C
32
-C
42
-C
52
-C
62
-C
72
-C
82
-B
22
