FL D HF
15
EN
cod. 3541P701 - Rev. 00 - 10/2018

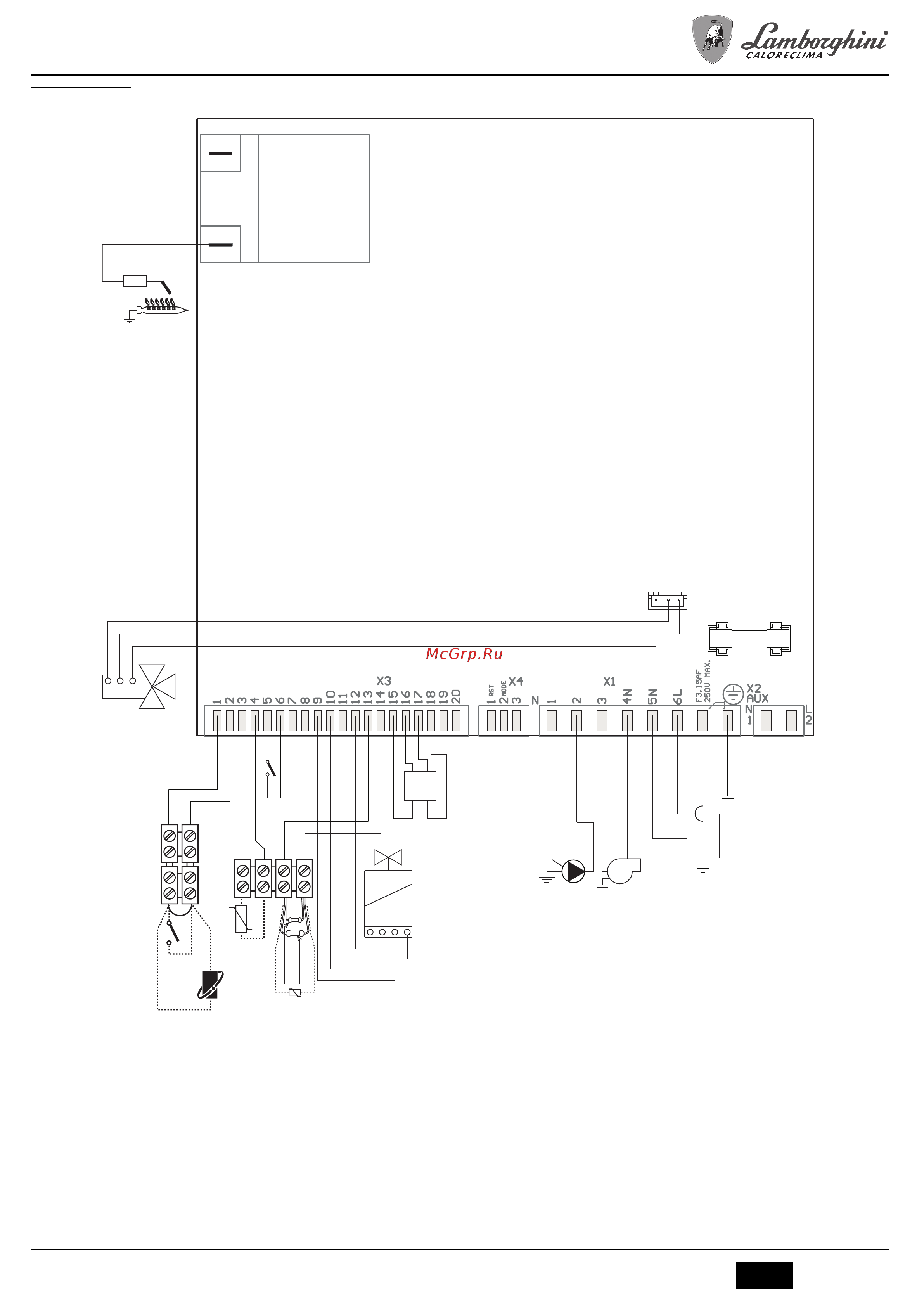

5.6 Wiring diagram
fig. 30- Wiring diagram
A
Attention: Remove the jumper on the terminal block before connecting the room thermostat or the remote timer control.
16 Fan
32 Heating circulating pump
44 Gas valve
72 Room thermostat (optional)
81 Ignition/detection electrode
95 Diverter valve
114 Water pressure switch
138 External probe (optional)
139 Remote timer control (optional)
155 Hot water tank probe (optional)
278 Double sensor (Safety + heating)
81
1k
W
L
N
230V
50 Hz
16
N
L
32
L
N
°
T
°
T
278
4321
44
ABM01A
95
321
RED
LIGHT BLUE
WHITE
114
321
72
139
138
155
10kOhm
1.8kOhm
