13.4.1.7. CS-F50DD3E5 CU-B50DBE8

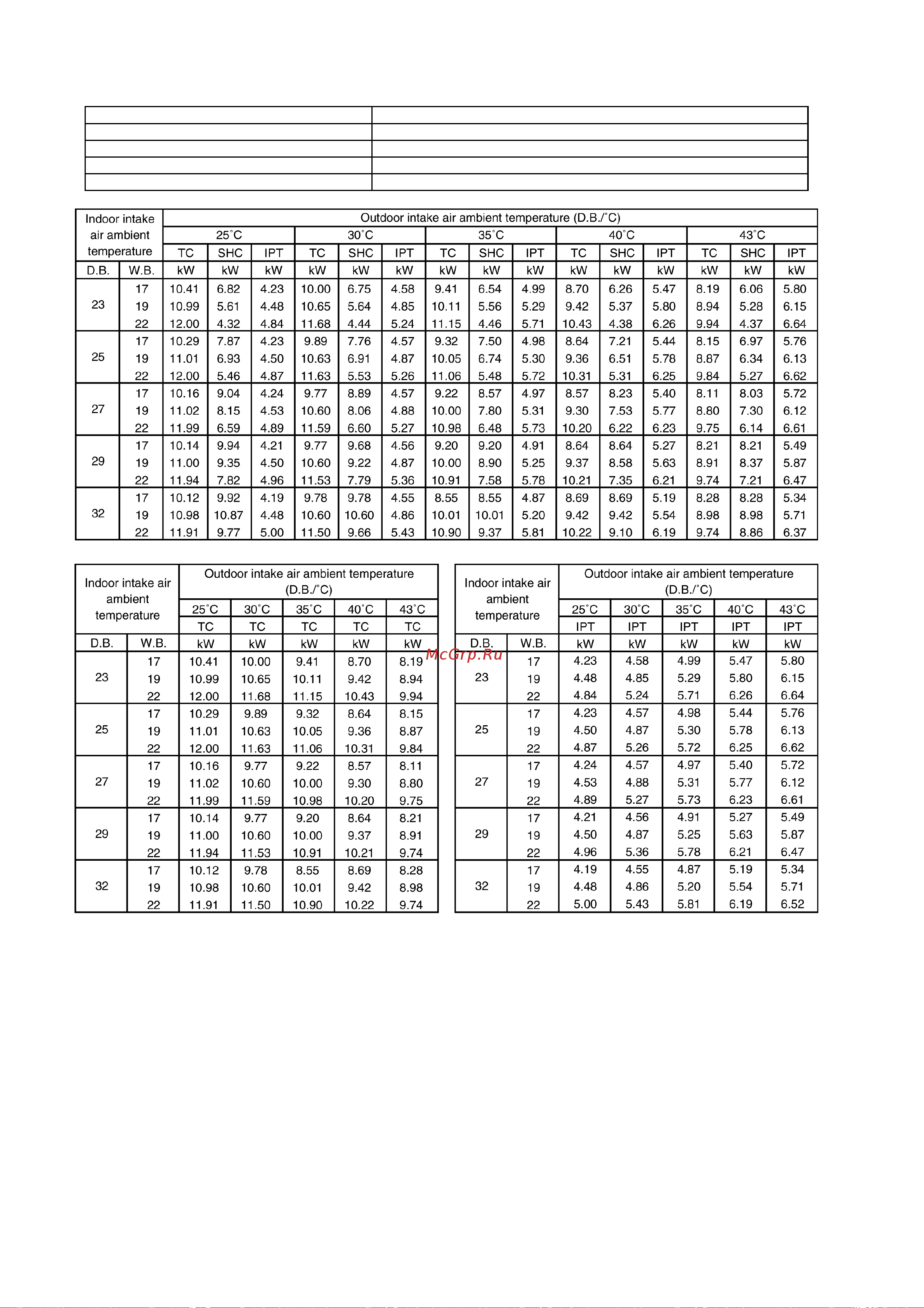

Model Cooling capacities are based on conditions

CS-F50DD3E5 CU-B50DBE8 3 phase, 50Hz, 400V

Cooling capacity Indoor temp. 27°C D.B. 19°C W.B.

13.5 kW Outdoor temp. 35°C D.B.

Standard air volume 44 m

/min

TC : Cooling Capacity

SHC : Sensible Heat Capacity

IPT : Cooling Power Consumption

118
