Panasonic CS-F43DD3E5 [21/148] Wiring diagram

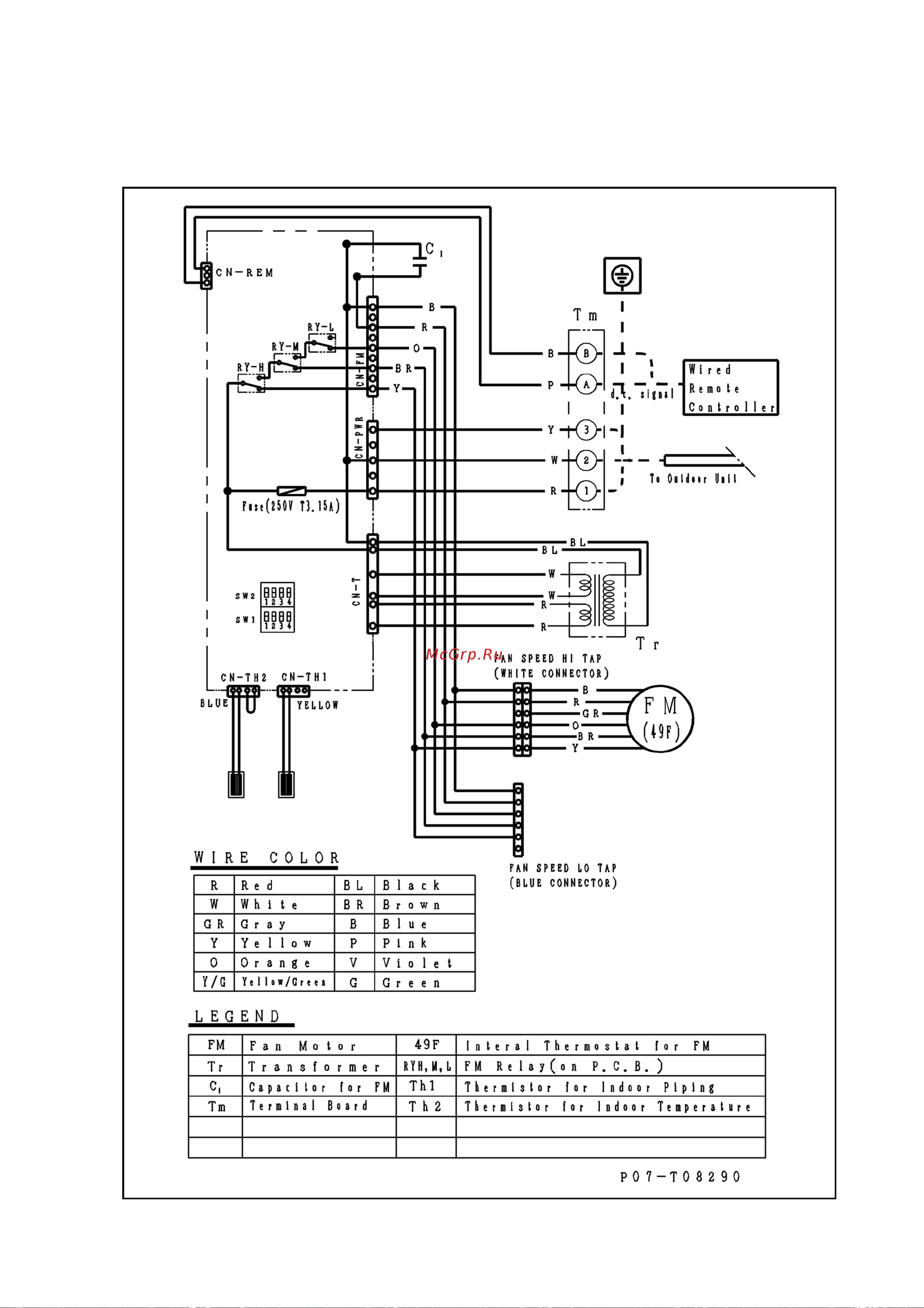

7 WIRING DIAGRAM

7.1. CS-F24DD3E5 CS-F28DD3E5 CS-F34DD3E5 CS-F43DD3E5

CS-F50DD3E5
