Panasonic CS-F43DD3E5 [129/148] Fan performance

13.5. Fan performance

13.5.1. CS-F24DD3E5

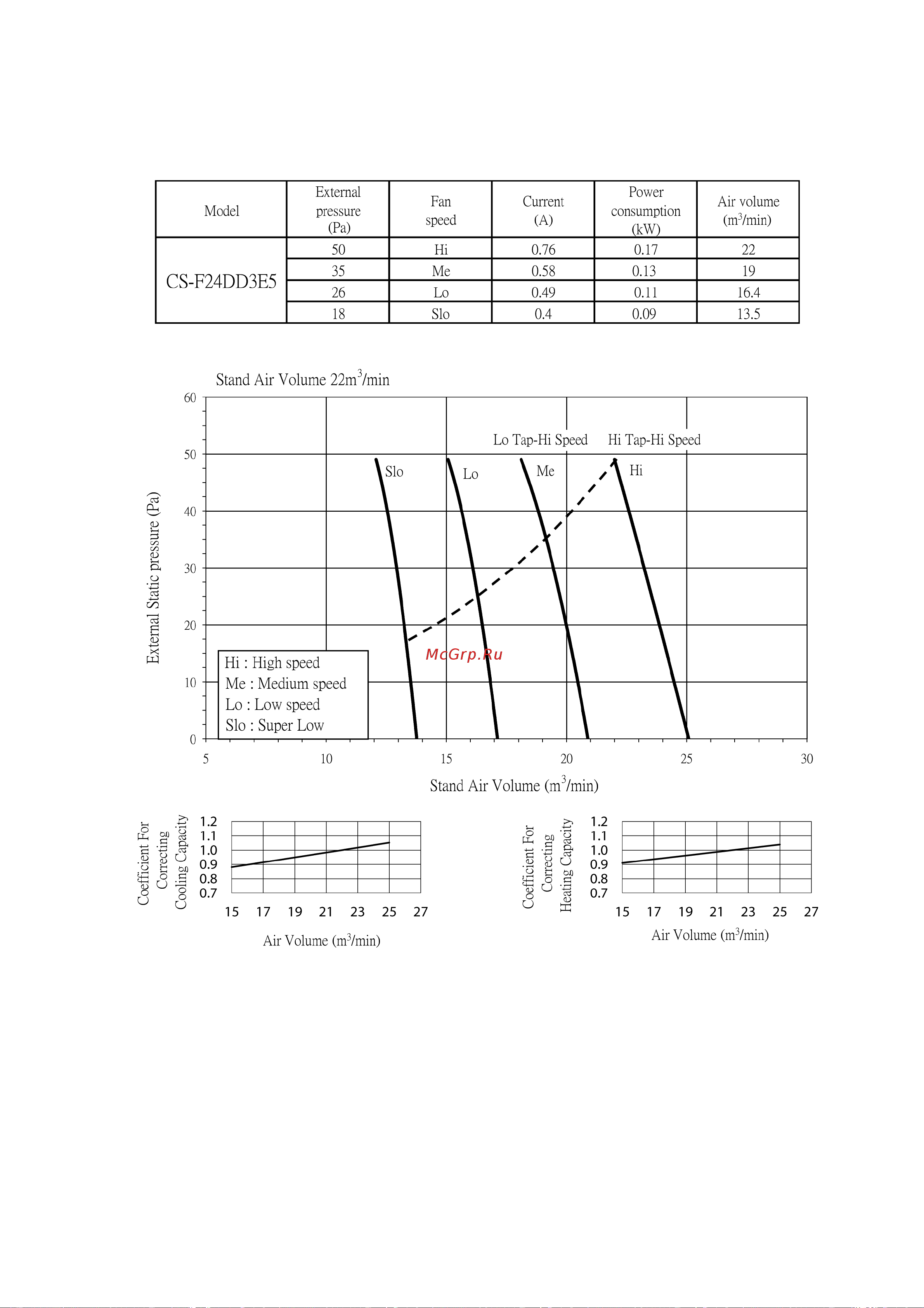

Fan performance test report

Fan performance curve

129
