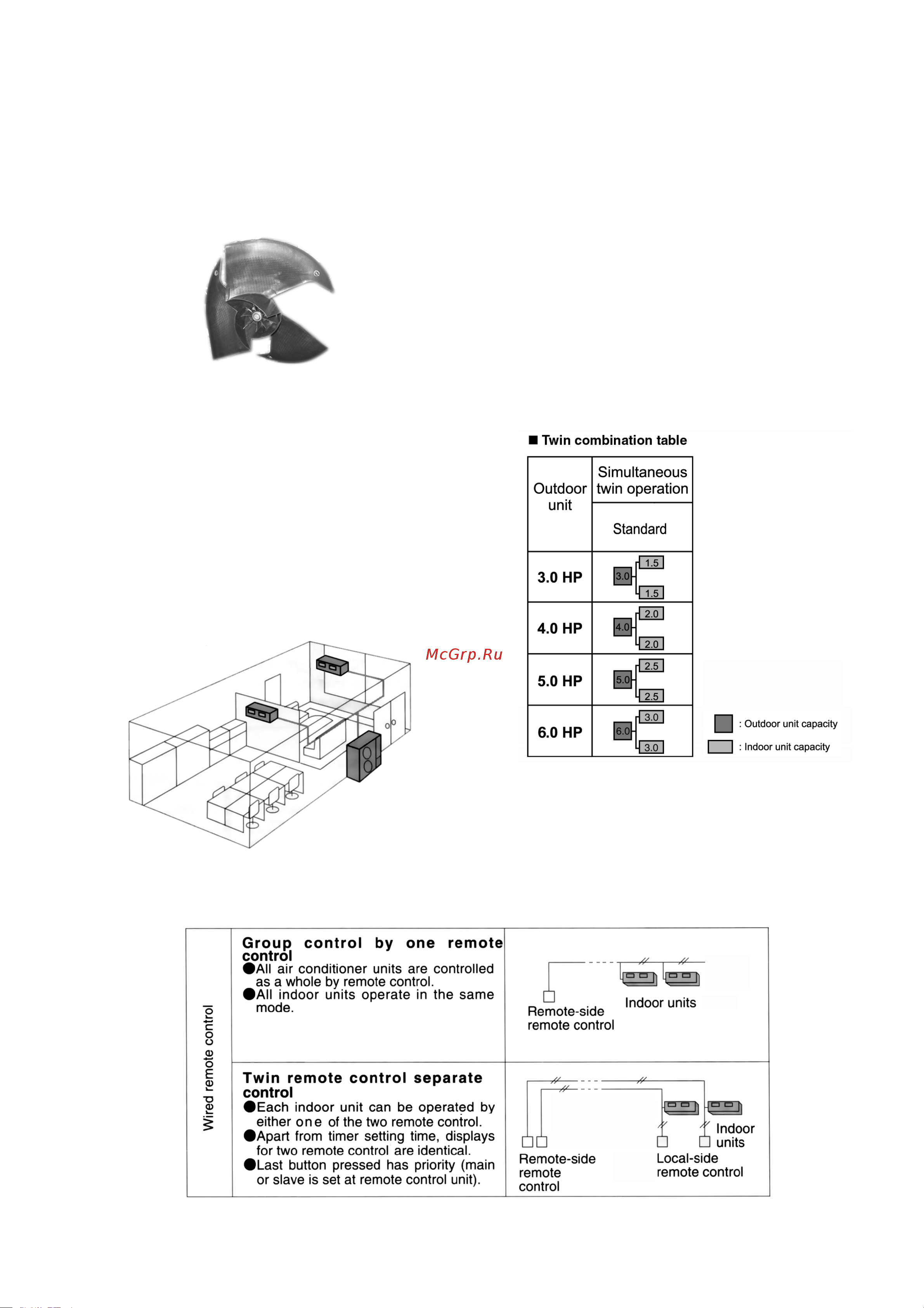

2.2.2. Quiet, efficient design
• A host of silencing technologies achieves super-quiet
operation.
• The noise-suppressing winglet fan is a result of new
research into vane design theory. The unique curved shape
suppresses the generation of vortexes, thus reduces air
flows noise.
2.3.1. Twin operation
• Simultaneous air conditioning of wide spaces and corners is
possible. Indoor units of same horsepowers and models
can even be used in combination.
• Master unit and slave-units can be set automatically in twin
systems. No address setting is necessary.
• Multiple indoor units can be operated simultaneously with a
single remote control. Note that individual operation is not
possible.
• Operating efficiency is improved and energy consumption is
reduced.
2.2.3. Low ambient cooling operation
• The unit can set for cooling even when the outdoor
temperature drops to -10°C. This is ideal for locations that
require cooling even in winter.
2.3. A brand-new control method using the latest in technology
2.3.2. Group control equipment
5
