Panasonic CS-A18BKP / CU-A18BKP5 [19/82] Soft dry mode operation
![Panasonic CS-A18BKP / CU-A18BKP5 [19/82] Soft dry mode operation](/views2/1832887/page19/bg13.png)
Time Delay Safety Control
Anti-Freezing Control
Compressor Reverse Rotation Protection Control
Anti-Dew Formation Control
Automatic Fan Speed Mode

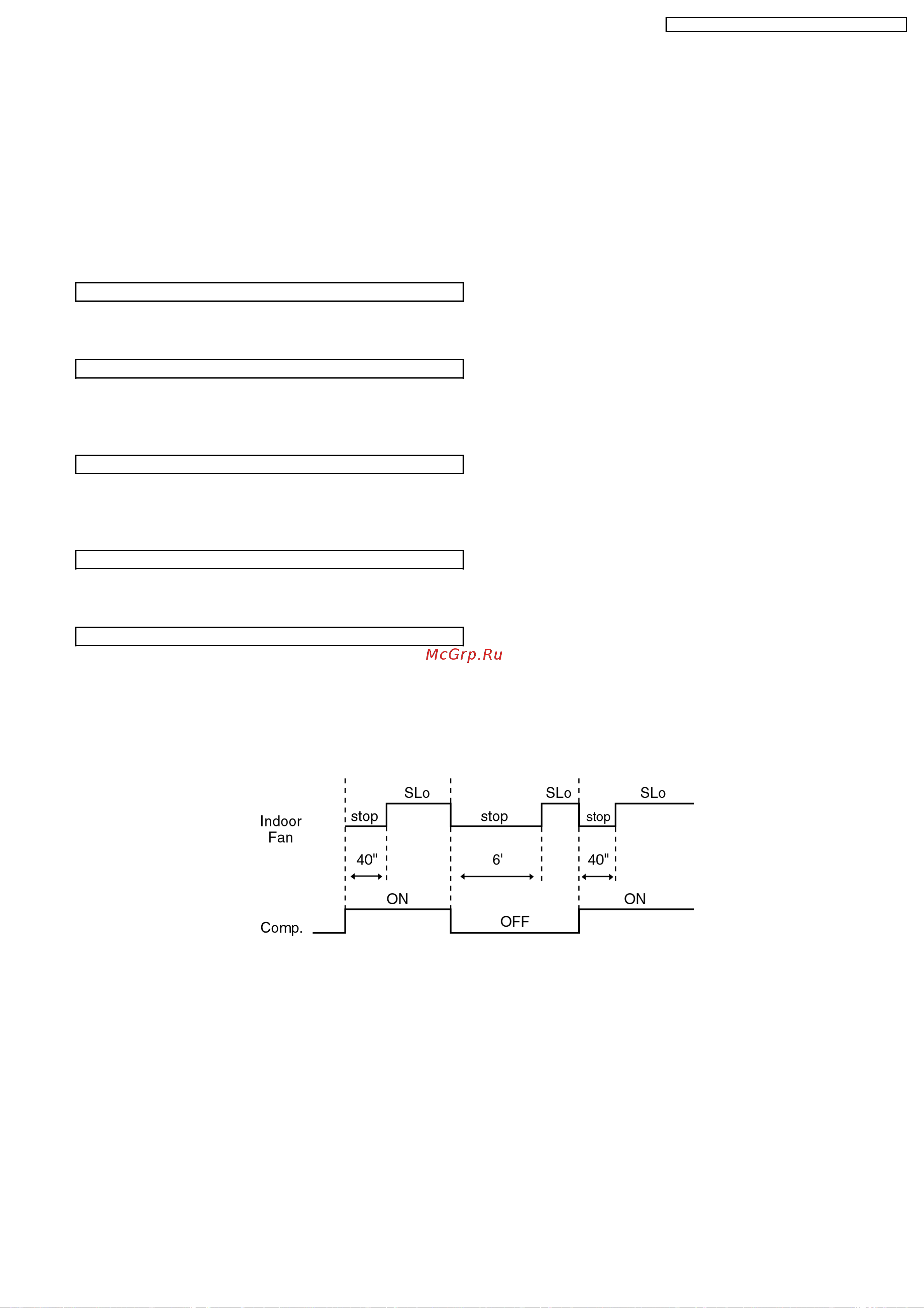

8.2. Soft Dry Mode Operation
•
The unit starts cooling operation until the room temperature reaches the setting temperature set on the Remote Control, and
then Soft Dry operation will start.
•
During Soft Dry operation, the Indoor Fan will operate at SLo speed.
•
Once room temperature reaches below Soft Dry OFF temperature. Indoor Fan, Compressor and Outdoor Fan stop for 6
minutes.
•
Once the compressor stops, it will not start for 3 minutes during Cooling operation.
•
Same as Anti-Freezing Control for Cooling Mode operation. (For Soft Dry region, 6 minutes waiting is valid during compressor
stops.)
•
Same as Compressor Reverse Rotation Protection Control for Cooling Mode Operation. (For Soft Dry region, 6 minutes waiting
is valid during compressor stops.)
•
Same as Anti-Dew Formation Control for Cooling Mode operation.
When Automatic Fan Speed is selected at Remote Control during Soft Dry operation.
•
Fan speed off and on at SLo speed.
•
Deodorizing Control.
19
CS-A18BKP CU-A18BKP5 / CS-A24BKP CU-A24BKP5
