Panasonic CS-A18BKP / CU-A18BKP5 [61/82] Servicing information

1. The Electronic Controller, a Signal Receiver and an

Indicator (Fig. 3) can be seen by the below steps:

•

Open the Intake Grille and remove the screw at the front

of the Front Grille. (Fig. 1).

•

Remove the 3 caps and 3 screws at the bottom of the

Front Grille. (Fig. 1)

•

Remove the Front Grille by releasing the 3 hooks at the

top of the Front Grille. (Fig. 1)

•

Unhook the tabs at the Control Board to remove the

Control Board Cover. (Fig. 2)

2. To remove the Electronic Controllers:

•

Release the 2 Particular Piece. (Fig. 3)

•

Release the CN-REC/DISP connectors. (Fig. 4)

•

Release the CN-TH connector. (Fig. 4)

•

Release the CN-MAIN connector. (Fig. 4)

•

Release the CN-001 connector. (Fig. 4)

•

Release the CN-002 connector. (Fig. 4)

•

Release the CN-STM1 connector. (Fig. 4)

•

Release the CN-STM2 connector. (Fig. 4)

•

Release the hooks that hold the Electronic Controller.

(Fig. 3)

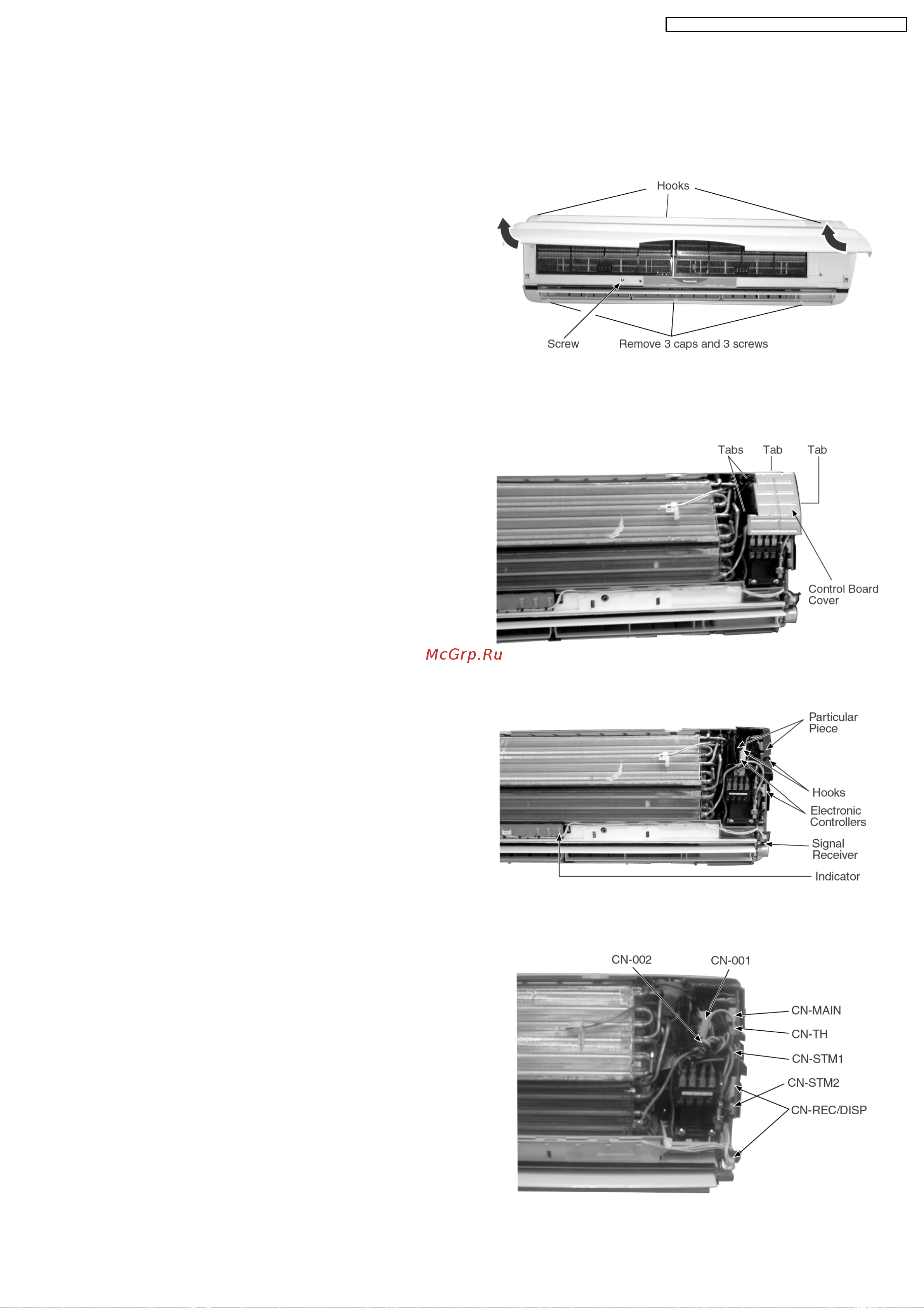

Fig. 1
