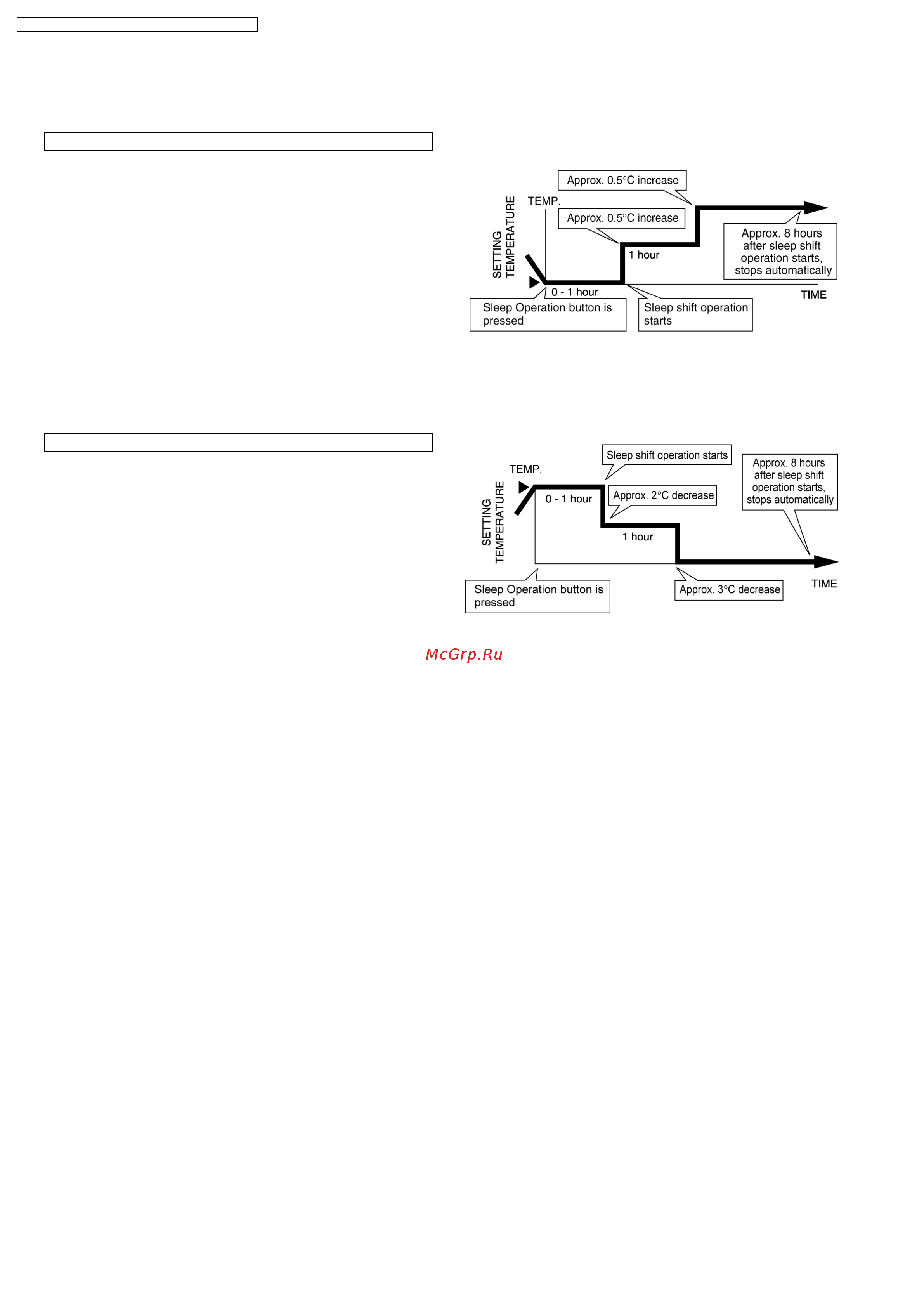

Cooling or Soft Dry Operation
Purpose is to obtain a comfortable room temperature while
sleeping. When you press the SLEEP Mode, the following
movement will start to avoid overcooling.
•
Sleep shift operation starts, when the room temperature
reaches the setting temperature or after 1 hour of operation.
•
The setting temperature will be risen by
0.5
°C at the start of
operation and by
0.5
°C one hour later .
•
The airflow volume will automatically change to Lo fan
speed.
•
Sleep Mode operation time is
8
hours, the operation will be
stop after
8
hour.
•
When used together with the Timer, the Timer has priority.
Heating Operation
Purpose is to obtain a comfortable room temperature while
sleeping. When you press the SLEEP Mode, the following
movement will start to avoid overheating.
•
Sleep shift operation starts, when the room temperature
reaches the setting temperature or after 1 hour of operation.
•
The setting temperature will be decrease by
2
°C at the start
of operation and by
3
°C one hour later.
•
The fan speed refer to Indoor Fan Motor Control.
•
Sleep Mode operation time is
8
hours, the operation will be
stop after
8
hour.
•
When used together with the Timer, the Timer has priority.
8.5. Sleep Mode Auto Operation
8.6. Random Auto Restart Control
•
If there is a power failure, operation will be automatically restarted after 3 to 5 1/2 minutes when the power is resumed.
It will start with previous operation mode and airflow direction.
•
Restart time is decided randomly using 4 parameter:-
Intake air temperature, setting temperature, fan speed and Air Swing Blade position.
•
Auto Restart Control is not available when Timer or Sleep Mode is set.
•
This control can be omitted by open the circuit of JX2. (Refer Circuit Diagram)
