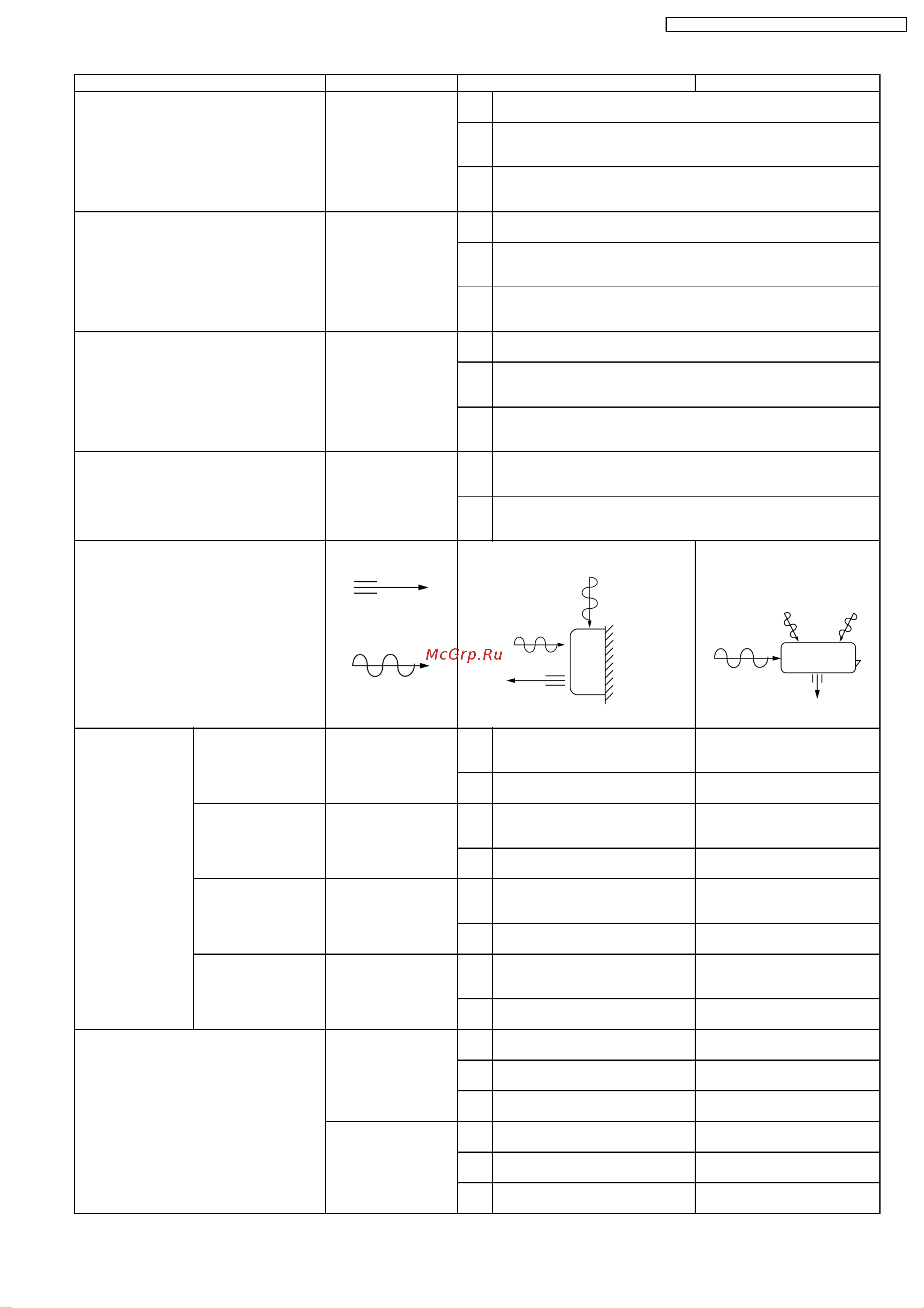

Unit CS-A24BK CU-A24BK
Power Source Phase, Voltage, Cycle (1)
(4)
Single, 230 - 220, 50 Hz
(2) Single, 240 - 230, 50 Hz
(3) Single, 220, 50 Hz
Cooling Capacity kW (BTU/h) (1)
(4)
6.67 - 6.84 (22,700 - 23,300)
(2) 6.67 - 6.67 (22,700 - 22,700)
(3) 6.84 (23,300)
Heating Capacity kW (BTU/h) (1)
(4)
7.72 - 7.85 (26,300 - 26,800)
(2) 7.80 - 7.77 (26,600 - 26,500)
(3) 7.85 (26,800)
Moisture Removal l/h (Pint/h) (1)
(3)
(4)
3.9 (8.2)
(2) 3.8 (8.0)
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m
3
/min (cfm) (1)
(2)
(4)
Cooling; 14.4 (510) - 14.4 (510)
Heating; 15.6 (550) - 15.6 (550)
—
(3) Cooling; 14.4 (510)
Heating; 15.6 (550)
—
Indoor Air (Me) m
3
/min (cfm) (1)
(2)
(4)
Cooling; 16.4 (580) - 16.4 (580)
Heating; 16.4 (580) - 16.4 (580)
—
(3) Cooling; 16.4 (580)
Heating; 16.4 (580)
—
Indoor Air (Hi) m
3
/min (cfm) (1)
(2)
(4)
Cooling; 17.5 (620) - 17.5 (620)
Heating; 18.1 (640) - 18.1 (640)
—
(3) Cooling; 17.5 (620)
Heating; 18.1 (640)
—
Indoor Air (SHi) m
3
/min (cfm) (1)
(2)
(4)
Cooling; 18.1 (640) - 18.1 (640)
Heating; 18.1 (640) - 18.1 (640)
—
(3) Cooling; 18.1 (640)
Heating; 18.1 (640)
—
Noise Level dB (A) (1)
(4)
Cooling; High 47 - 47, Low 41 - 41
Heating; High 46 - 46, Low 41 - 41
Cooling; High 60 - 59
Heating; High 61 - 60
(2) Cooling; High 47 - 47, Low 41 - 41
Heating; High 46 - 46, Low 41 - 41
Cooling; High 61 - 60
Heating; High 62 - 61
(3) Cooling; High 47, Low 41
Heating; High 46, Low 41
Cooling; High 59
Heating; High 60
Power level dB (1) Cooling; 58 - 58
Heating; 57 - 57
Coolling; 73 - 72
Heating; 74 - 73
(2) Cooling; 59 - 59
Heating; 59 - 59
Coolling; 75 - 74
Heating; 78 - 77
(3)
(4)
— —
9
CS-A18BKP CU-A18BKP5 / CS-A24BKP CU-A24BKP5
