Panasonic CU-XE12EKE [10/79] Indoor unit
![Panasonic CU-XE12EKE [10/79] Indoor unit](/views2/1832914/page10/bga.png)
10

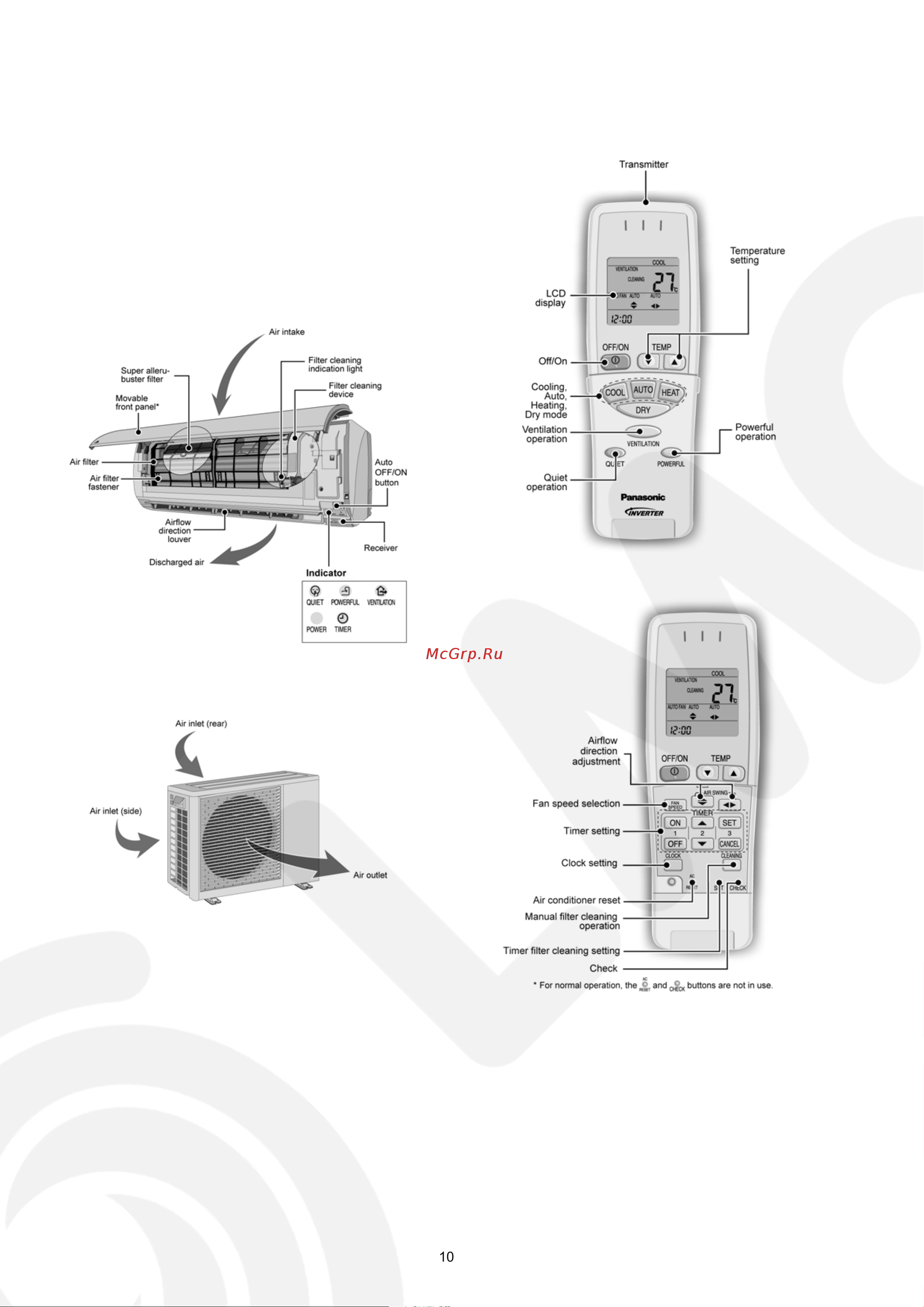

4 Location of Controls and Components
Note:
* Movable front panel will open slightly for air intake purposes
once the air conditioner operation starts. Movable front panel
will remain open during air conditioner operation. It will close
automatically once the air conditioner operation stops. In such
a condition, do not interrupt the movable front panel movement
as this may cause malfunction or unit breakdown. The above
condition does not apply for filter cleaning.
4.1. Indoor Unit
4.2. Outdoor Unit
4.3. Remote Control
