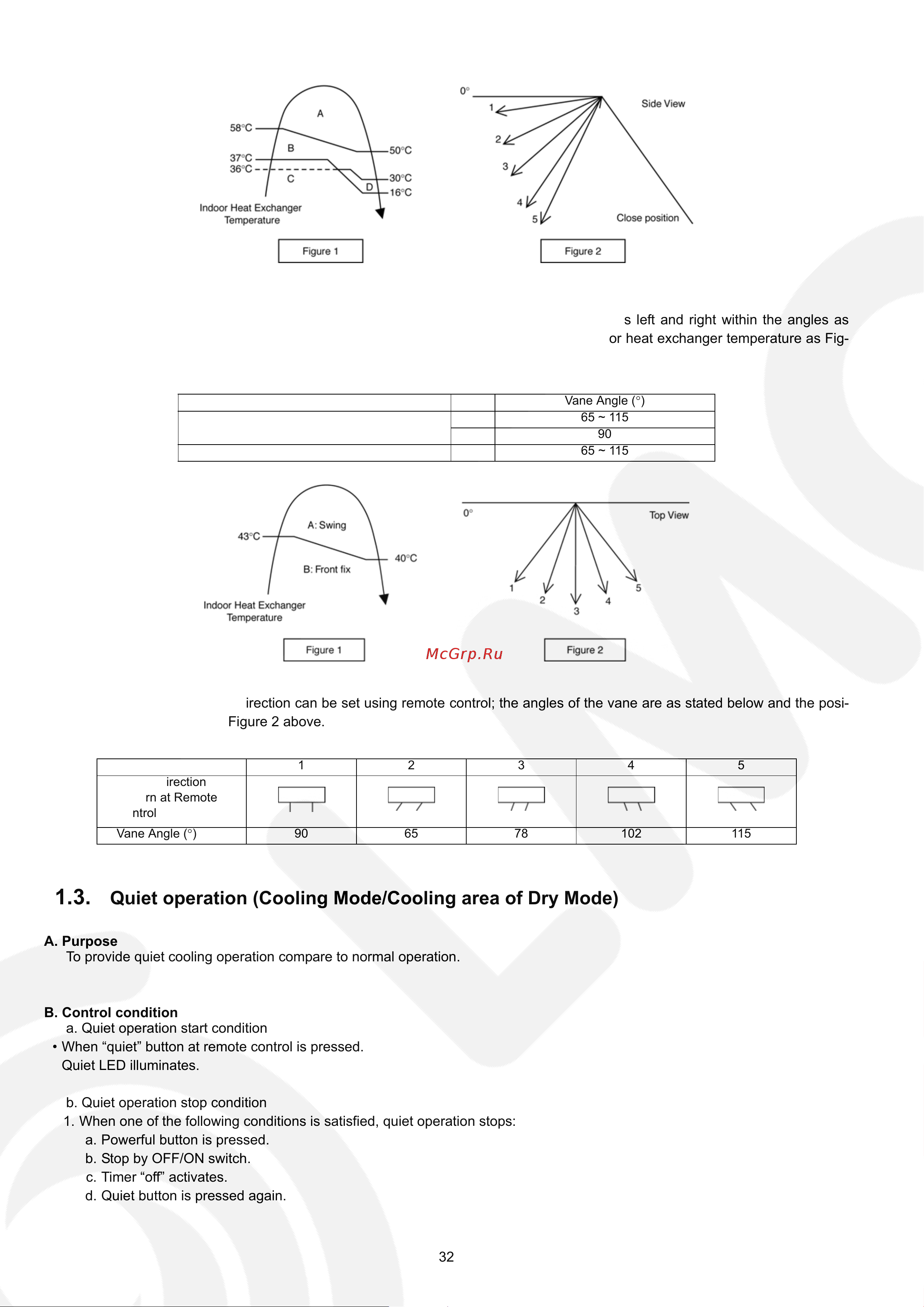

11.2.2. Horizontal Airflow
1. Automatic horizontal airflow direction can be set using remote control; the vane swings left and right within the angles as
stated below. For heating mode operation, the angle of the vane depends on the indoor heat exchanger temperature as Fig-
ure 1 below.
2. Manual horizontal airflow direction can be set using remote control; the angles of the vane are as stated below and the posi-
tions of the vane are as Figure 2 above.
11.3. Quiet operation (Cooling Mode/Cooling area of Dry Mode)
A. Purpose
To provide quiet cooling operation compare to normal operation.
B. Control condition
a. Quiet operation start condition
• When “quiet” button at remote control is pressed.
Quiet LED illuminates.
b. Quiet operation stop condition
1. When one of the following conditions is satisfied, quiet operation stops:
a. Powerful button is pressed.
b. Stop by OFF/ON switch.
c. Timer “off” activates.
d. Quiet button is pressed again.
Operation Mode Vane Angle (q)
Heating, with heat exchanger temperature A 65 ~ 115
B90
Cooling, Soft Dry and Ion 65 ~ 115
Pattern 12345
Airflow Direction
Pattern at Remote
Control
Vane Angle (q) 90 65 78 102 115
