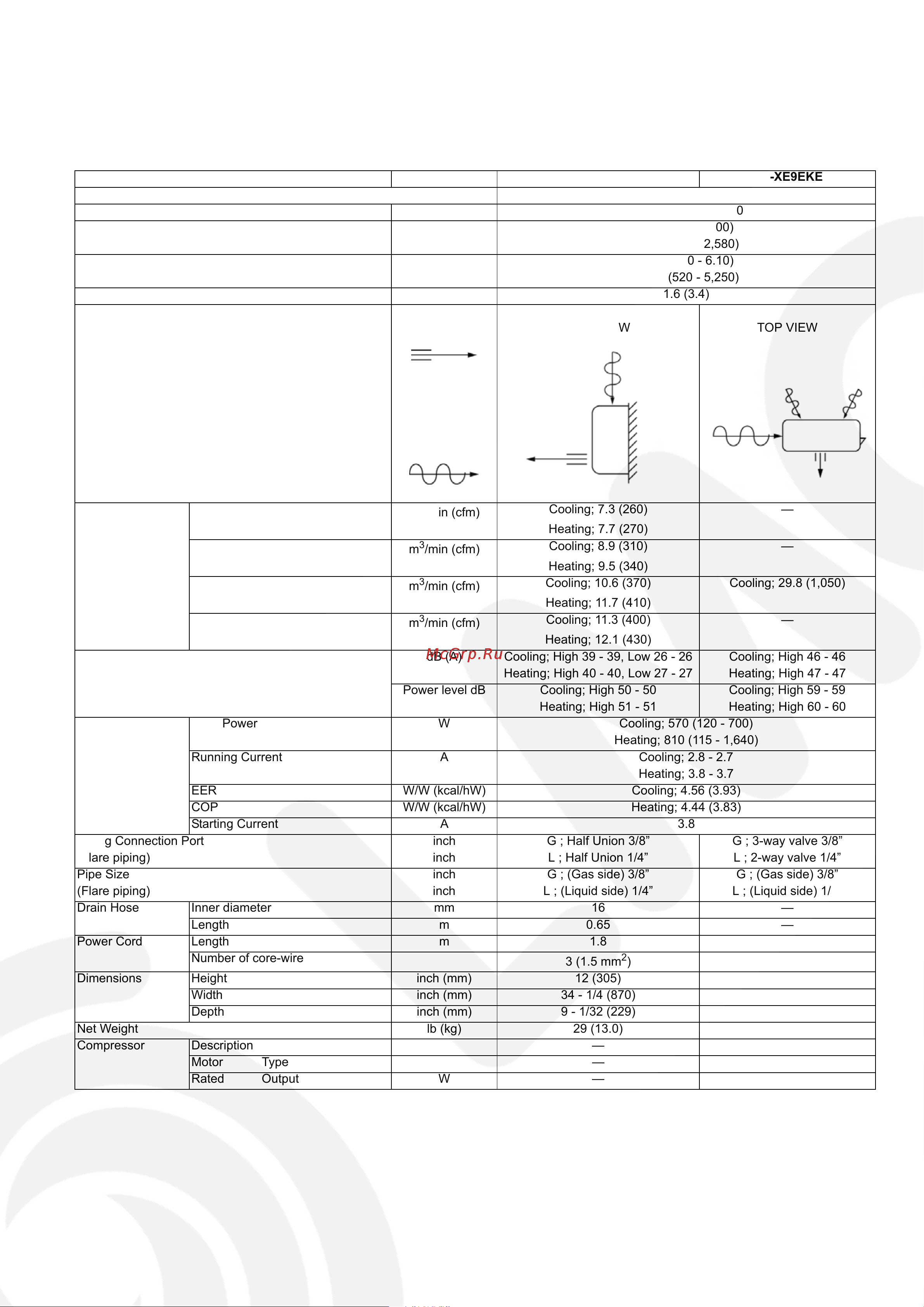

2 Specifications
2.1. CS-XE9EKE CU-XE9EKE
Unit CS-XE9EKE CU-XE9EKE
Performance Test Condition EUROVENT/AS
Power Source (Phase, Voltage, Cycle) ø, V, Hz Single, 230 - 240, 50
Cooling Capacity kW 2.60 (0.60 - 3.00)
kcal/h 2,240 (520 - 2,580)
Heating Capacity kW 3.60 (0.60 - 6.10)
kcal/h 3,100 (520 - 5,250)
Moisture Removal l/h (Pint/h) 1.6 (3.4)
Airflow Method OUTLET SIDE VIEW TOP VIEW
INTAKE
Air Volume Lo
m
3
/min (cfm)
Cooling; 7.3 (260) —
Heating; 7.7 (270)
Me
m
3
/min (cfm)
Cooling; 8.9 (310) —
Heating; 9.5 (340)
Hi
m
3
/min (cfm)
Cooling; 10.6 (370) Cooling; 29.8 (1,050)
Heating; 11.7 (410)
SHi
m
3
/min (cfm)
Cooling; 11.3 (400) —
Heating; 12.1 (430)
Noise Level dB (A) Cooling; High 39 - 39, Low 26 - 26 Cooling; High 46 - 46
Heating; High 40 - 40, Low 27 - 27 Heating; High 47 - 47
Power level dB Cooling; High 50 - 50 Cooling; High 59 - 59
Heating; High 51 - 51 Heating; High 60 - 60
Electrical Data Input Power W Cooling; 570 (120 - 700)
Heating; 810 (115 - 1,640)
Running Current A Cooling; 2.8 - 2.7
Heating; 3.8 - 3.7
EER W/W (kcal/hW) Cooling; 4.56 (3.93)
COP W/W (kcal/hW) Heating; 4.44 (3.83)
Starting Current A 3.8
Piping Connection Port inch G ; Half Union 3/8” G ; 3-way valve 3/8”
(Flare piping) inch L ; Half Union 1/4” L ; 2-way valve 1/4”
Pipe Size inch G ; (Gas side) 3/8” G ; (Gas side) 3/8”
(Flare piping) inch L ; (Liquid side) 1/4” L ; (Liquid side) 1/4”
Drain Hose Inner diameter mm 16 —
Length m 0.65 —
Power Cord Length m 1.8 —
Number of core-wire
3 (1.5 mm
2
)
—
Dimensions Height inch (mm) 12 (305) 21 - 1/4 (540)
Width inch (mm) 34 - 1/4 (870) 30 - 23/32 (780)
Depth inch (mm) 9 - 1/32 (229) 11 - 3/8 (289)
Net Weight lb (kg) 29 (13.0) 82 (37)
Compressor Description — Hermetic Scroll
Motor Type — Brushless (4-poles)
Rated Output W — 750
