27

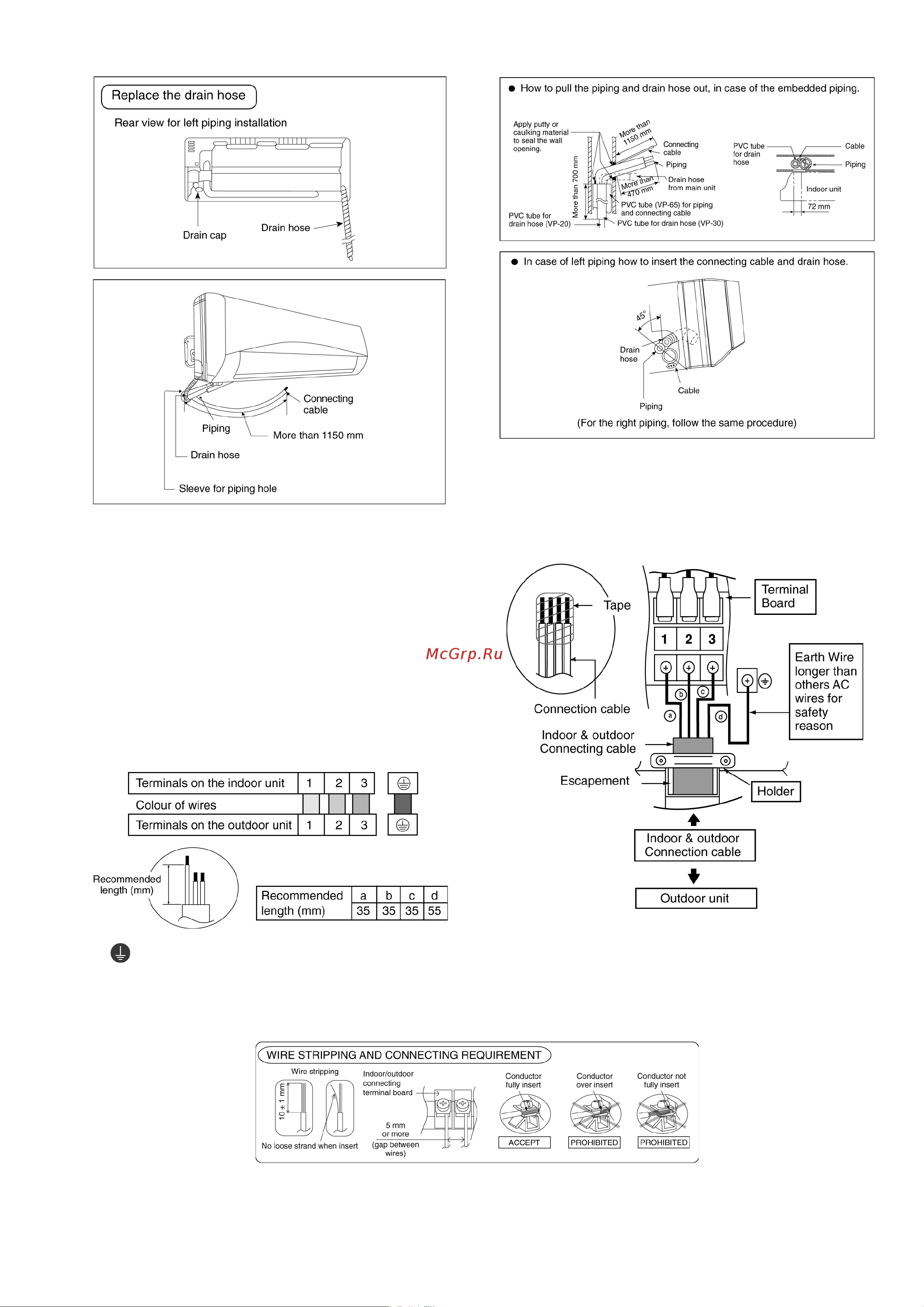

11.2.4. Connect the Cable to the Indoor Unit
1. The inside and outside connecting cable can be
connected without removing the front grille.
2. Connecting cable between indoor unit and outdoor unit
shall be approved polychloroprene sheathed 4 x 1.5 mm
2
flexible cord, type designation 245 IEC 57 or heavier
cord.
3. Bind all the indoor and outdoor connecting cable with
tape and route the connecting cable via the escapement.
4. Remove the tapes and connect the connecting cable
between indoor unit and outdoor unit according to the
diagram below.
This equipment must be properly earthed.
5. Secure the connecting cable onto the control board with the holder (clamper).
• Ensure the colour of wires of outdoor unit and the terminal Nos. are the same to the indoor’s respectively.
• Earth wire shall be Yellow/Green (Y/G) in colour and longer than other AC wires for safety reason.
