Panasonic CS-CE9LKE / CU-CE9LKE [63/85] 8 f95 cooling high pressure abnormality
![Panasonic CS-CE9LKE / CU-CE9LKE [63/85] 8 f95 cooling high pressure abnormality](/views2/1833328/page63/bg3f.png)
63
15.4.18. F95 (Cooling High Pressure Abnormality)
Malfunction Decision Conditions
During operation of cooling, when outdoor unit heat exchanger high temperature data (61°C) is detected by the outdoor pipe
temperature sensor.
Malfunction Caused
• Air short circuit at indoor unit
• Dust accumulation on the indoor unit heat exchanger
• 2/3 way valve closed
• Faulty outdoor unit fan motor
• Excessive refrigerant
• Clogged expansion valve or strainer
• Faulty outdoor pipe temperature sensor
• Faulty outdoor unit PCB

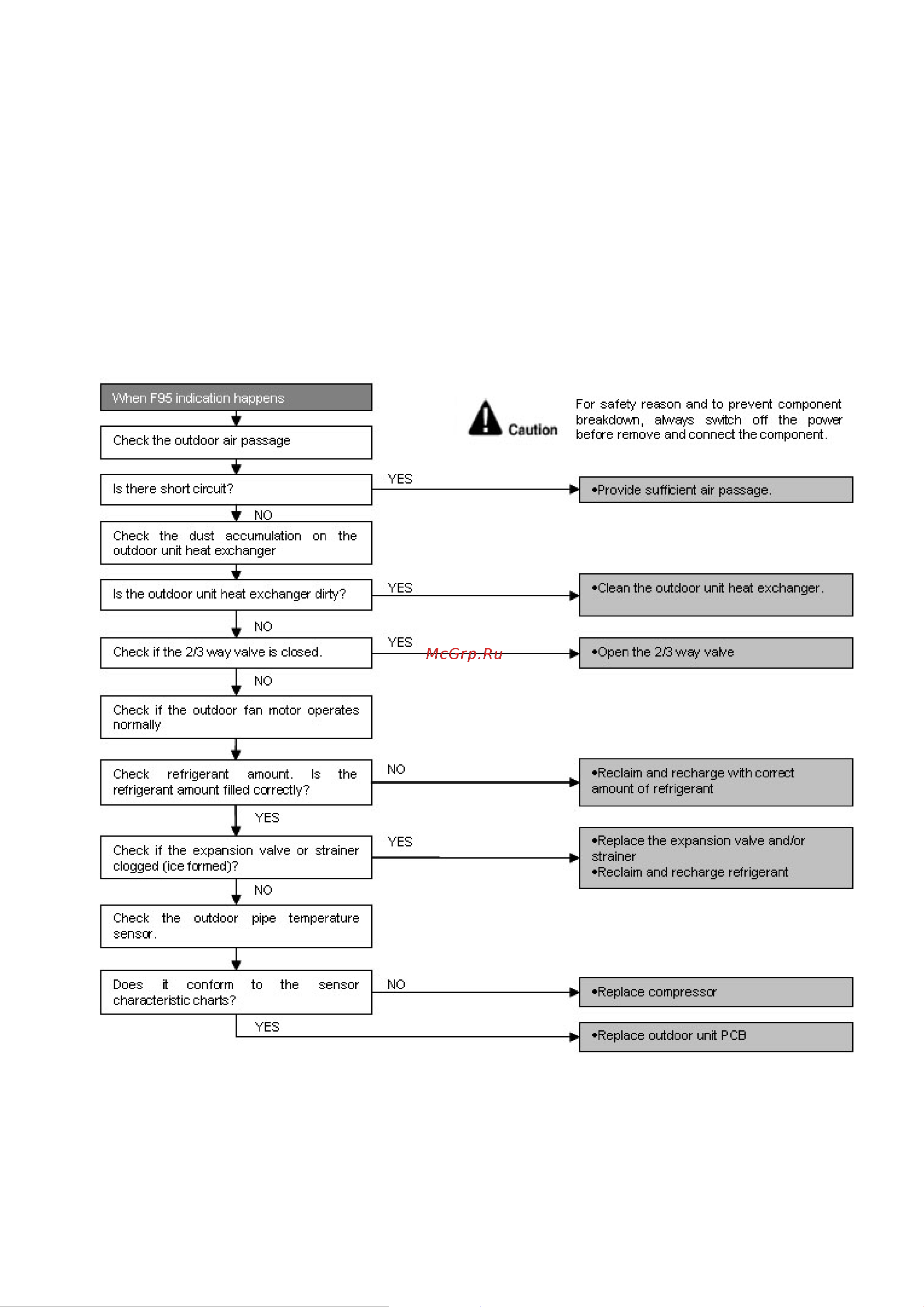

Troubleshooting
