Panasonic CS-CE9LKE / CU-CE9LKE [62/85] 7 f93 compressor rotation failure
![Panasonic CS-CE9LKE / CU-CE9LKE [62/85] 7 f93 compressor rotation failure](/views2/1833328/page62/bg3e.png)
62
15.4.17. F93 (Compressor Rotation Failure)
Malfunction Decision Conditions
A compressor rotation failure is detected by checking the compressor running condition through the position detection circuit.
Malfunction Caused
• Compressor terminal disconnect
• Faulty Outdoor PCB
• Faulty compressor

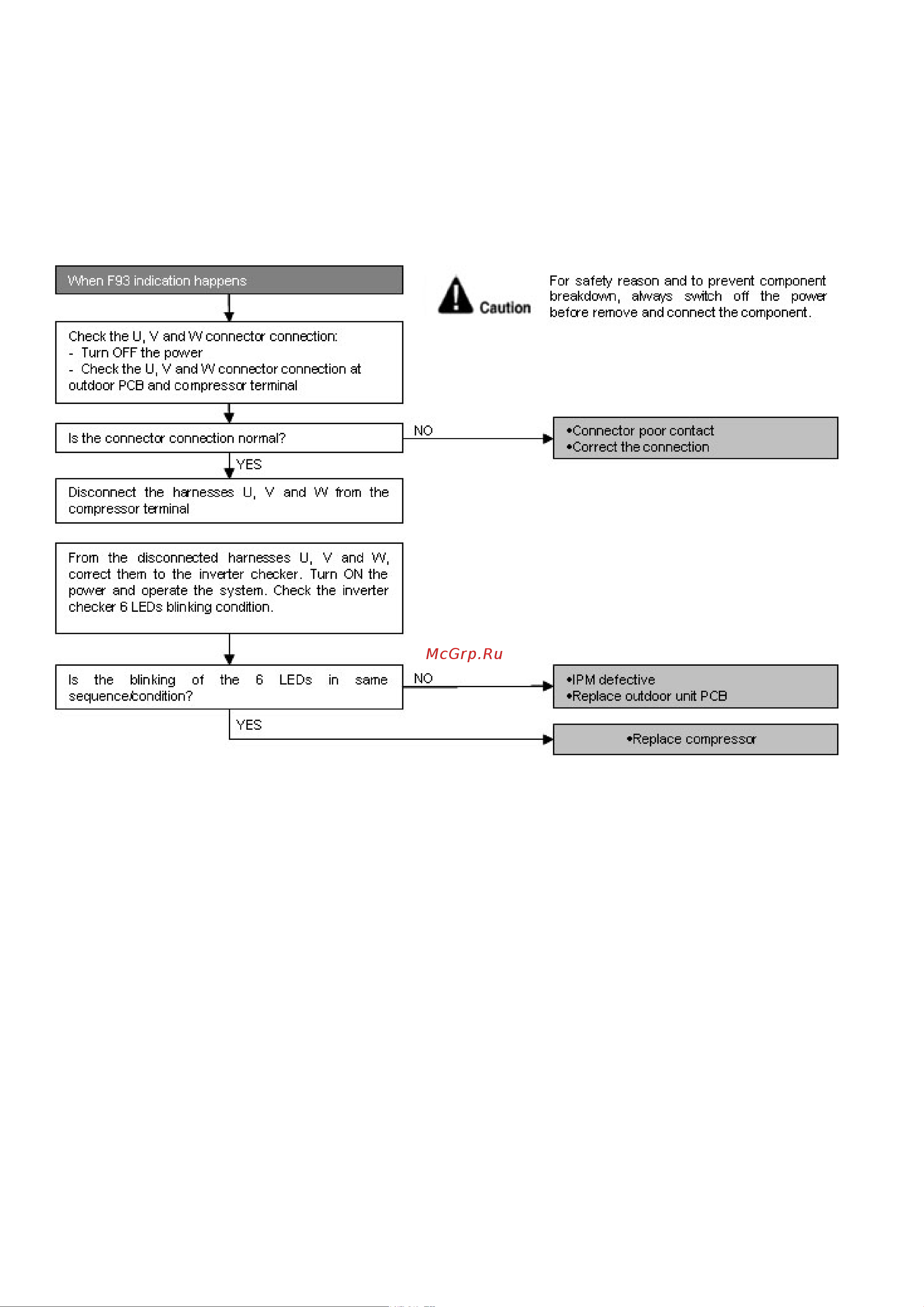

Troubleshooting
