Panasonic CS-CE9LKE / CU-CE9LKE [65/85] 0 f97 compressor overheating
![Panasonic CS-CE9LKE / CU-CE9LKE [65/85] 0 f97 compressor overheating](/views2/1833328/page65/bg41.png)
65
15.4.20. F97 (Compressor Overheating)
Malfunction Decision Conditions
During operation of cooling and heating, when compressor tank temperature data (112°C) is detected by the compressor tank
temperature sensor.
Malfunction Caused
• Faulty compressor tank temperature sensor
• 2/3 way valve closed
• Refrigerant shortage (refrigerant leakage)
• Faulty outdoor unit PCB
• Faulty compressor

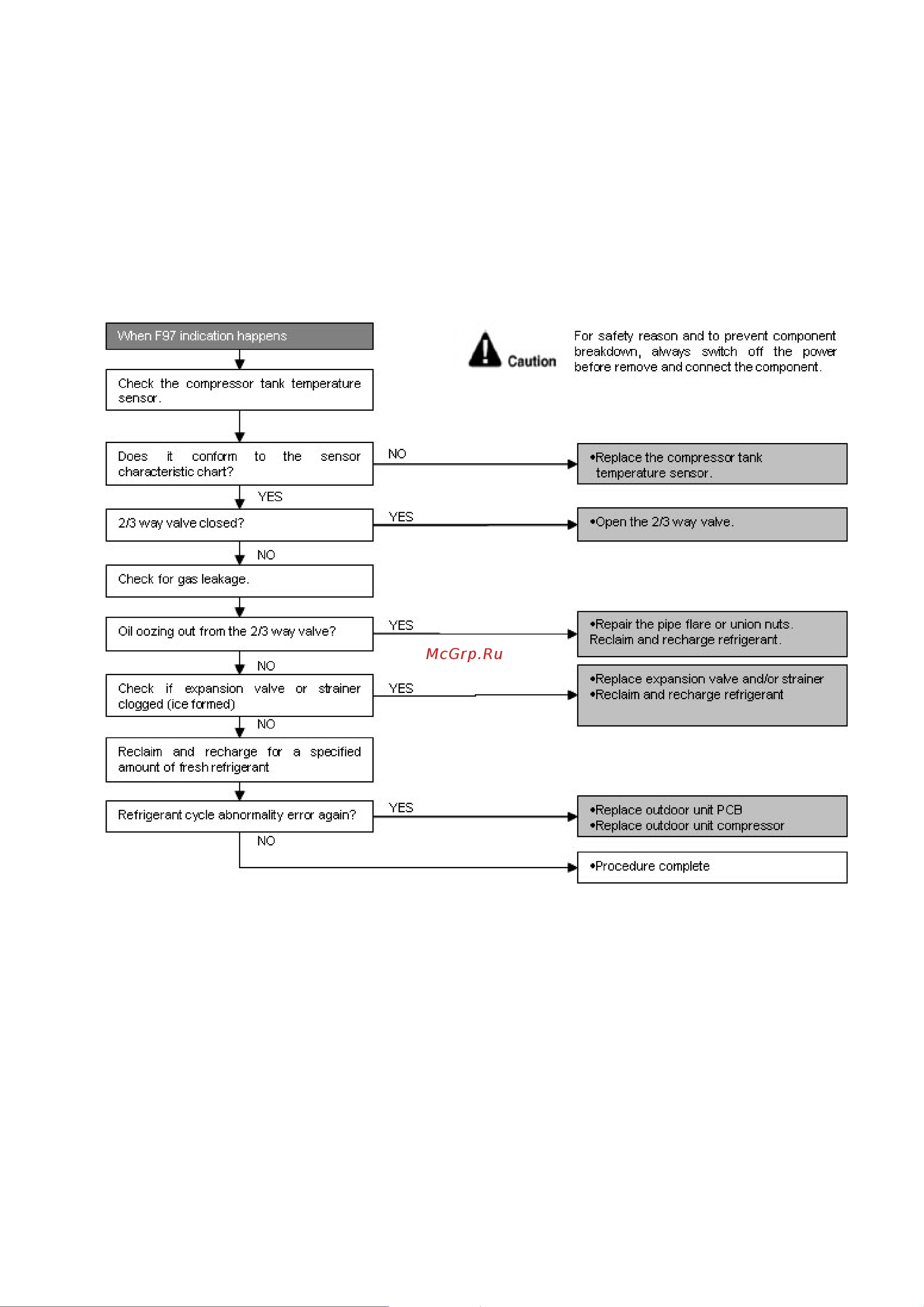

Troubleshooting
