Panasonic CS-CE9LKE / CU-CE9LKE [53/85] H28 outdoor pipe temperature sensor abnormality
![Panasonic CS-CE9LKE / CU-CE9LKE [53/85] H28 outdoor pipe temperature sensor abnormality](/views2/1833328/page53/bg35.png)
53

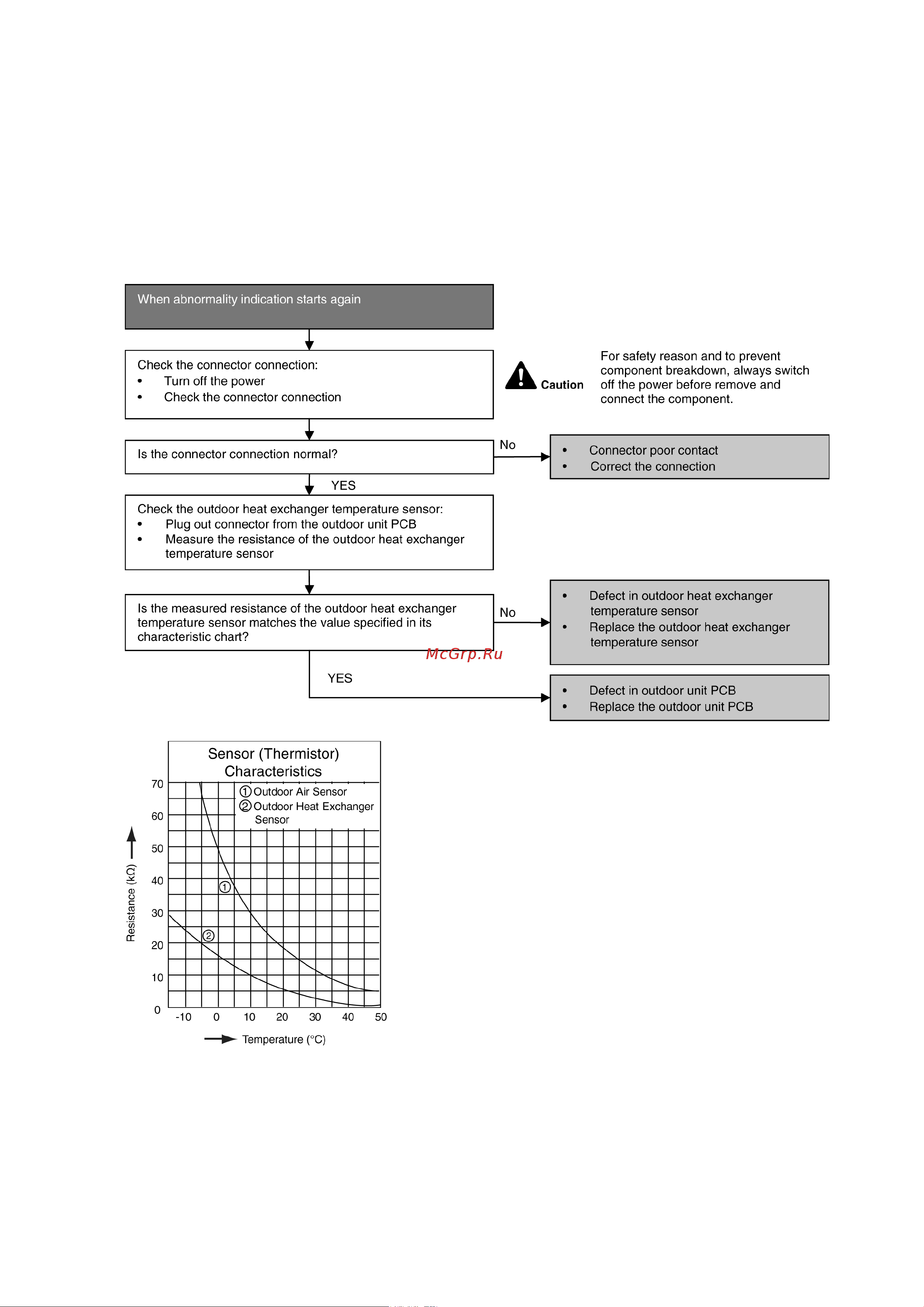

15.4.8. H28 (Outdoor Pipe Temperature Sensor Abnormality)
Malfunction Decision Conditions
During startup and operation of cooling and heating, the temperatures detected by the outdoor pipe temperature sensor are
used to determine sensor errors.
Malfunction Caused
• Faulty connector connection.
• Faulty sensor.
•Faulty PCB.
Troubleshooting
