Panasonic CU-NE9MKE [59/96] H23 indoor pipe temperature sensor 1 abnormality
![Panasonic CU-NE9MKE [59/96] H23 indoor pipe temperature sensor 1 abnormality](/views2/1833694/page59/bg3b.png)
59
15.4.6. H23 (Indoor Pipe Temperature Sensor 1 Abnormality)
Malfunction Decision Conditions
During startup and operation of cooling and heating, the temperatures detected by the indoor heat exchanger temperature
sensor 1 are used to determine sensor errors.
Malfunction Caused
• Faulty connector connection.
• Faulty sensor.
•Faulty PCB.

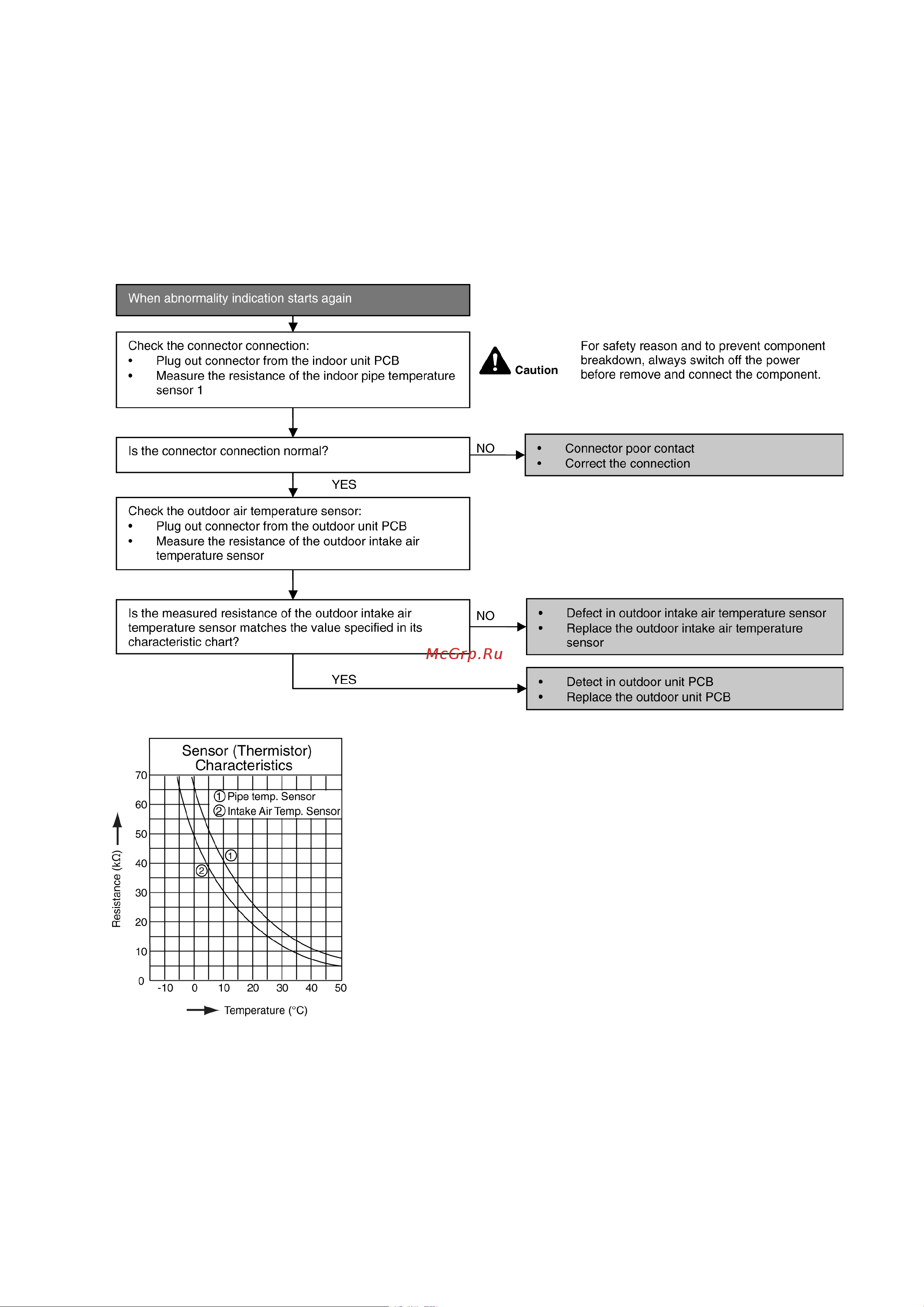

Troubleshooting
