Panasonic CU-E28EKES [45/77] Indication panel

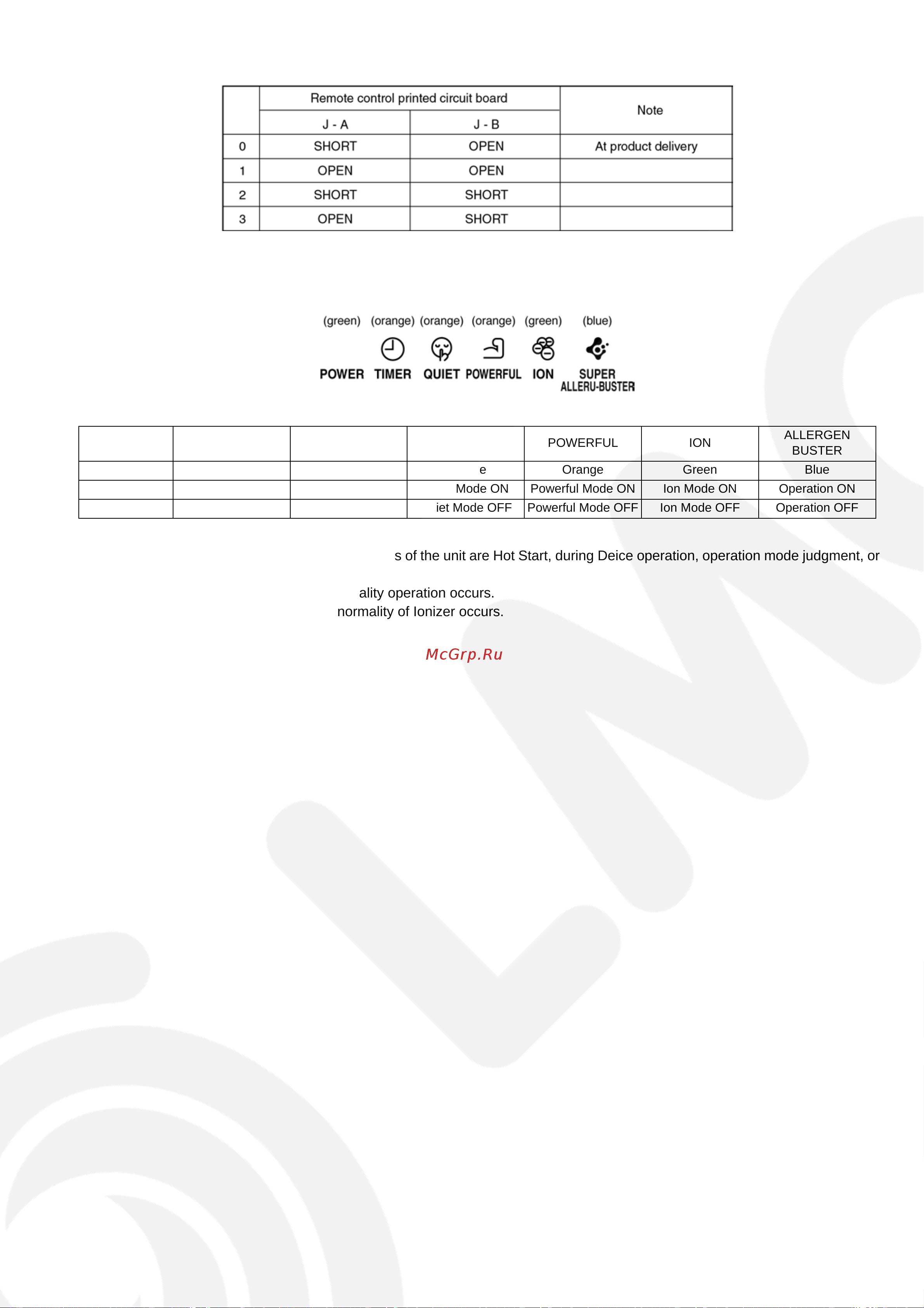

13.3. Indication Panel

Note:

• If POWER LED is blinking, the possible operations of the unit are Hot Start, during Deice operation, operation mode judgment, or

delay ON timer sampling.

• If Timer LED is blinking, there is an abnormality operation occurs.

• If Ionizer, LED is blinking, there is an abnormality of Ionizer occurs.

LED POWER TIMER QUIET POWERFUL ION

ALLERGEN

BUSTER

Color Green Orange Orange Orange Green Blue

Light ON Operation ON Timer Setting ON Quiet Mode ON Powerful Mode ON Ion Mode ON Operation ON

Light OFF Operation OFF Timer Setting OFF Quiet Mode OFF Powerful Mode OFF Ion Mode OFF Operation OFF
