Panasonic CU-E28EKES [62/77] Cs e28eke cu e28eke

16.1.2. CS-E28EKE CU-E28EKE

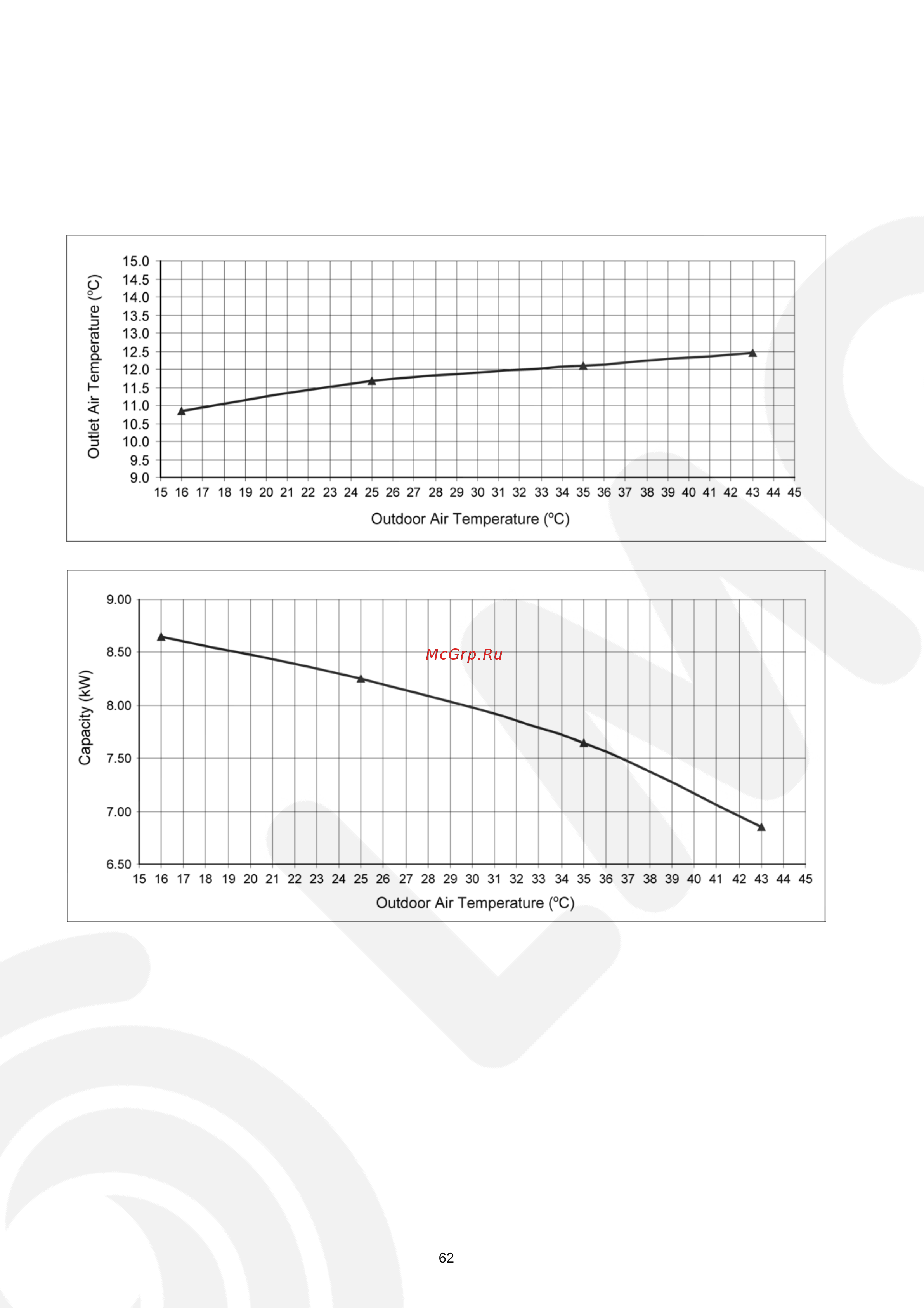

Cooling Characteristic at Different Outdoor Air Temperature

Condition

Indoor room temperature: 27/19 °C

Remote control setting: HI fan, COOL 16 °C

Compressor frequency: Rated cooling

Voltage: 230 V
