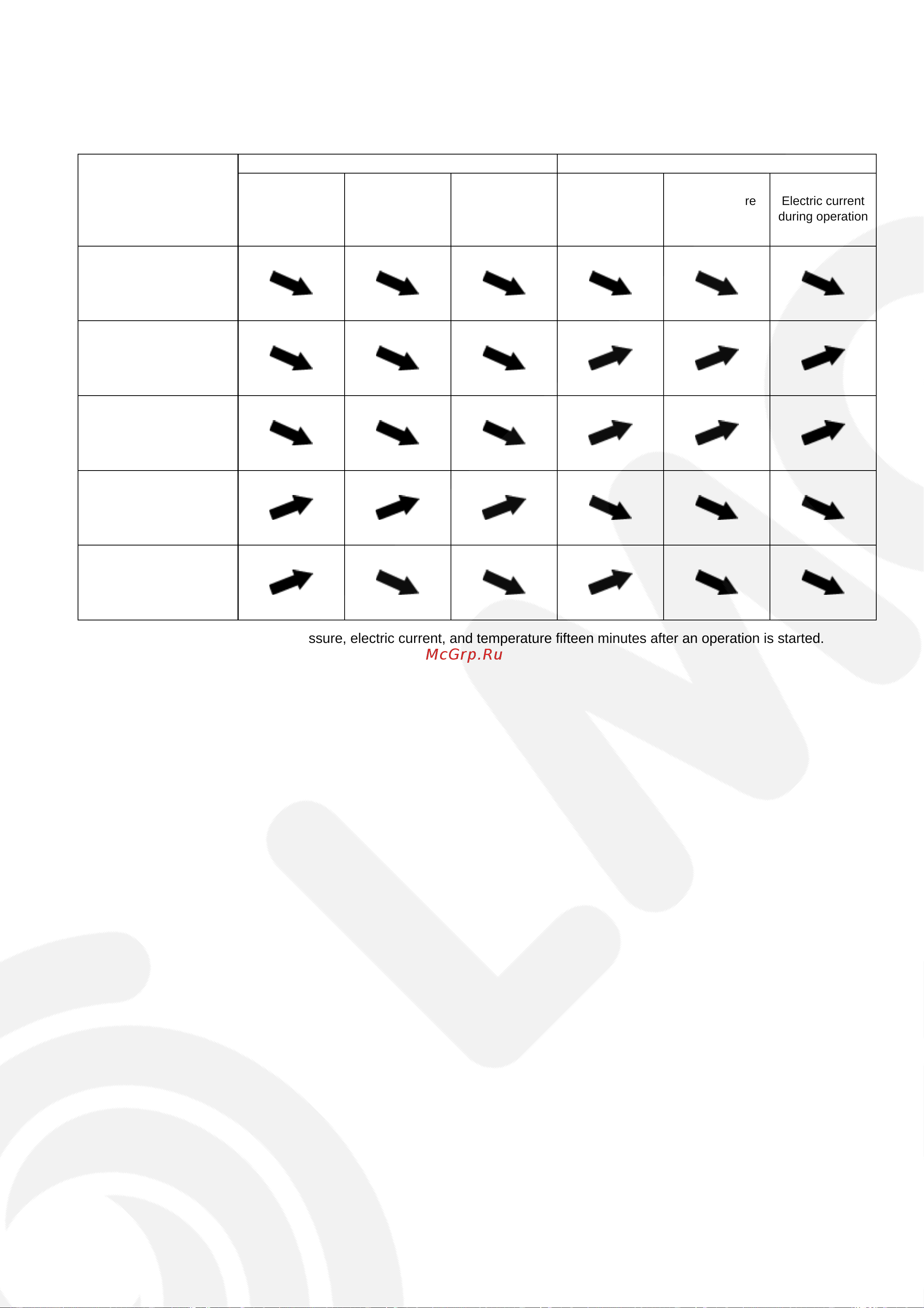

14.2. Relationship Between The Condition Of The Air Conditioner And

Pressure And Electric Current

• Carry out the measurements of pressure, electric current, and temperature fifteen minutes after an operation is started.

Cooling Mode Heating Mode

Condition of the

air conditoner Low Pressure High Pressure Electric current

during operation

Low Pressure High Pressure Electric current

during operation

Insufficient refrigerant

(gas leakage)

Clogged capillary tube or

Strainer

Short circuit in the indoor

unit

Heat radiation deficiency of

the outdoor unit

Inefficient compression
