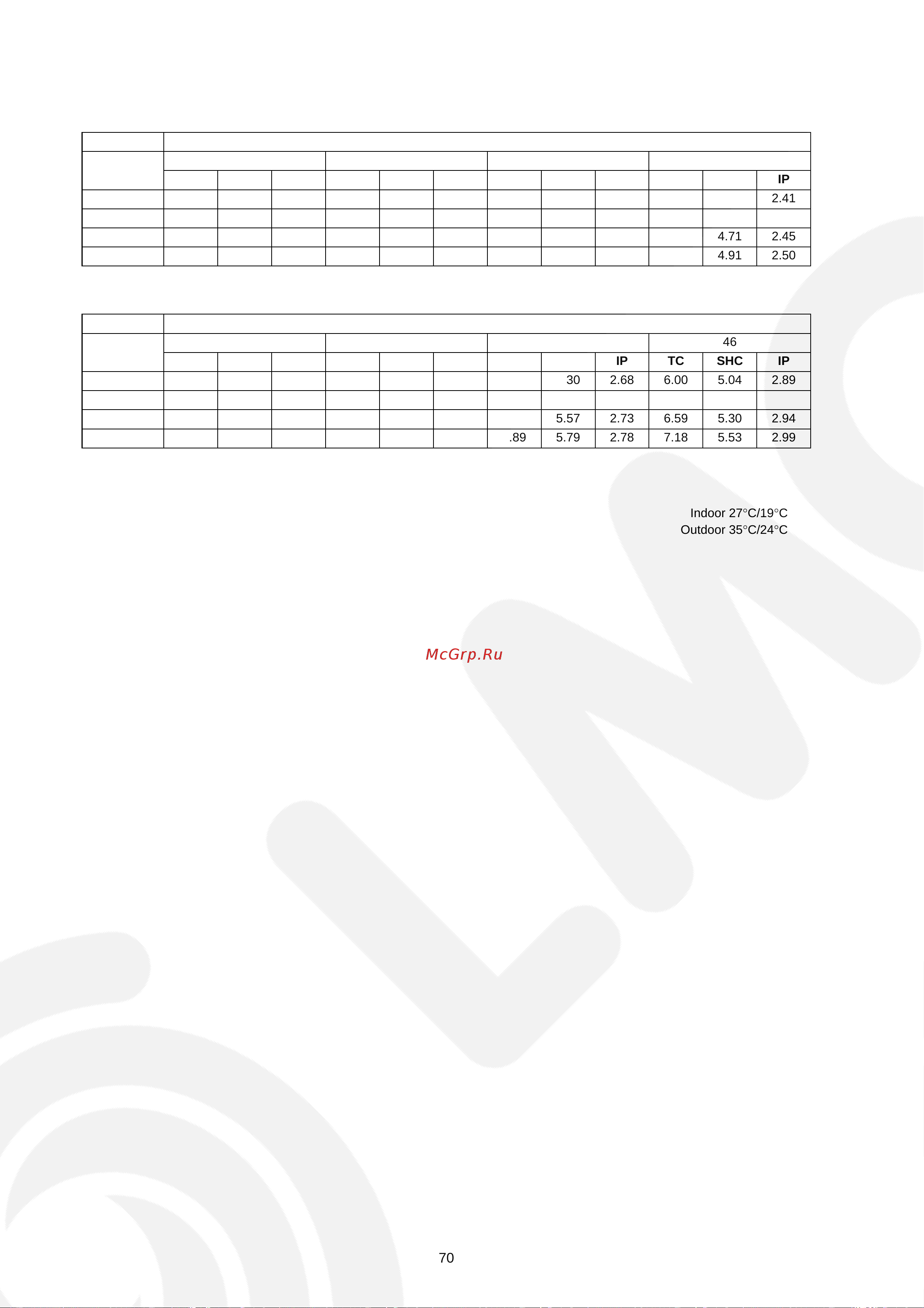

Panasonic CU-E28EKES [70/77] Sensible capacity chart

16.2. Sensible Capacity Chart

● CS-E24EKES CU-E24EKE

● CS-E28EKE CU-E28EKE

Outdoor Temp. (°C)

Indoor wet

bulb temp.

30 35 40 46

TC SHC IP TC SHC IP TC SHC IP TC SHC IP

17.0°C 6.75 5.11 1.94 6.30 4.90 2.09 5.86 4.71 2.23 5.33 4.48 2.41

19.0°C 6.80 2.12

19.5°C 7.41 5.35 1.98 6.92 5.14 2.13 6.44 4.95 2.28 5.85 4.71 2.45

22.0°C 8.07 5.55 2.01 7.54 5.34 2.17 7.02 5.15 2.32 6.38 4.91 2.50

Outdoor Temp. (°C)

Indoor wet

bulb temp.

30 35 40 46

TC SHC IP TC SHC IP TC SHC IP TC SHC IP

17.0°C 7.59 5.75 2.33 7.09 5.52 2.50 6.59 5.30 2.68 6.00 5.04 2.89

19.0°C 7.65 2.54

19.5°C 8.33 6.02 2.37 7.79 5.79 2.55 7.24 5.57 2.73 6.59 5.30 2.94

22.0°C 9.08 6.25 2.41 8.48 6.01 2.60 7.89 5.79 2.78 7.18 5.53 2.99

TC - Total Cooling Capacity (kW) Indoor 27°C/19°C

SHC - Sensible Heat Capacity (kW) Outdoor 35°C/24°C

IP - Input Power (kW)
