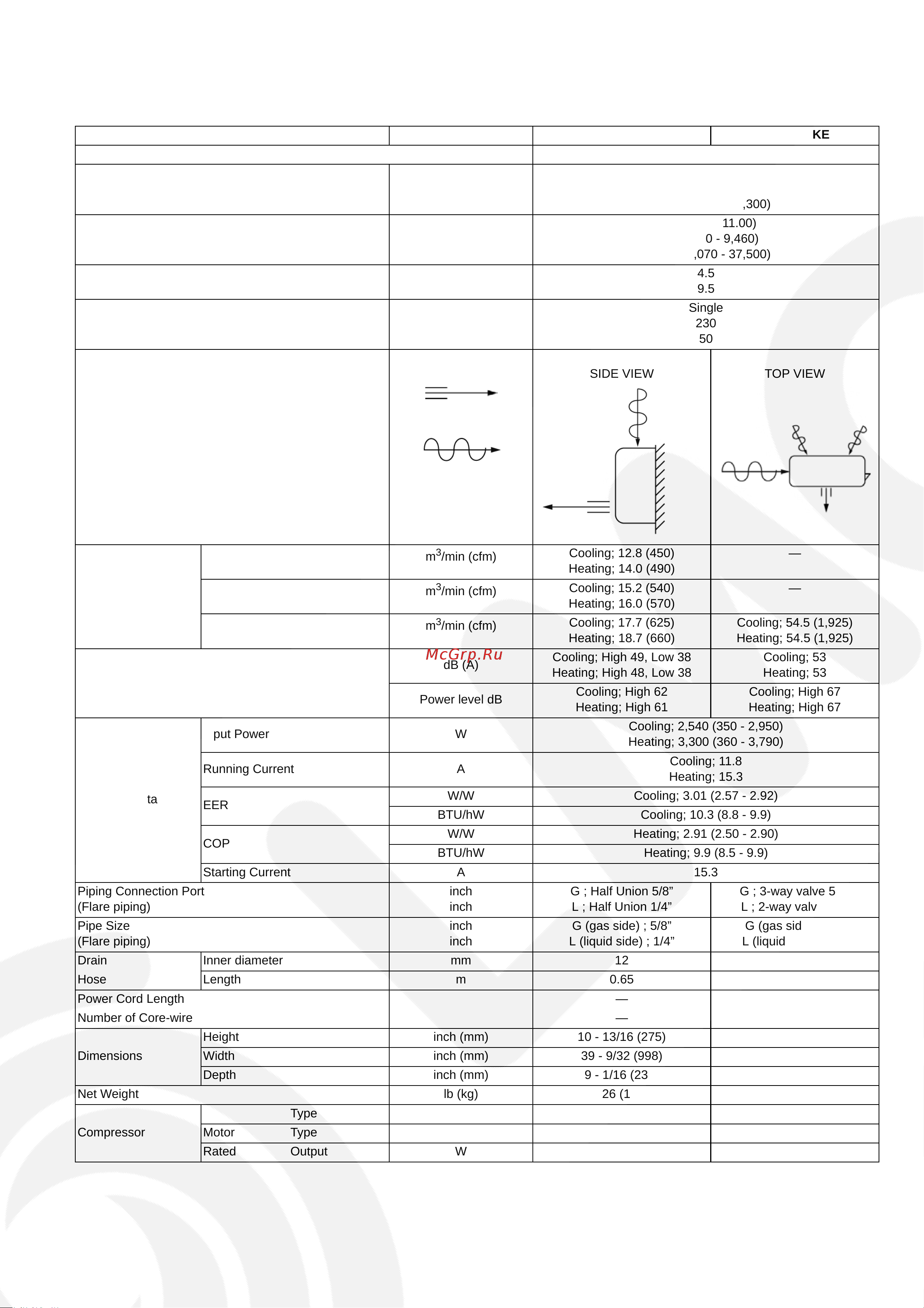

2.2. CS-E28EKE CU-E28EKE
Unit CS-E28EKE CU-E28EKE
Performance Test Condition EUROVENT
Cooling Capacity
kW
kcal/h
BTU/h
7.65 (0.90 - 8.60)
6,580 (770 - 7,400)
26,100 (3,070 - 29,300)
Heating Capacity
kW
kcal/h
BTU/h
9.60 (0.90 - 11.00)
8,260 (770 - 9,460)
32,700 (3,070 - 37,500)
Moisture Removal
l/h
Pint/h
4.5
9.5
Power Source (Phase, Voltage, Cycle)
ø
V
Hz
Single
230
50
Airflow Method
OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume
Lo
m
3
/min (cfm)
Cooling; 12.8 (450)
Heating; 14.0 (490)
—
Me
m
3
/min (cfm)
Cooling; 15.2 (540)
Heating; 16.0 (570)
—
Hi
m
3
/min (cfm)
Cooling; 17.7 (625)
Heating; 18.7 (660)
Cooling; 54.5 (1,925)
Heating; 54.5 (1,925)
Noise Level
dB (A)
Cooling; High 49, Low 38
Heating; High 48, Low 38
Cooling; 53
Heating; 53
Power level dB
Cooling; High 62
Heating; High 61
Cooling; High 67
Heating; High 67
Electrical Data
Input Power W
Cooling; 2,540 (350 - 2,950)
Heating; 3,300 (360 - 3,790)
Running Current A
Cooling; 11.8
Heating; 15.3
EER
W/W Cooling; 3.01 (2.57 - 2.92)
BTU/hW Cooling; 10.3 (8.8 - 9.9)
COP
W/W Heating; 2.91 (2.50 - 2.90)
BTU/hW Heating; 9.9 (8.5 - 9.9)
Starting Current A 15.3
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 5/8”
L ; Half Union 1/4”
G ; 3-way valve 5/8”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G (gas side) ; 5/8”
L (liquid side) ; 1/4”
G (gas side) ; 5/8”
L (liquid side) ; 1/4”
Drain Inner diameter mm 12 —
Hose Length m 0.65 —
Power Cord Length ——
Number of Core-wire ——
Dimensions
Height inch (mm) 10 - 13/16 (275) 31 - 5/16 (795)
Width inch (mm) 39 - 9/32 (998) 35 - 7/16 (900)
Depth inch (mm) 9 - 1/16 (230) 12 - 19/32 (320)
Net Weight lb (kg) 26 (12) 159 (72.0)
Compressor
Type — Hermetic Rotary
Motor Type — DC Brushless (4-pole)
Rated Output W — 1,700
