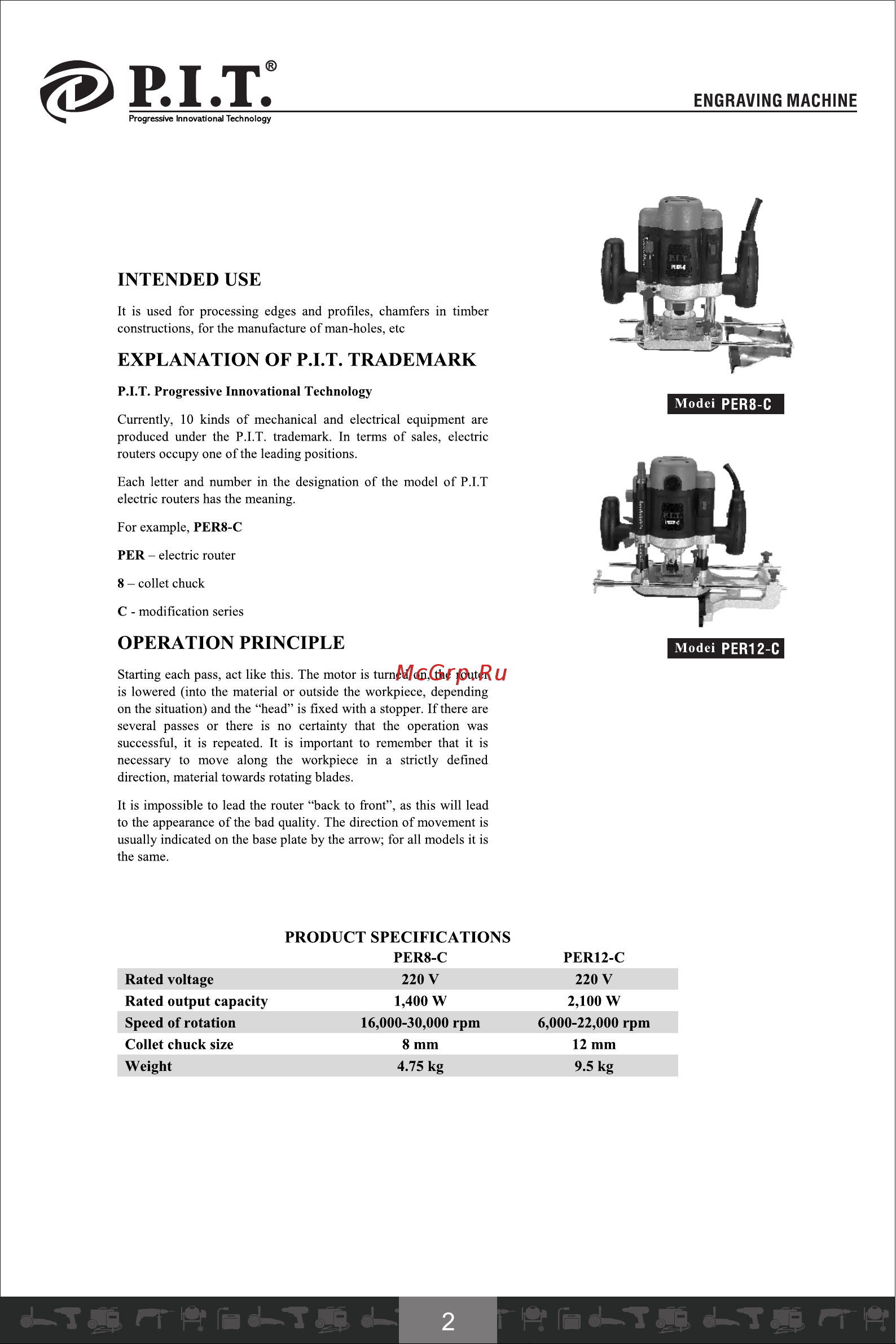

ENGRAVING MACHINE INTENDED USE It is used for processing edges and profiles chamfers in timber constructions for the manufacture of man holes etc EXPLANATION OF P I T TRADEMARK P I T Progressive Innovational Technology Currently 10 kinds of mechanical and electrical equipment arc produced under the P I T trademark In terms of sales electric routers occupy one of the leading positions Each letter and number in the designation of the model of P I T electric routers has the meaning For example PER8 C PER electric router 8 collet chuck C modification series OPERATION PRINCIPLE Starting each pass act like this The motor is turned on the router is lowered into the material or outside the workpiece depending on the situation and the head is fixed with a stopper If there arc several passes or there is no certainty that the operation was successful it is repeated It is important to remember that it is necessary to move along the workpiece in a strictly defined direction material towards rotating blades It is impossible to lead the router back to front as this will lead to the appearance of the bad quality The direction of movement is usually indicated on the base plate by the arrow for all models it is the same PRODUCT SPECIFICATIONS Rated voltage Rated output capacity Speed of rotation Collet chuck size Weight PER8 C 220 V 1 400 W PER12 C 220 V 2 100 W 16 000 30 000 rpm 8 mm 4 75 kg 6 000 22 000 rpm 12 mm 2 9 5 kg
