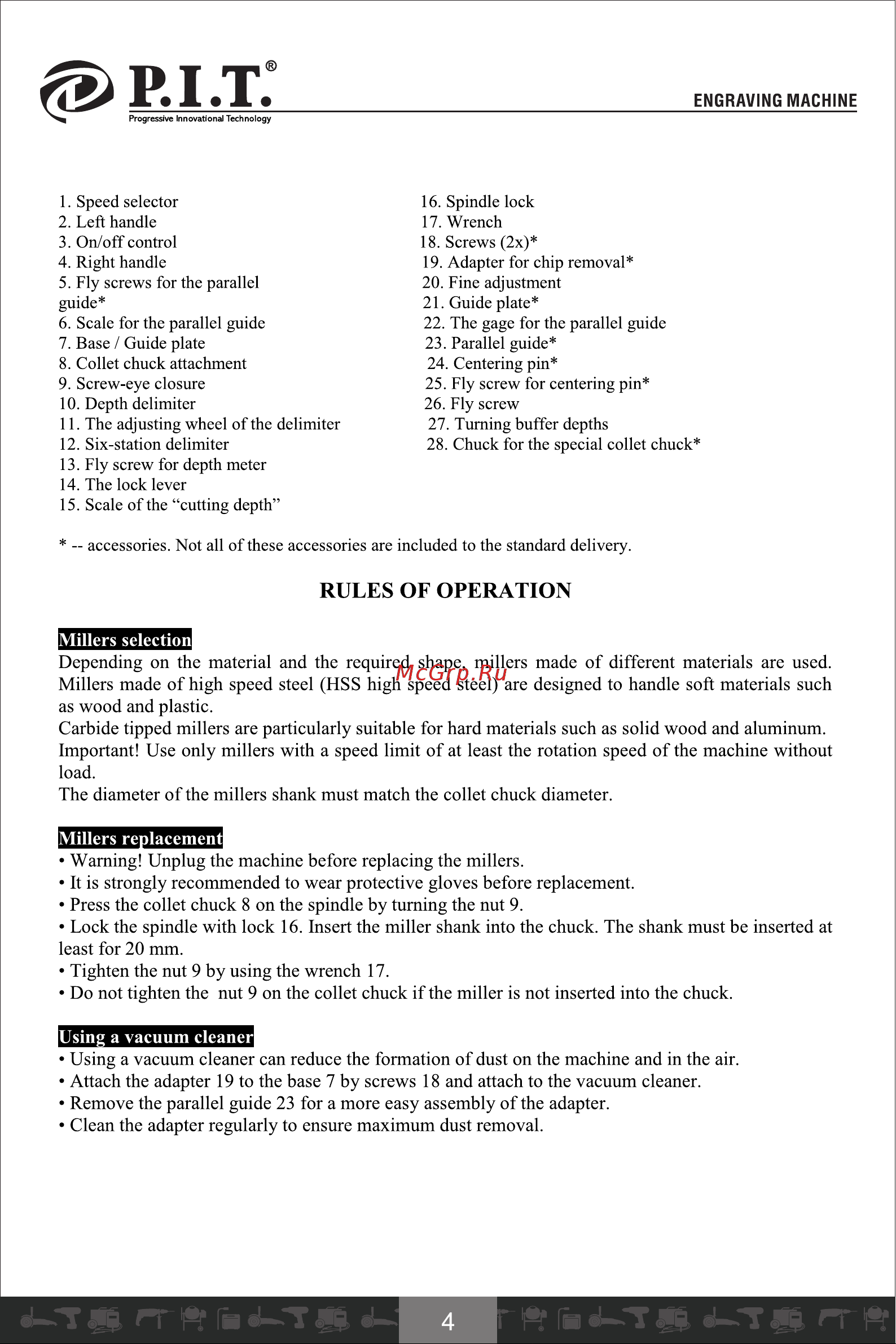

P.I.T. PER8-C МАСТЕР [5/20] Rules of operation
![P.I.T. PER8-C МАСТЕР [5/20] Rules of operation](/views2/1865313/page5/bg5.png)
Содержание
- Engraving machine электрическая фрезерная машина 1
- Per8 c per12 c 1
- Progressive innovational technology 1
- Прогрессивные инновационные технологии 1
- Т гт ft ги т т гт ft t ut гт ft teeurr 1
- General safety precautions 2
- Engraving machine 3
- Explanation of p i t trademark 3
- Intended use 3
- Operation principle 3
- Product specifications 3
- Electric router physical form 4
- Functional capabilities and features of the electric router 4
- Depending on the material and the required shape millers made of different materials are used millers made of high speed steel hss high speed steel are designed to handle soft materials such as wood and plastic carbide tipped millers are particularly suitable for hard materials such as solid wood and aluminum important use only millers with a speed limit of at least the rotation speed of the machine without load the diameter of the millers shank must match the collet chuck diameter 5
- Engraving machine 5
- Rules of operation 5
- Using a vacuum cleaner can reduce the formation of dust on the machine and in the air attach the adapter 19 to the base 7 by screws 18 and attach to the vacuum cleaner remove the parallel guide 23 for a more easy assembly of the adapter clean the adapter regularly to ensure maximum dust removal 5
- Warning unplug the machine before replacing the millers it is strongly recommended to wear protective gloves before replacement press the collet chuck 8 on the spindle by turning the nut 9 lock the spindle with lock 16 insert the miller shank into the chuck the shank must be inserted at least for 20 mm tighten the nut 9 by using the wrench 17 do not tighten the nut 9 on the collet chuck if the miller is not inserted into the chuck 5
- Cutting oui 6
- Engraving machine 6
- For larger depth cutting out it is recommended to make several repeated cutting outs with a smaller depth set the depth as described above place the electric router on the workpiece and turn it on release the lock lever 14 and slowly plunge the router until the depth delimiter device 10 will abut the surface lock the lock lever 14 milling with constant speed without jumps after the milling is complete lift the electric router and turn it off 6
- If the direction of movement will be opposite this may result in loss of control over the electric router 6
- Operation 6
- Speed selection 6
- The direction of electric router movement should be against to the direction of the millers rotation 6
- Engraving machine 8
- Terms of warranty service 8
- Общие меры безопасности 10
- 页 10 10
- Назначение 11
- Принцип работы 11
- Расшифровка 11
- Технические характеристики 11
- Торговой марки p i t 11
- 页 11 11
- Правила эксплуатации 12
- Т гт ft и т ф 12
- 页 12 12
- Материал диаметр фрезы значение скорости 13
- 页 13 13
- Техническое обслуживание 14
- 页 14 14
- Условия гарантийного обслуживания 15
- Электрическая фрезерная машина 15
- 页 15 15
- Гарантийное свидетельство на инструмент p i t 16
- Дата продажи _ наименование торговой организации 16
- Наименование изделия_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ артикул изделия 16
- Серийный номер 16
- 页 16 16
- P i t warranty card 17
- Электрическая фрезерная машина 17
- 页 17 17
- Гарантийный талон р т 18
- Р1 т 18
- Электрическая фрезерная машина 18
- 页 18 18
- P i t warranty sheet гарантийный талон p i t 19
- 页 19 19
- Www pit tools com 20
- 页 20 20
Похожие устройства
- P.I.T. PSR 12-D PROMO Инструкция по эксплуатации
- P.I.T. PSR 12-D СТАНДАРТ Инструкция по эксплуатации
- P.I.T. PSR 12-D1 СТАНДАРТ Инструкция по эксплуатации
- P.I.T. PSR 14.4-D1 F Инструкция по эксплуатации
- P.I.T. PSR 14.4-D1 СТАНДАРТ Инструкция по эксплуатации
- P.I.T. PSR 18-D1 СТАНДАРТ Инструкция по эксплуатации
- P.I.T. PSR 24-D1 СТАНДАРТ Инструкция по эксплуатации
- P.I.T. PSR20-C МАСТЕР Инструкция по эксплуатации
- P.I.T. PST70-C1 МАСТЕР Инструкция по эксплуатации
- P.I.T. PST90-C МАСТЕР Инструкция по эксплуатации
- P.I.T. PSA1200-C МАСТЕР Инструкция по эксплуатации
- P.I.T. PKE405-C4 МАСТЕР Инструкция по эксплуатации
- P.I.T. PKE405-D1 СТАНДАРТ Инструкция по эксплуатации
- P.I.T. PKS185-C2 МАСТЕР Инструкция по эксплуатации
- P.I.T. PKS200-C МАСТЕР Инструкция по эксплуатации
- Garlyn CG-01 Инструкция по эксплуатации
- Weissgauff HI 430 BFZ Инструкция по эксплуатации
- Weissgauff HI 430 GFZ Инструкция по эксплуатации
- Weissgauff WF 65 Инструкция по эксплуатации
- Weissgauff WF 85 Инструкция по эксплуатации
ENGRAVING MACHINE 1 Speed selector 2 Left handle 3 On off control 4 Right handle 5 Fly screws for the parallel guide 6 Scale for the parallel guide 7 Base I Guide plate 8 Collet chuck attachment 9 Screw eye closure 10 Depth delimiter 11 The adjusting wheel of the delimiter 12 Six station delimiter 13 Fly screw for depth meter 14 The lock lever 15 Scale of the cutting depth 16 Spindle lock 17 Wrench 18 Screws 2x 19 Adapter for chip removal 20 Fine adjustment 21 Guide plate 22 The gage for the parallel guide 23 Parallel guide 24 Centering pin 25 Fly screw for centering pin 26 Fly screw 27 Turning buffer depths 28 Chuck for the special collet chuck accessories Not all of these accessories are included to the standard delivery RULES OF OPERATION Millers selection Depending on the material and the required shape millers made of different materials are used Millers made of high speed steel HSS high speed steel are designed to handle soft materials such as wood and plastic Carbide tipped millers are particularly suitable for hard materials such as solid wood and aluminum Important Use only millers with a speed limit of at least the rotation speed of the machine without load The diameter of the millers shank must match the collet chuck diameter Millers replacement Warning Unplug the machine before replacing the millers It is strongly recommended to wear protective gloves before replacement Press the collet chuck 8 on the spindle by turning the nut 9 Lock the spindle with lock 16 Insert the miller shank into the chuck The shank must be inserted at least for 20 mm Tighten the nut 9 by using the wrench 17 Do not tighten the nut 9 on the collet chuck if the miller is not inserted into the chuck Using a vacuum cleaner Using a vacuum cleaner can reduce the formation of dust on the machine and in the air Attach the adapter 19 to the base 7 by screws 18 and attach to the vacuum cleaner Remove the parallel guide 23 for a more easy assembly of the adapter Clean the adapter regularly to ensure maximum dust removal 4
