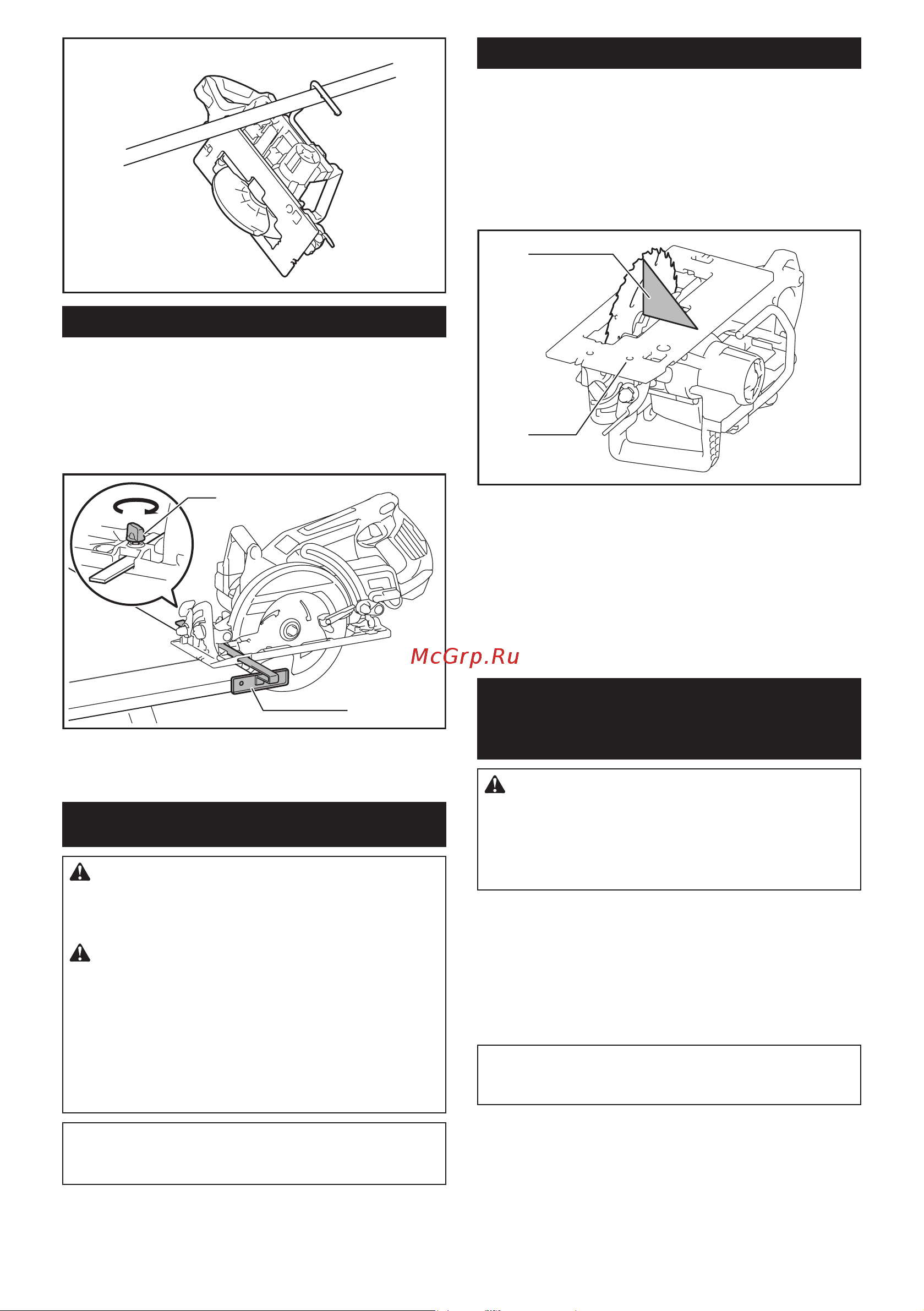

12 ENGLISH
Rip fence (Guide rule)
Optional accessory
The handy rip fence allows you to do extra-accurate
straight cuts. Simply slide the rip fence up snugly
against the side of the workpiece and secure it in posi-
tion with the clamping screw on the front of the base. It
also makes repeated cuts of uniform width possible.
1
2
► 1. Rip fence (Guide rule) 2. Clamping screw
MAINTENANCE
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before attempting to perform inspection or
maintenance.
CAUTION: Clean out the upper and lower
guards to ensure there is no accumulated saw-
dust which may impede the operation of the lower
guarding system. A dirty guarding system may limit
the proper operation which could result in serious
personal injury. The most effective way to accomplish
this cleaning is with compressed air. If the dust is
being blown out of the guards be sure the proper
eye and breathing protection is used.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
Adjusting 0°-cut accuracy
This adjustment has been made at the factory. But if it is
off, you can adjust it as the following procedure.
1. Slightly loosen the lever on on the bevel scale
plate.
2. Make the base perpendicular to the blade using
a triangular rule or square rule by turning the adjusting
bolt.
1
2
► 1. Triangular rule 2. Adjusting bolt
3. Tighten the lever and then make a test cut to
check the verticalness.
To maintain product SAFETY and RELIABILITY,
repairs, any other maintenance or adjustment should
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
specied in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or attachment
for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Circular saw blade
• Wrench
• Rip fence (Guide rule)
• Makita genuine battery and charger
NOTE: Some items in the list may be included in the
tool package as standard accessories. They may
differ from country to country.
