Zotek ZTY [7/26] Instrument overview
![Zotek ZTY [7/26] Instrument overview](/views2/1893221/page7/bg7.png)
3

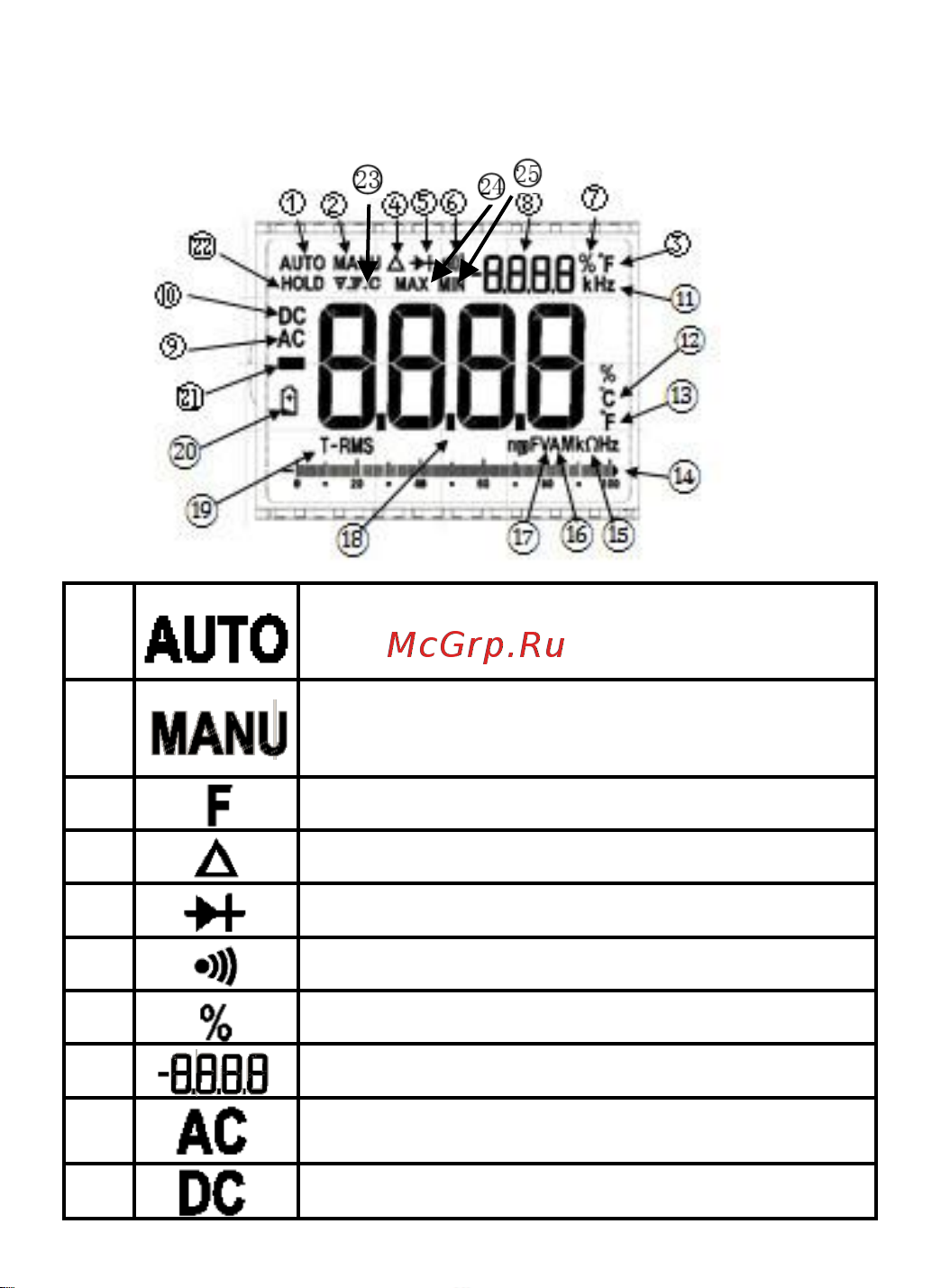

LCD Display
①
Auto range. The product selects
the range with the best resolution.
②
Manual range. The user selects
the range.
③
Capacitance test. (Farad)
④
Relative mode.
⑤
Diode test.
⑥
Continuity test.
⑦
Duty cycle test.
⑧
Secondary measurements display.
⑨
Alternating current.
⑩
Direct current.
