Zotek ZTX [7/26] Instrument overview
![Zotek ZTX [7/26] Instrument overview](/views2/1893222/page7/bg7.png)
3

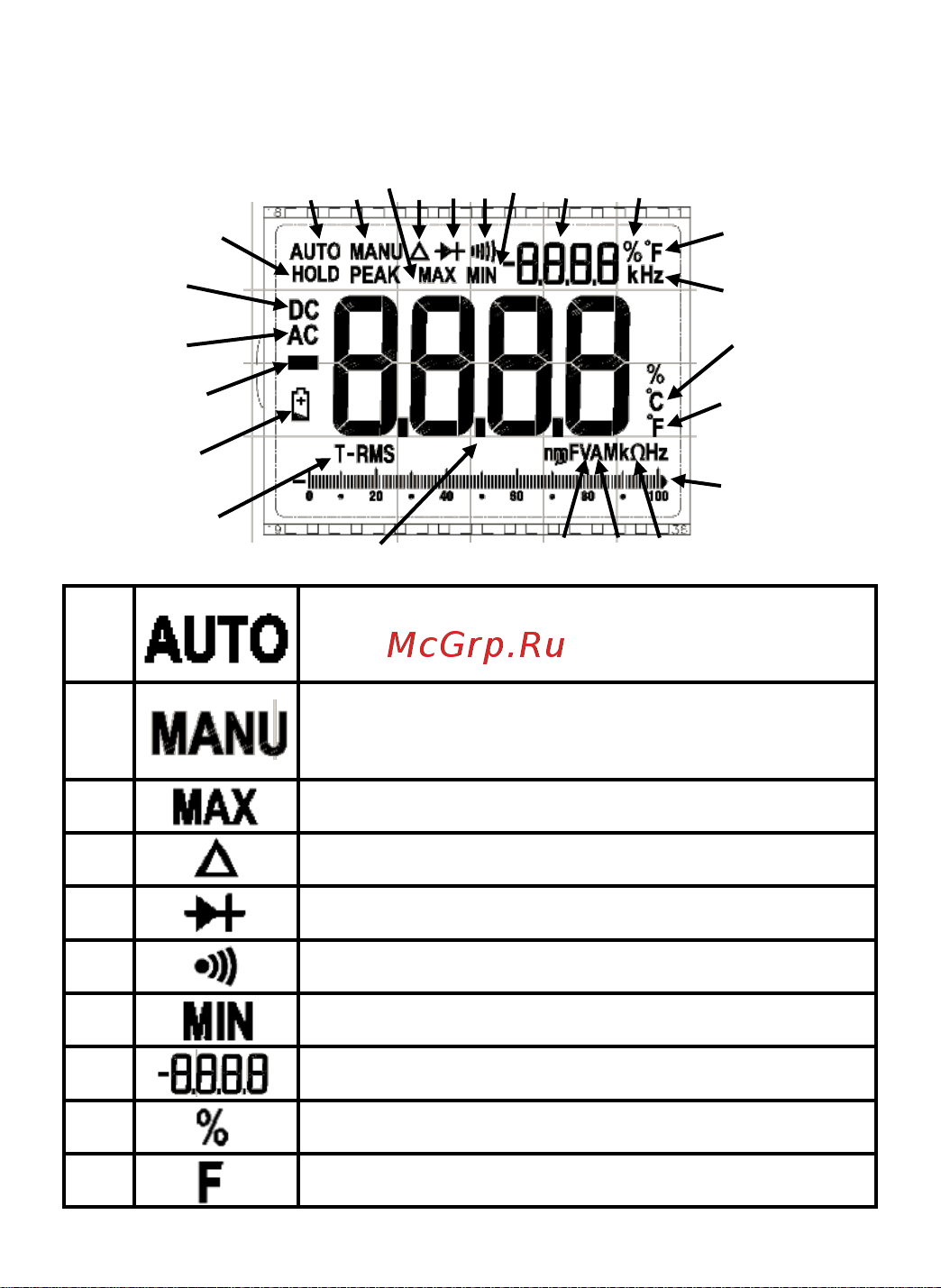

LCD Display
①
Auto range. The product selects
the range with the best resolution.
②
Manual range. The user selects
the range.
③
Display shows maximum reading.
④
Relative mode.
⑤
Diode test.
⑥
Continuity test.
⑦
Display shows minimum reading.
⑧
Secondary measurements display.
⑨
Duty cycle test.
⑩
Capacitance test. (Farad)
Instrument Overview
①
②
③
④
⑤⑥
⑦
⑧
⑨
⑩
⑪
⑫
⑬
⑭
⑮⑯
⑰
⑱
⑲
⑳
㉑
㉒
㉓
㉔
Содержание
- User manual 1
- And limitation of liability 2
- Customers enjoy one year warranty 2
- Failures caused by use outside of the 2
- Limited warranty 2
- Table of contents page 3
- Maintenance 5 4
- Buttons with a triple display 5
- Introduction 5
- Look for cracks or missing plastic carefully look 5
- Personal injury please read all safety information 5
- Safety information 5
- To the line being measured do not touch the 6
- When the input is out of range 6
- Instrument overview 7
- The range 7
- ⑭ analog bar graph 8
- ⑯ current test ampere 8
- Minutes of inactivity 9
- Successfully disabled the function 9
- Modes of dcv acv and ncv 10
- Push once to hold the current reading on the 10
- The display is zeroed and the stored reading is 10
- Push this button when the product is at the 11
- Setting of acmv the primary measurement 11
- Measurements instruction 13
- To be measured if the previous setting was 13
- Touch the probes to the correct test points of 13
- And the test lead to the vωhz terminal 14
- Measure capacitance 15
- Reading shows 15
- 100khz push until the product is at the 16
- Capacitor being tested 16
- Frequency while the secondary measurement 16
- When the frequency to be measured is 17
- Are qualified to do so and have the relevant 19
- Clean the product 19
- Maintenance 19
- Product 19
- Loosen the four screws on the back cover and 20
- Of the same type 20
- Place the back cover and the battery door 20
- General specifications 21
- Operating 21
- Specifications 21
- Dc voltage 22
- Electrical specifications 22
- Mv 0 1mv 22
- V 0 01v 22
- Capacitance 24
- Function range resolution accuracy 24
- Mhz 0 01mhz 24
- Only to 24
- Μf 0 01μf 24
- Continuity 25
- Function range resolution accuracy 25
