TECHNICAL DATA
VENTUS PRO
Unit inner section
Cross
section
Nominal
air flow rate
Max
air flow rate
G Y
mm mm m² CMH CMH
PVS 3x6 620 350 0,22 1719 2734
PVS 4.5x6 620 465 0,29 2283 3633
PVS 6x6 620 620 0,38 3044 4843
PVS 6x9 930 620 0,58 4567 7265
PVS 6x12 1240 620 0,77 6089 9687
PVS 9x9 930 930 0,86 6850 10898
PVS 9x12 1240 930 1,15 9133 14530
PVS 9x15 1550 930 1,44 11417 18163
PVS 12x12 1240 1240 1,54 12178 19374
PVS 12x15 1550 1240 1,92 15222 24217
PVS 12x18 1860 1240 2,31 18267 29061
PVS 15x15 1550 1550 2,40 19028 30272
PVS 15x18 1860 1550 2,88 22833 36326
PVS 15x21 2170 1550 3,36 26639 42380
PVS 18x18 1860 1860 3,46 27400 43591
PVS 18x21 2170 1860 4,04 31967 50856
PVS 21x21 2170 2170 4,71 37294 59332
PVS 24x24 2480 2480 6,15 48711 77495
PVS 27x27 2790 2790 7,78 61650 98080
PVS 31x31 3100 3100 9,61 76111 121086
PVS 34x34 3410 3410 11,63 92095 146514
PVS 37x37 3720 3720 13,84 109600 174364
PVS 21x40 4030 2170 8,75 69261 110188
PVS 21x43 4340 2170 9,42 74589 118664
PVS 24x46 4650 2480 11,53 91333 145303

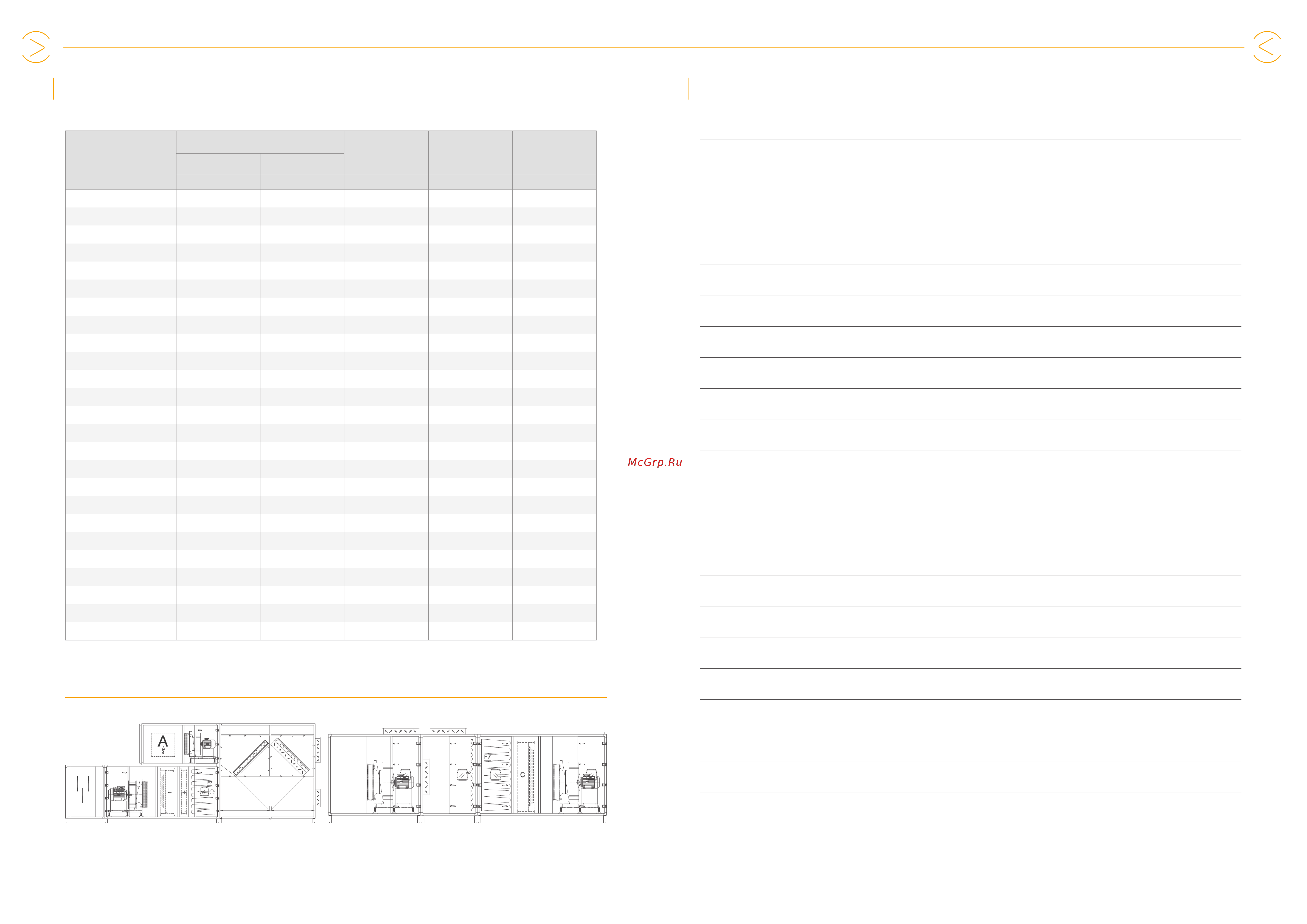

SAMPLE UNIT CONFIGURATIONS
NOTEBOOK
CC
Notebook
25
Technical Specification
24
