VTS VENTUS PRO PVS PO 30 AC [20/25] Stop etc

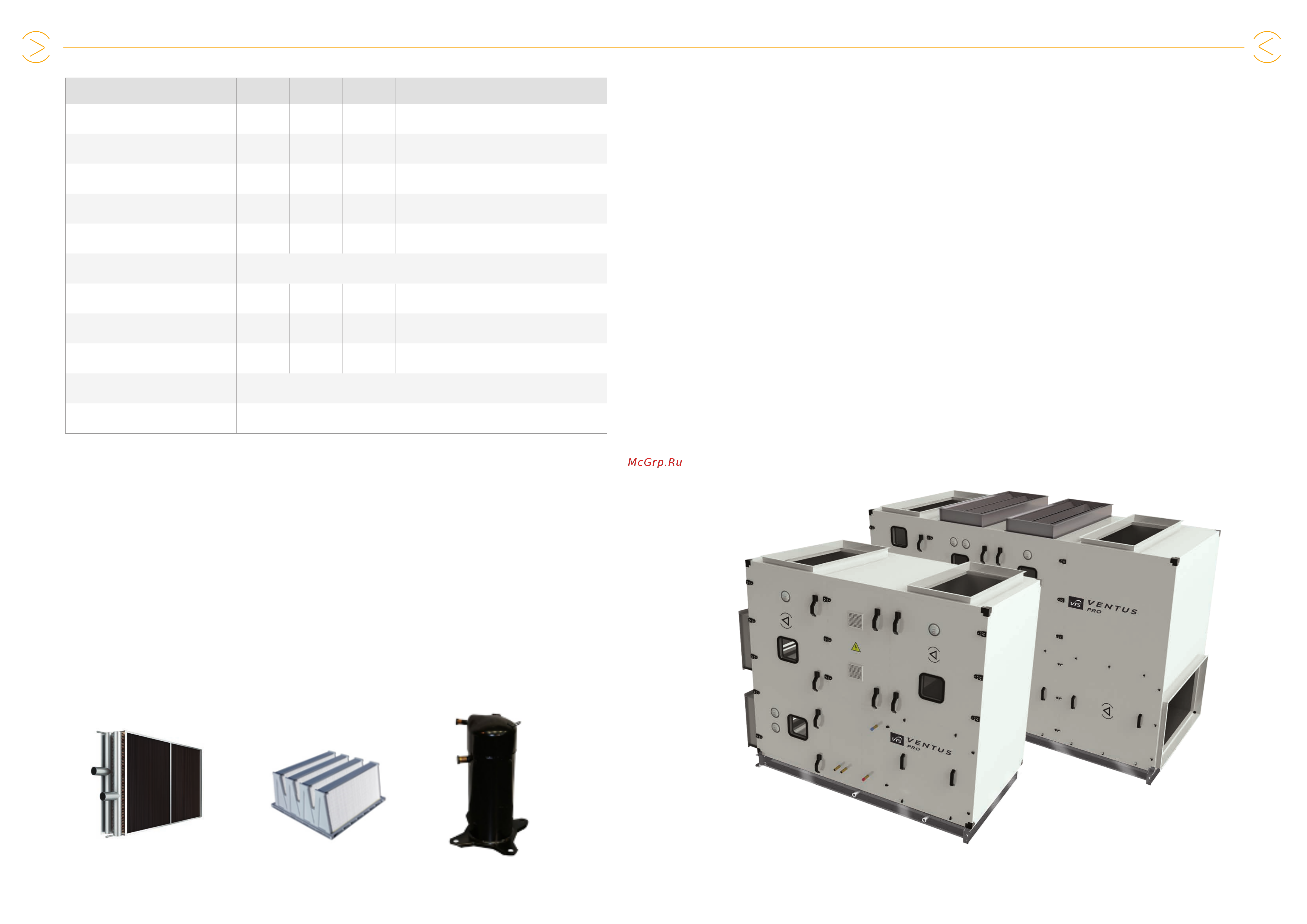

![VTS VENTUS PRO PVS 15x18 [20/25] Stop etc](/views2/1893542/page20/bg14.png)
PVS HY
PVS HY
24
PVS HY
36
PVS HY
48
PVS HY
60
PVS HY
72
PVS HY
84
PVS HY
100
Air Flow m³/h 2
400 3
600 4
800 6
000 7
200 8
400 10
000
Exhaust External
Static Pressure
Pa 495 330 580 420 655 740 440
Supply External
Static Pressure
Pa 1090 900 990 940 1270 1115 1030
Total Current A 6 6 7 9 12 13 14
Total Power kW 3 3 5 6 8 9 9
Power Supply
V / Hz
/ ~
380 / 50 / 3
Cooling Capacity kW 27,8 40,7 56,81 73,7 79,6 94,6 123,1
Hot Water Capacity
(90 - 70°C)
kW 32,3 53,0 67,3 83,6 100,7 114,0 139,2
Humidifier Capacity kg/h 15 30 40 50 60 75 90
Refrigerant - R410A
Filters - G4 / F7 / F9
Designed for summer: 37°C - 38.5% Rh / Winter: 0°C - 80% Rh conditions.
SPECIFICATIONS
1. 7 different volume and capacity,
2. Low pressure and high efcient coil in copper tube / aluminum n type,
3. High efcient EC plug fan,
4. Stainless inner surface,
5. 60 mm rock wool for heat and sound insulation,
6. Environmentally friendly R410A gas,
7. High efcient scroll compressor and condenser fans,
8. Plug & Play.
1. Humidity control (humidity, enthalpy),
2. Heating and cooling control,
3. Increasing comfort or dehumidication control with the after heater,
4. To detect the pollution of all lters used separately and to generate alarm information,
5. Constant ow rate and pressure function,
6. Programming of seven days of the week (temperature, ow rate, on-off),
7. Blow temperature limit control (comfort temperature, condensation initial temperature),
8. It can be integrated into the Building Management System with all known communication languages
(Modbus, BACnet, Lon-ECHELDN, LAN TCP / IP, SNMP) with an additional hardware.
9. With an additional hardware, the whole system can be connected to a central computer, managed,
and accessible from the Internet,
10. It is possible to see and change all parameters with the terminal on it,
11. All similar devices can be communicated as a network,
12. Operation and conguration parameters can be encrypted,
13. Audible and visual alarm information is given,
14. Daily, weekly work-stop time can be adjusted,
15. When the device conguration changes, a new conguration can be easily dened parametrically
(adding humidier, valve-damper control changes, dehumidication, changing the fan control type, etc.),
16. Temperature control can be done parametrically, proportional, proportional + integral or proportional
+ integral + derivative.
17. All kind of alarms information are kept in memory (differential pressure switches, thermal, sensor, emergency
stop, etc.).
VENTUS PRO - PVS HY – PACKAGE HYGIENIC AIR HANDLING UNIT VENTUS PRO - PVS HY – PACKAGE HYGIENIC AIR HANDLING UNIT
4140
