32
VTS reserves the right to implement changes without prior notice
Ventus Air Handling Units

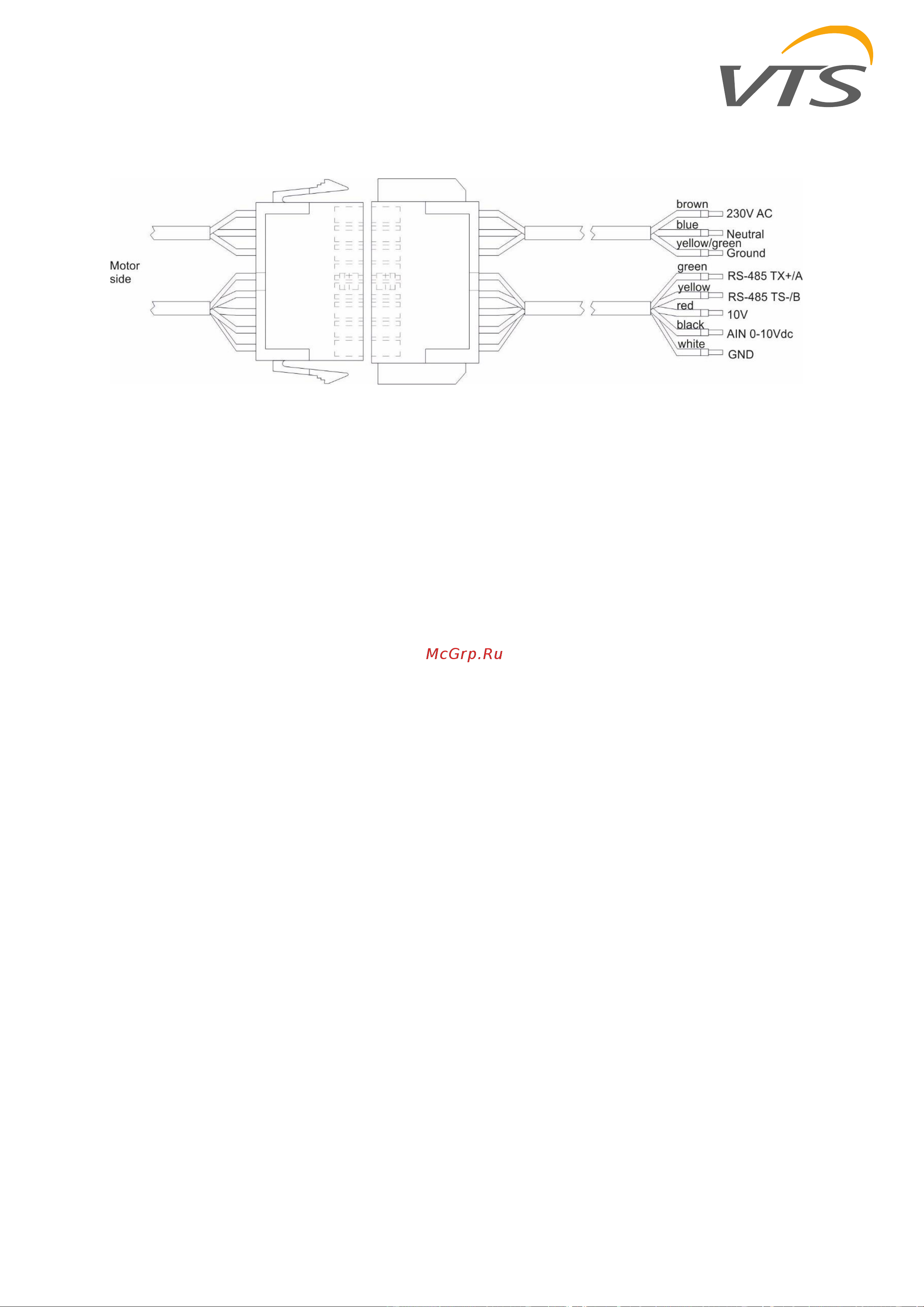

Fig.19. EC motor cable description
4.11.5 Air Dampers
Air dampers applied in VVS 400-650 AHUs are equipped with two separate pins as standard,
they should be propelled with two actuators. Propulsion of the above mentioned air
dampers based on a single actuator (regardless of its maximum torque) can result in
inappropriate operation of the damper. In the case of AHUs equipped with water heat
exchangers (heaters, coolers, glycol recovery) air damper’s actuators of supply units should
be equipped with a return spring ensuring its spontaneous closure in case of power cut.
4.11.6 Automatic control
Complete automatic control which should be an integral part of each air-conditioning system, enables
continuous operation of a device, in many cases it is an indispensable element and lack of it may
lead to serious operational problems or failures.
This documentation does not cover information regarding assembly of automatics, connection,
starting-up and operation of the system.
This information can be found in separate documents supplied by VTS with the automatics set. In
other cases appropriate information and documentation should be provided by the automatics
supplier.
5. PREPARATION FOR START-UP
AHU start-up at putting the ventilation system into service can be carried out only by qualified and
competent personnel. Before starting-up the system and ducting must be thoroughly cleaned.
Check if:
- during assembly operations systems and devices' elements as well as automatics elements and
equipment were not damaged,
- all ventilation devices are mechanically installed and connected to the ventilation system,
- ground cables connecting the control gear with ventilation ducts are installed,
- hydraulic and freon systems are fully installed and ready for operation and heating or cooling
medium is present during the start-up,
- electric devices are wired and ready for operation,
- siphons and condensate drain-out system from drain plate are installed,
- all automatics elements are installed and wired.
