VTS Ventus VVS180 [35/65] Rotary exchanger
![VTS Ventus VVS180 [35/65] Rotary exchanger](/views2/1894672/page35/bg23.png)
35
VTS reserves the right to implement changes without prior notice
Ventus Air Handling Units
5.8 Rotary exchanger
Before starting up the exchanger, check the following:
- after removing the wedge-shaped belt - if the motor's rotor rotates freely,
- distance between the rotor and casing and adjust the sealing brushes, if needed,
- electric connections,
- if the cleaning air-lock is installed on the side of the supply-air duct,
- once the drive belt is assembled and the exchanger is turned on, make sure that direction of rotor's
rotations led from exhaust-air ducts, through the cleaning air-lock and to the supply-air ducts (fig.
22).
VVS 21-300:
VVS 400-650:

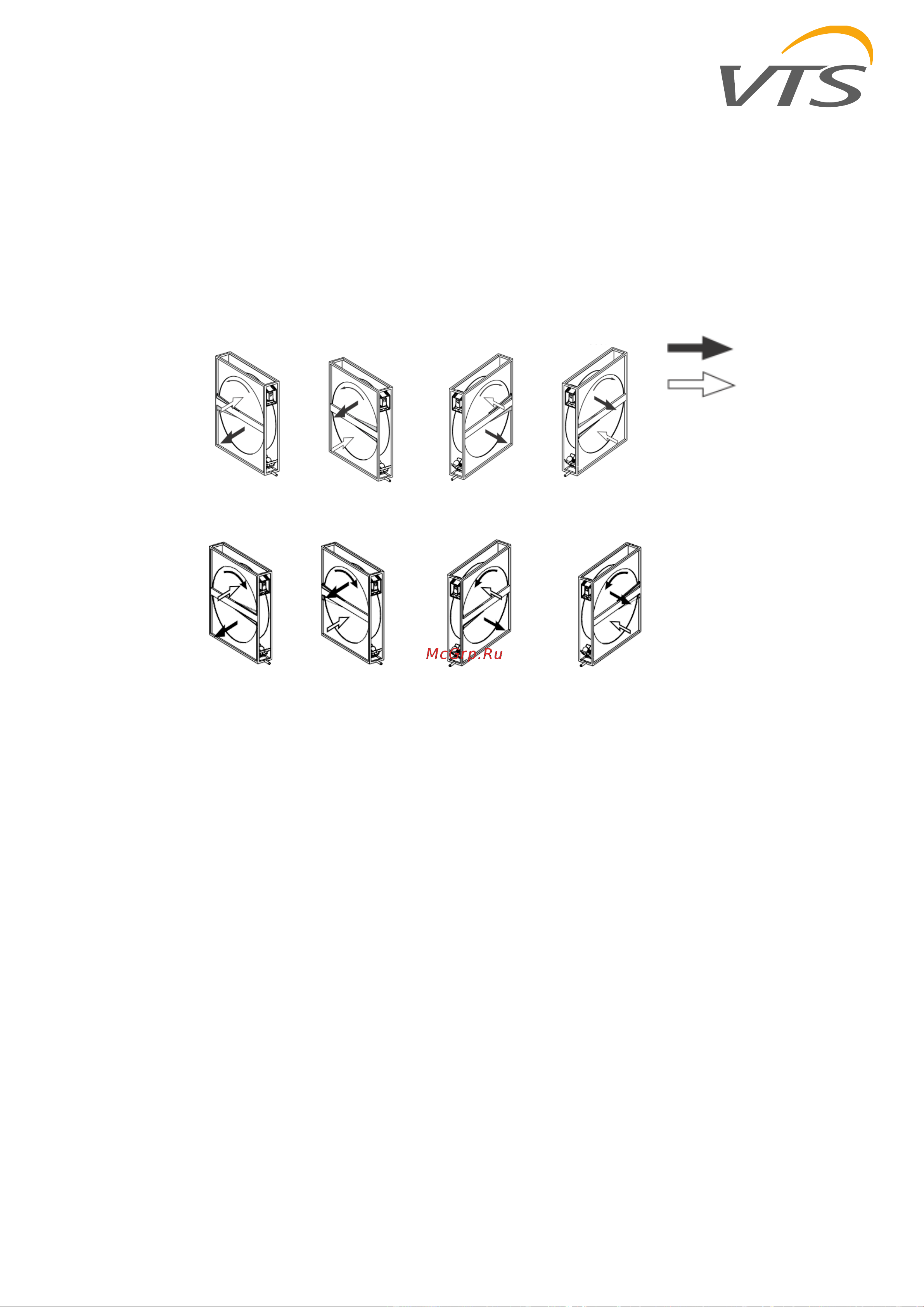

Fig.22. Direction of rotary regenerator rotations
5.9 Fan unit
Check if:
- there are no objects within a range of the fan, which might be sucked into the rotor once the fan is
turned on,
- the fan's rotor rotates freely, without any friction against the casing elements,
- the motor is properly positioned and the system as well as operation conditions comply with data
shown on the rating plate (supply voltage, current, frequency, winding connections),
- the fan's rotor rotates freely and does not touch the stator,
- air cooling the motor can freely come in and out of the motor's casing,
- ground and protection connection are done correctly,
- the fan's designed rotary speed will not be exceeded (see AHU technical data),
- all screws, supporting elements and electric connections are fasten firmly,
- supply cables located inside the fan section are far from any loose drive elements and they are
fasten with appropriate clamps to the electric wiring,
- all dampers on the ventilation ducts network are set in accordance with the design,
- the rotor rotation direction is the same as a direction of the arrow placed on the fan's casing (switch
on the fan by pulsing). If they are arrange in different directions, change with each other any two
phases in the motor connection box or change rotation direction on the frequency converter,
- tension of the wedge-shaped belts and location of the pulleys is in line with the requirements of
point 7.5.3.
Once the aforementioned control activities are performed, close carefully all AHU's inspection
panels.
Supply
Exhaust
