15
VTS reserves the right to implement changes without prior notice
Ventus Air Handling Units

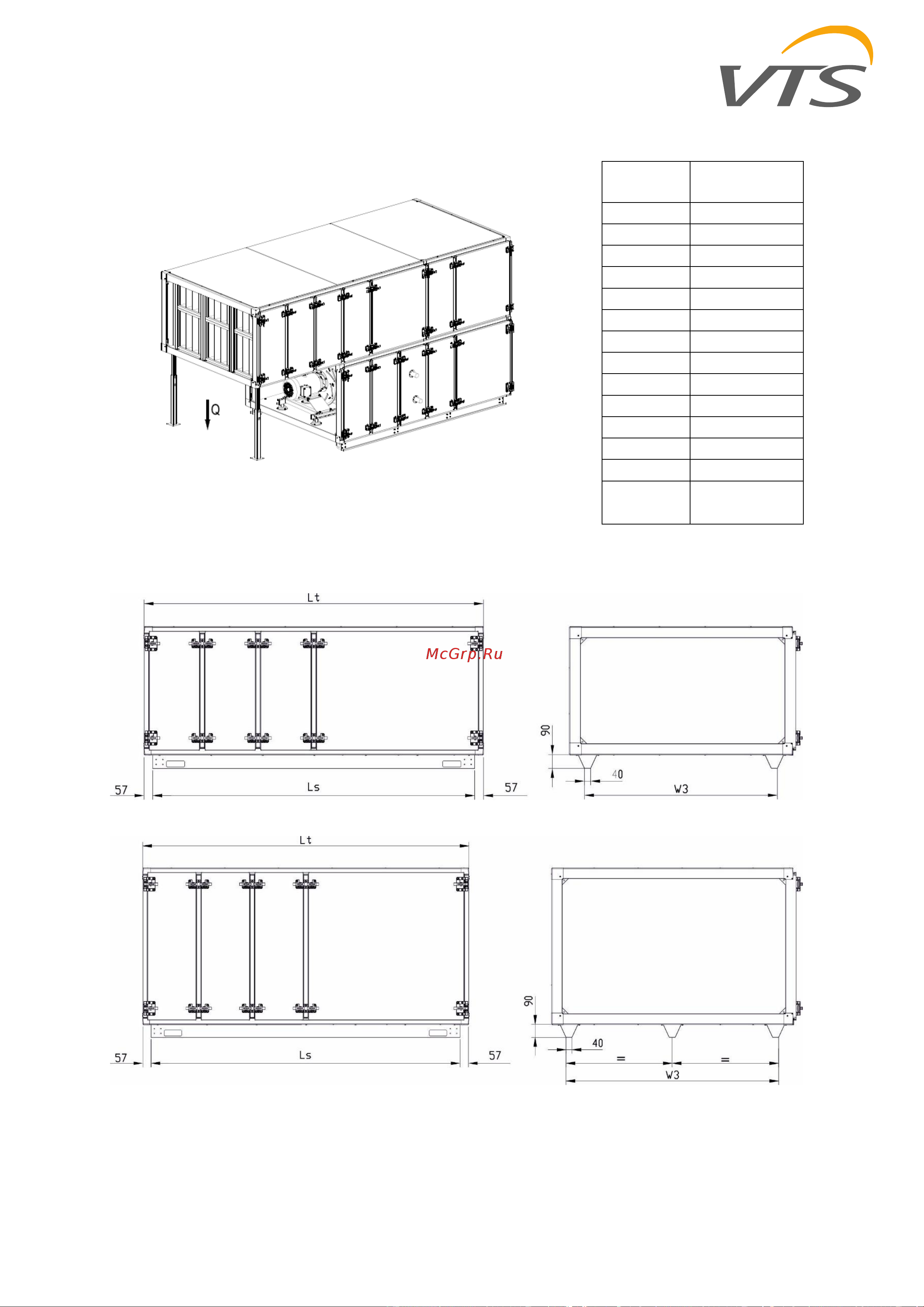

Fig.6a Sample of supporting of supply-exhaust AHUs’ top sections
Fig.7a. Base frame of VVS 21-75 AHUs
Fig.7b. Base frame of VVS 100-180 AHUs
AHU size
Max. load
[N]
VVS 21
500
VVS 30
500
VVS 40
500
VVS 55
1000
VVS 75
1000
VVS 100
1500
VVS 120
2000
VVS 150
2000
VVS 180
3500
VVS 230
4000
VVS 300
5000
VVS 400
6000
VVS 500
8500
VVS 650
9000
