VTS Ventus VVS400 [20/65] Connection of heaters and coolers
![VTS Ventus VVS400 [20/65] Connection of heaters and coolers](/views2/1894672/page20/bg14.png)
20
VTS reserves the right to implement changes without prior notice
Ventus Air Handling Units

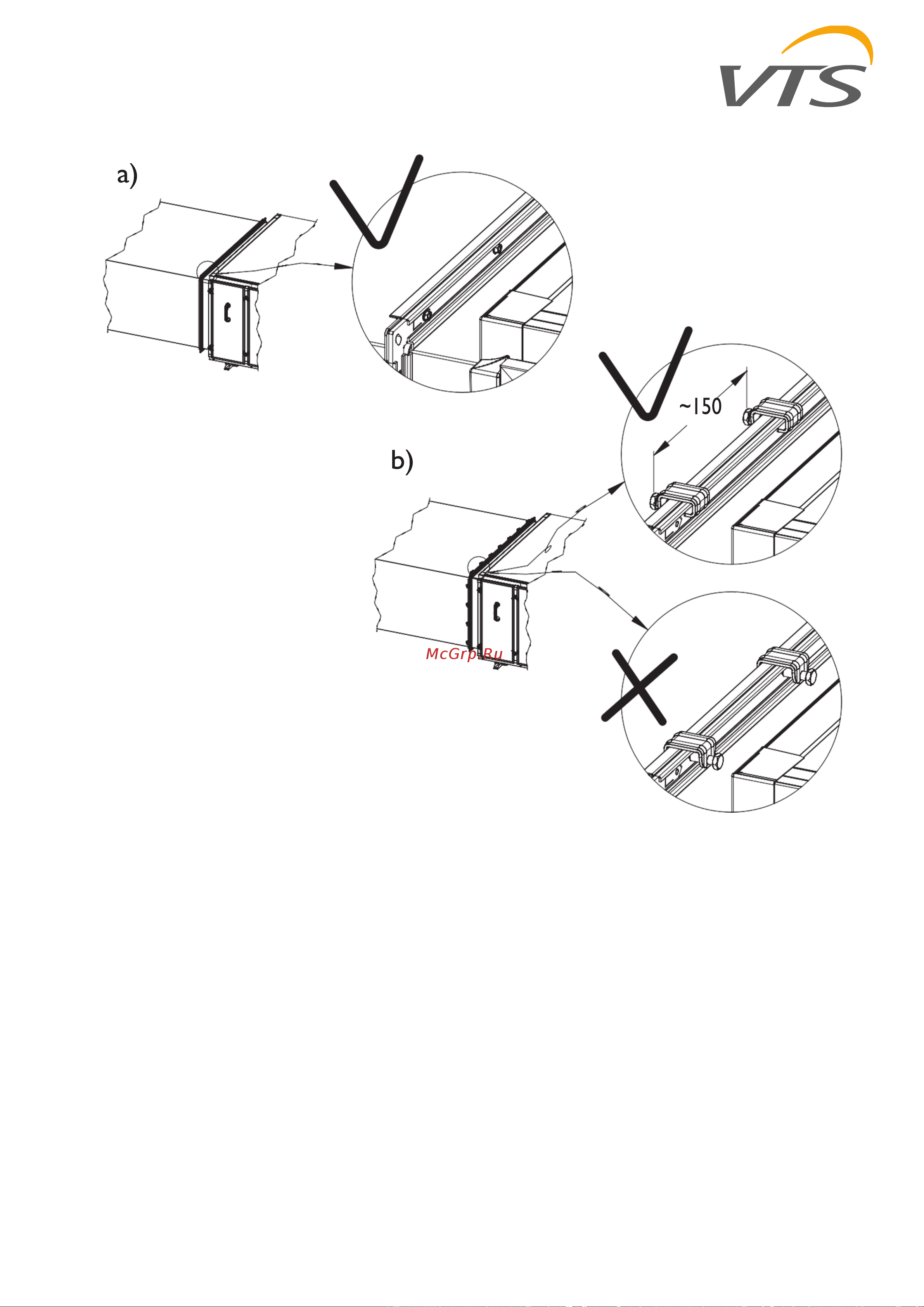

Fig.10. Duct’s connection rules
4.8 Connection of heaters and coolers
Connection of the exchangers should be carried out so as not to allow for stresses which may
result in mechanical damages or leakage. The pipeline weight and thermal stresses cannot be
passed onto the exchanger's connections. Depending on a local conditions please use the
compensation at the supply and return of the pipeline system, in order to level the pipeline's linear
expansion. During assembly of the supply system to the exchangers equipped with the screwed
connections, counter the exchanger's connection with additional wrench (fig.11).
The supply system should be planned so as it does not collide with the other AHU sections. Applied
method of connecting the exchangers with the supply system should allow for an easy pipeline
disassemble in order to remove the exchanger from the AHU, during maintenance and service
operations.
