18
VTS reserves the right to implement changes without prior notice
Ventus Air Handling Units

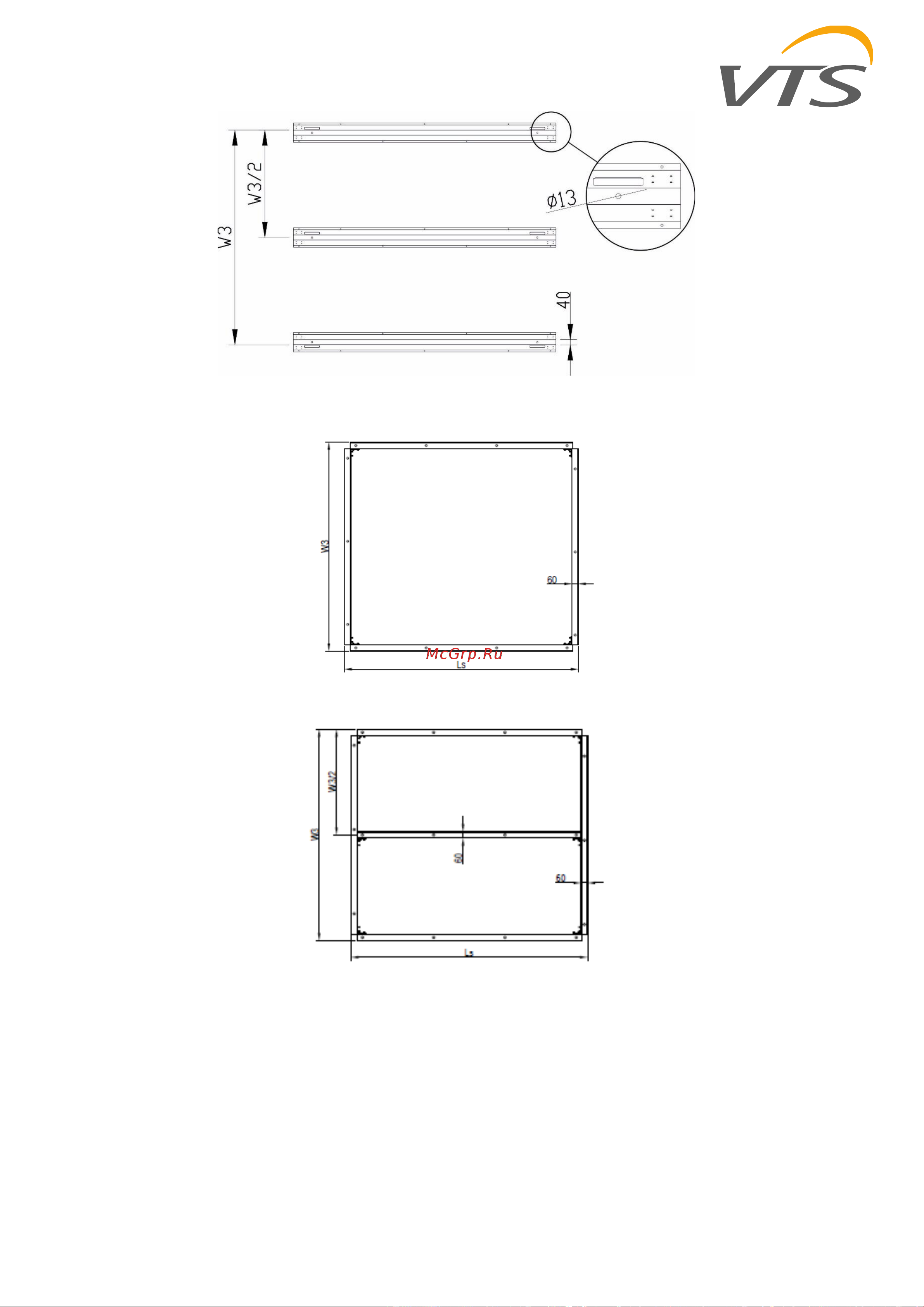

W3
b) VVS 100-180
c) VVS 230-300
d) VVS 400-650
All base frame profiles must be supported.
For foundation holding of the VVS 21-150 AHUs should be drilled holes in the bottom part of the
longitudinal profile of base frame.
For foundation holding of the VVS 180-650 AHUs can be used a holes in the ends of longitudinal
profiles of base frame (fig.7d). To fix AHU base frame to foundation should be used bolts M10
AHUs must be anchored to the foundation.
Anchoring AHUs is out of VTS delivery.
