17
VTS reserves the right to implement changes without prior notice
Ventus Air Handling Units

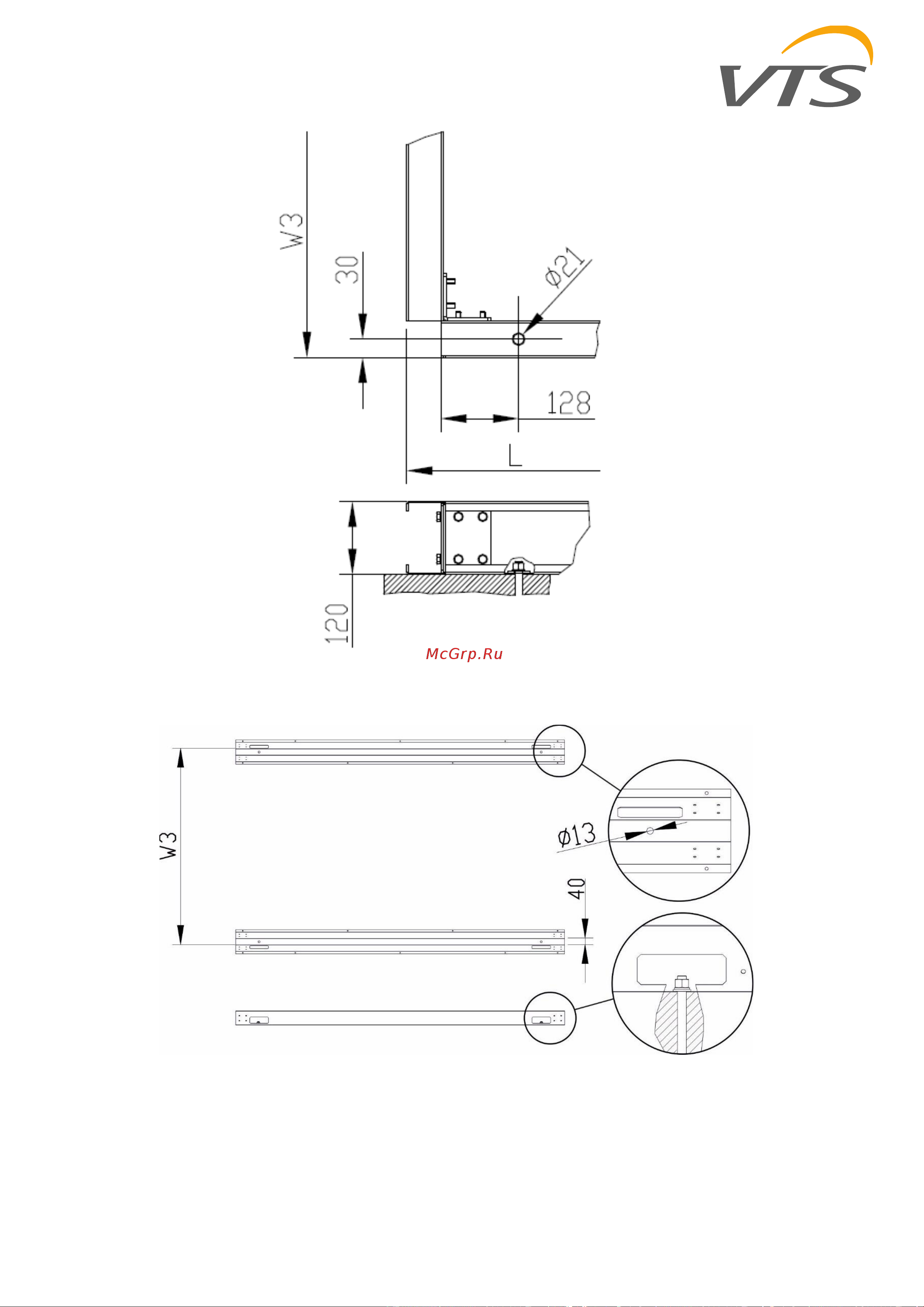

Fig.7e. Location of end foundation holes in base frames of the VVS 180-650 AHUs
Fig.8. Base frame of the AHU's blocks
a) VVS 21-75
