22
VTS reserves the right to implement changes without prior notice
Ventus Air Handling Units

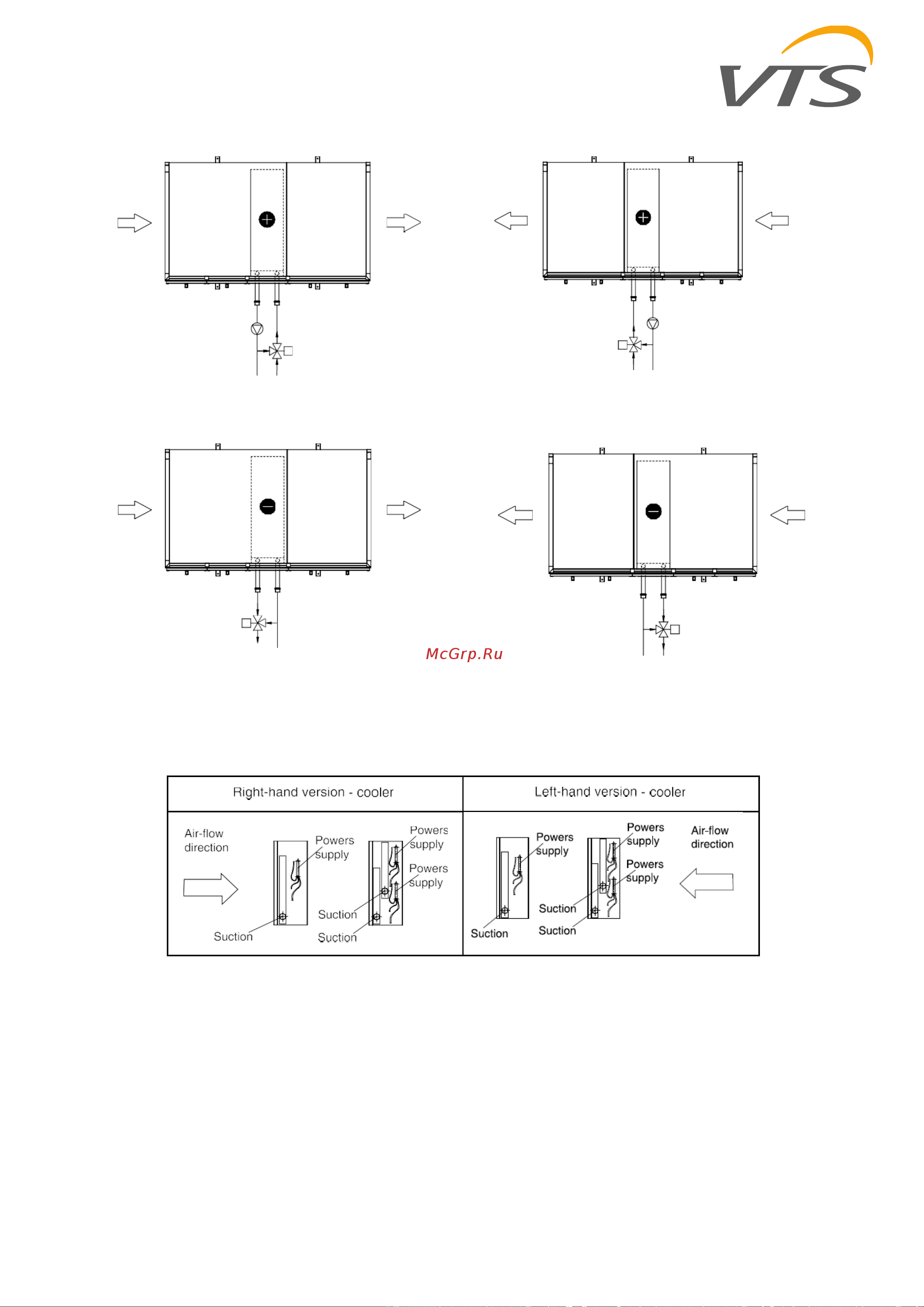

Fig.12. Examples of feeding water exchangers
Connecting the freon cooler to the supply system with a refrigerating unit should be done by a
qualified cooling system specialist in accordance with the regulations concerning the freon-driven
cooling devices.
Fig. 13 Supplying freon coolers and heaters
Supplying freon coolers
and heaters
Supplying freon coolers
and heaters
