16
VTS reserves the right to implement changes without prior notice
Ventus Air Handling Units

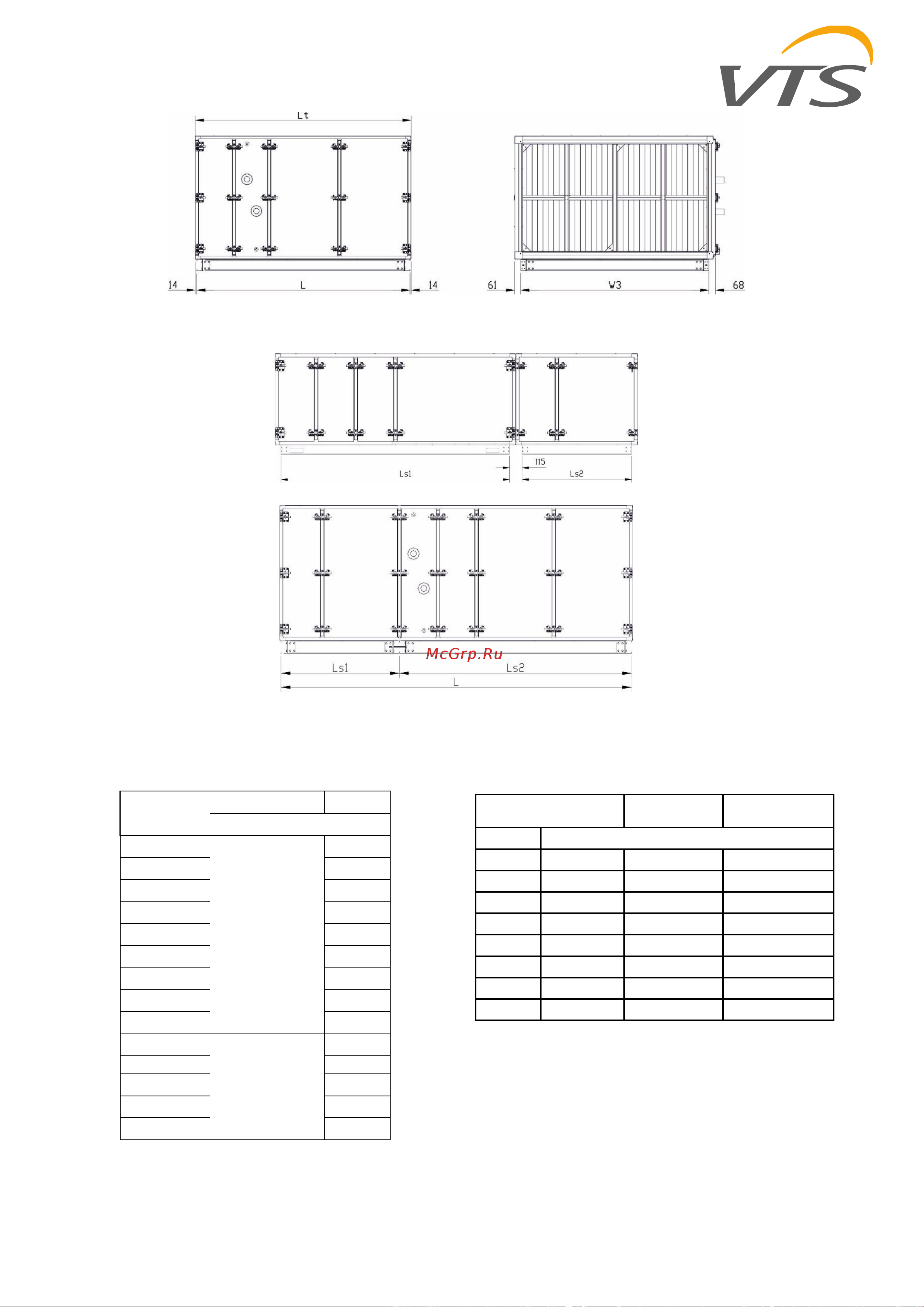

Fig.7c. Base frame of VVS 230-650 AHUs
VVS21-180
VVS230-650
Rys.7d. Base frame of VVS 21-650 sectional AHUs
Table 3a External dimensions of VS 21-150 AHUs’ transport frames Table 3b. Length of the base frame in relation to the AHU section
AHU size
Frame length L
R
W
3
mm
VVS-21
L = Lt-110
747
VVS-30
747
VVS-40
954
VVS-55
1125
VVS-75
1266
VVS-100
1446
VVS-120
1677
VVS-150
1871
VVS-180
1871
VVS-230
L = Lt-110
2368
VVS-300
2460
VVS-400
2960
VVS-500
3460
VVS-650
3572
Length of the AHU
section
Ls (VVS 21-
180)
Ls (VVS 230-
650)
[Mod]
[mm]
2
758
649
732
3
1124
1015
1098
4
1490
1380
1464
5
1856
1746
1830
6
2221
2112
2198
7
2587
2477
8
2953
2843
9
3318
3209
-
