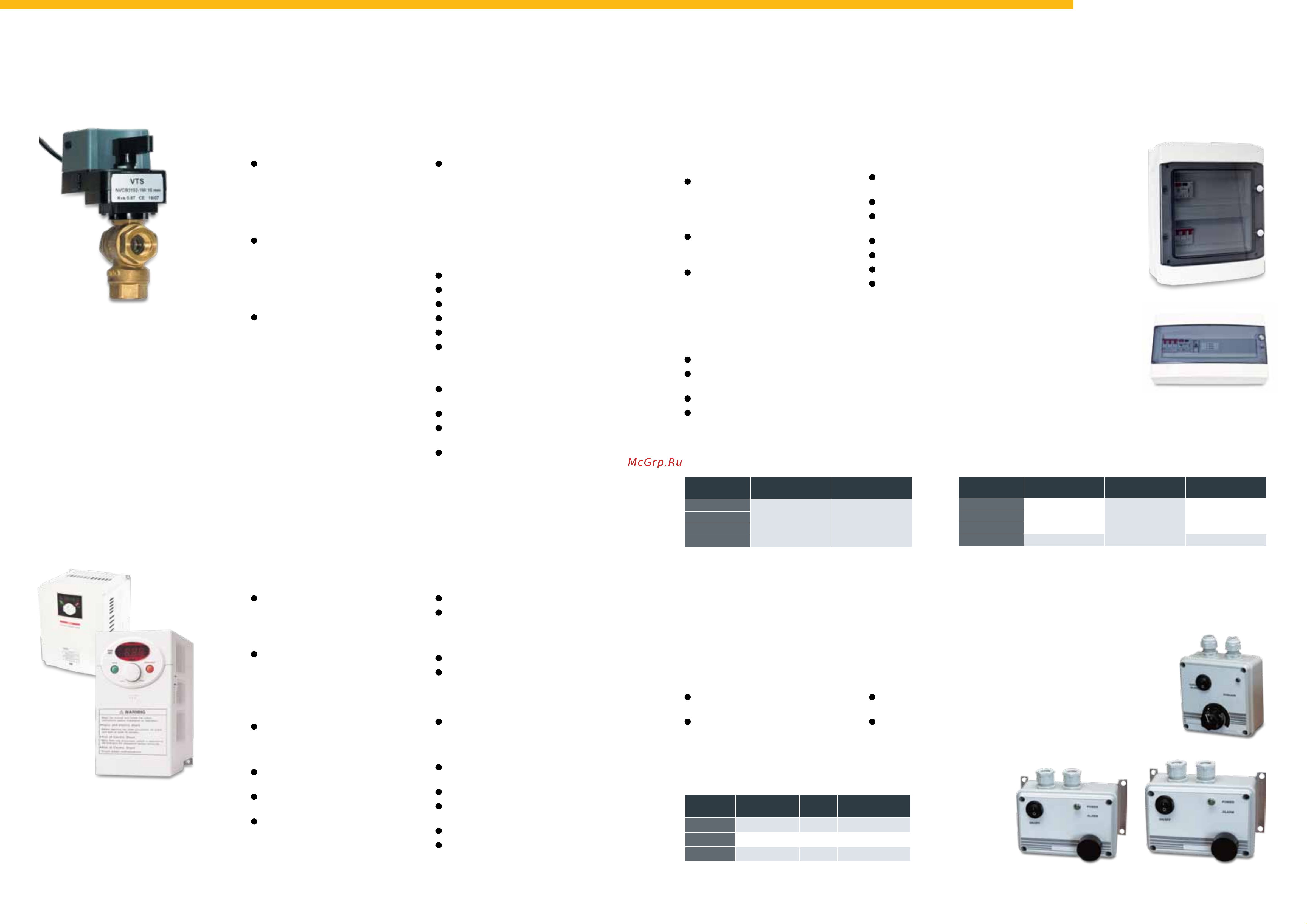

THREE-PORT VALVE
WITH ELECTRIC ACTUATOR
CONSTRUCTION:
Mechanical system with an electric
motor installed in the housing, ensuring
the smooth medium ow regulation:
- DN15 for kvs = 2.5; 4.0,
- DN20 for kvs = 6.3,
- DN25 for kvs = 10.
FUNCTIONS AND APPLICATION:
Adjustment of the temperature
of the medium owing through
the water heater. Quality control
ensuring the maintenance
of a constant ow of the medium
which supplies the water coil at its
variable temperature of supply.
Quality regulation of the mass ow
of the medium which supplies
the water heat exchanger
at a constant supply temperature -
cooler. Installation of the valve
in the return system of the medium
from the water heat exchanger.
It is required to match the valve
and recirculation pump operation
in order to minimize the risk
of medium freezing in the water
heating coil.
OPERATING PARAMETERS:
Actuator
Adjustment range: 0 - 100%.
Supply voltage: 24 V AC/DC.
Input signal: 0 - 10 V DC.
Angle of rotation: 90°.
Protection degree: IP54.
Operating environment:
from -20°C to +50°C.
Valve
Operating characteristics: equal
percentage / proportional.
Medium temperature: up to 140°C.
Operating environment:
from -20°C to +50°C.
Glycol in the medium: 50%.
FREQUENCY CONVERTER
(inverter)
CONSTRUCTION:
The electronic system allows
for the change in the frequency
of the motor voltage and maintaining
optimal U/f dependence.
The system is tted inside
the housing.
The fan provides internal cooling
of the air handling unit.
Operating panel to set the
parameters of the inverter.
FUNCTIONS AND APPLICATION:
Smooth adjustment of the
performance of the air handling
unit through a proportional change
in the rotational speed
of the motor-fan assembly.
Maintaining constant operating
parameters of the air handling unit
with variable air ow resistance
through the system.
OPERATING PARAMETERS:
Adjustment range: 10 ÷ 100 Hz.
Supply voltage: 200 ÷ 240 V AC
one- and three-phase
(up to 2.2 kW electric motor),
three-phase 380 ÷ 480 V AC.
Frequency: 48 ÷ 63 Hz.
Operating connections (programmable):
- 5 digital inputs (LS SV.. iC5),
- 8 digital inputs (LS SV... iG5A),
- 1 analogue input 0... 10 V (LS).
1 relay output with a changeover
contact - 1 binary transistor output
(SV... iC5 LS, LS SV.. iG5A) -
1 analogue output 0-10 V.
Modbus RTU communication
over the RS485 line.
Connecting the motor: 3- phase.
Operating environment:
from 0°C to 40°C.
Protection degree IP20.
Built-in fan forced cooling.
CONTROL GEARS FOR SUPPLY
AND SUPPLY-EXHAUST N-TYPE AIR
HANDLING UNITS
CONSTRUCTION:
Controller.
System of elements protecting
the motor operation.
Main load switch.
Control panel.
FUNCTIONS AND APPLICATION:
Adjustment, control and protection
of the operating parameters
of the air handling unit or air
conditioning unit - operation,
temperature, air efciency, errors.
The operation of the air conditioning
unit according to the calendar
can be divided into time ”zones”.
Cooperation with outside ”systems”
concerning:
- start signal,
- re safety signal,
- START/STOP system.
OPERATING PARAMETERS:
Supply voltage:
3 x 400 V or 1 x 230 V AC.
Frequency: 50 Hz ± 1 Hz.
Supply voltage in control circuits:
24 V AC Controller.
External communication.
Serial port.
Standard: RS-485.
Protocol: Modbus RTU - Local
communication with frequency
converters.
Supply application
(N)
Exhaust application
(W)
NVS 23
380 x 320 x 150 395 x 235 x 115
NVS 39
NVS 65
NVS 80
Supply application
(N)
Exhaust application
(W)
Supply and exhaust
application (NW)
NVS 23
240 x 300 x 130
460 x 340 x 170
240 x 300 x 130NVS 39
NVS 65
NVS 80 240 x 400 x 130 240 x 400 x 130
Dimensions of control gears designed
for applications without frequency
converters
Dimensions of control gears and automation
designed for applications with frequency converters
THYRISTOR SPEED CONTROLLERS
TR 600, TR 900, TR 2000
FUNCTIONS AND APPLICATION:
Smooth voltage regulation
within the range of 130 V - 230 V.
Function of forced start-up
at full power and returing
to user parameters.
CONSTRUCTION:
Output circuit based on triac, controlled
with microprocessor.
Protection class IP44.
Controller
Supply
voltage
Current Application
TR 600 230 V 4 A NVS 23 (1F)
TR 900 230 V 8 A NVS 39 (1F)
TR 2000 230 V 16 A NVS 65 (1F)
Thyristor speed controllers
operational parameters
