NVS 23 Code
W
[mm]
W
i
[mm]
H
[mm]
H
i
[mm]
L
[mm]
M
[kg]
Fan section (ventilation) NVS 23 V 680 600 402 322 757 32
Fan section with water cooling coil
(3-row exchanger)
NVS 23 WC3.V 680 600 402 322 1 122 51
Fan section with direct expansion cooler
(3-row mono-section exchanger)
NVS 23 DX3.1.V 680 600 402 322 1 122 51
Ducted water heating coil
(3-row exchanger)
NVS 23 WH3 660 600 373 318 112 9
Ducted water heating coil
(2-row exchanger)
NVS 23 WH2 660 600 373 318 85 7
Ducted electric heater (18 kW) NVS 23 EH18 660 600 373 313 206 6
Ducted at lter (EU4) NVS 23 PG4 660 600 373 290 132 5
Ducted bag lter (EU5) NVS 23 BF5 660 600 373 290 342 9
Ducted bag lter (EU7) NVS 23 BF7 660 600 373 290 642 14
Set of noise attenuator panels (x2 pcs)* NVS 23 S 600 309 1 000 8
NVS 39 Code
W
[mm]
W
i
[mm]
H
[mm]
H
i
[mm]
L
[mm]
M
[kg]
Fan section (ventilation) NVS 39 V 680 600 510 430 757 39
Fan section with water cooling coil
(3-row exchanger)
NVS 39 WC3.V 680 600 510 430 1 122 61
Fan section with direct expansion cooler
(3-row mono-section exchanger)
NVS 39 DX3.1.V 680 600 510 430 1 122 61
Ducted water heating coil
(3-row exchanger)
NVS 39 WH3 660 600 490 413 140 10
Ducted water heating coil
(2-row exchanger)
NVS 39 WH2 660 600 490 413 85 8
Ducted electric heater (36 kW) NVS 39 EH36 660 600 490 430 246 8
Ducted at lter (EU4) NVS 39 PG4 660 600 490 430 132 6
Ducted bag lter (EU5) NVS 39 BF5 660 600 490 430 342 10
Ducted bag lter (EU7) NVS 39 BF7 660 600 490 430 642 16
Set of noise attenuator panels (x2 pcs)* NVS 39 S 600 425 1 000 10
VTS Group
Brand you can trust
VTS product range
VENTUS N-TYPE functions
Advantages / application
Symbols and coding
Base and additional functions
Dimensions of the sections
and functional elements
Construction of the sections
Fan section (ventilation)
Cooling section with a water cooling coil
Cooling section with a direct expansion cooling coil
Ducted water heating coil
Electric heater
Noise attenuation panels
Cross-ow heat recuperator
Air lters
Optional elements
Control system
HMI OPTIMA - user interface
Duct temperature sensor
Strap-on return water temperature sensor
Differential pressure switch
Over-heating protection thermostat
ON-OFF and ON-OFF/S - electric air amper actuator
and electric air damper actuator (with return spring)
Anti-frost thermostat on air side
Three-port valve with electric actuator
Frequency converter (inverter)
Control gears for supply and supply-exhaust
N-TYPE air handling units
Thyristor speed controllers TR 600, TR 900, TR 2000
Fan charts
Fan performance NVS 23
Fan performance NVS 39
Fan performance NVS 65
Fan performance NVS 80
2
3
4
5
6
7
7
9-10
11
11
12
12
13
13
14
14
15
16
17
17
17
18
18
18
19
19
20
20
21
21
22
22
22
23
23

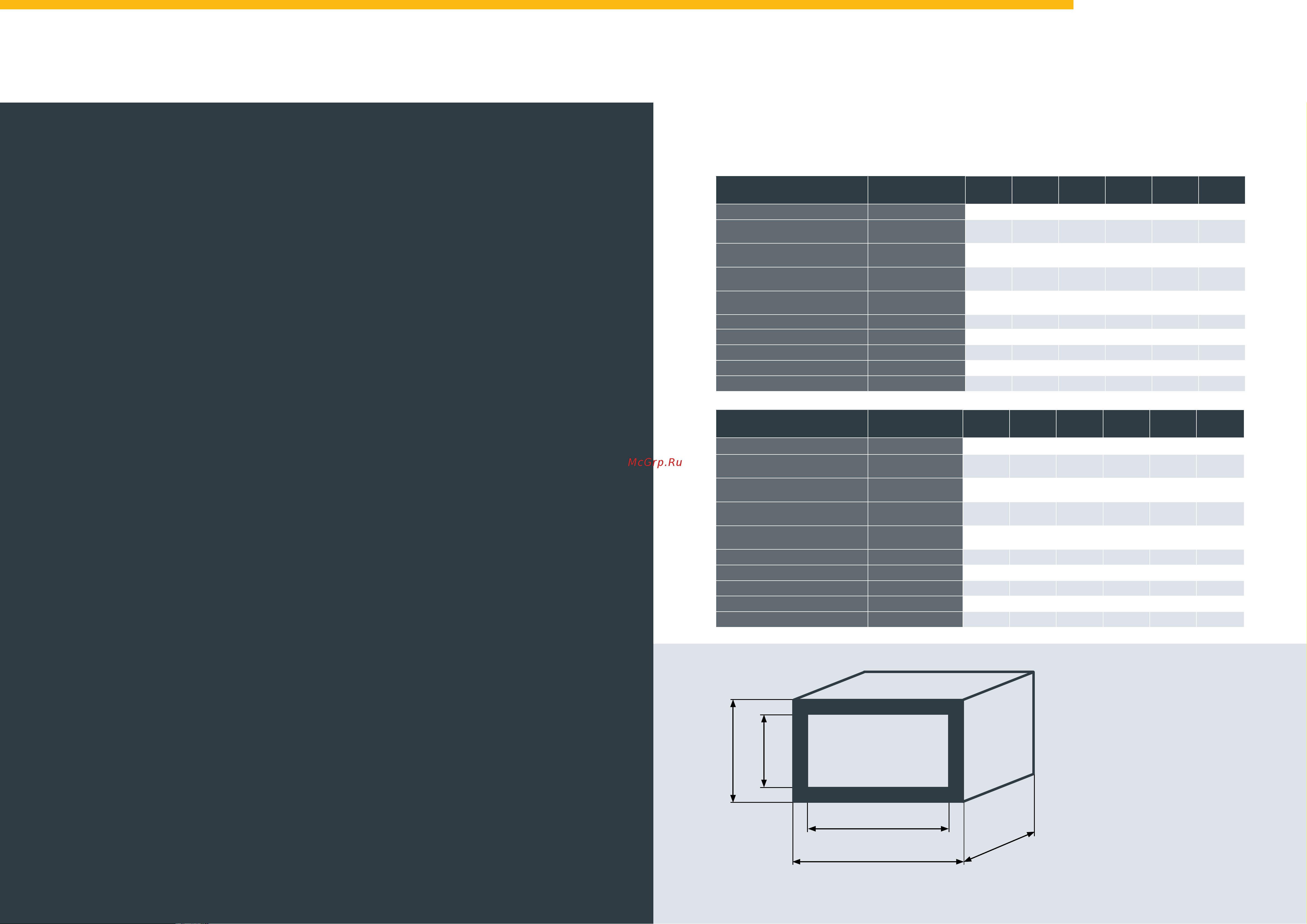

DIMENSIONS
OF THE SECTIONS
AND FUNCTIONAL
ELEMENTS
H
i
H
W
i
W
L
* panel length 1000 mm, width 140 mm
W - outer width
W
i
- internal cross section width
H - outer height
H
i
- internal cross section width
L - length
M - weight
