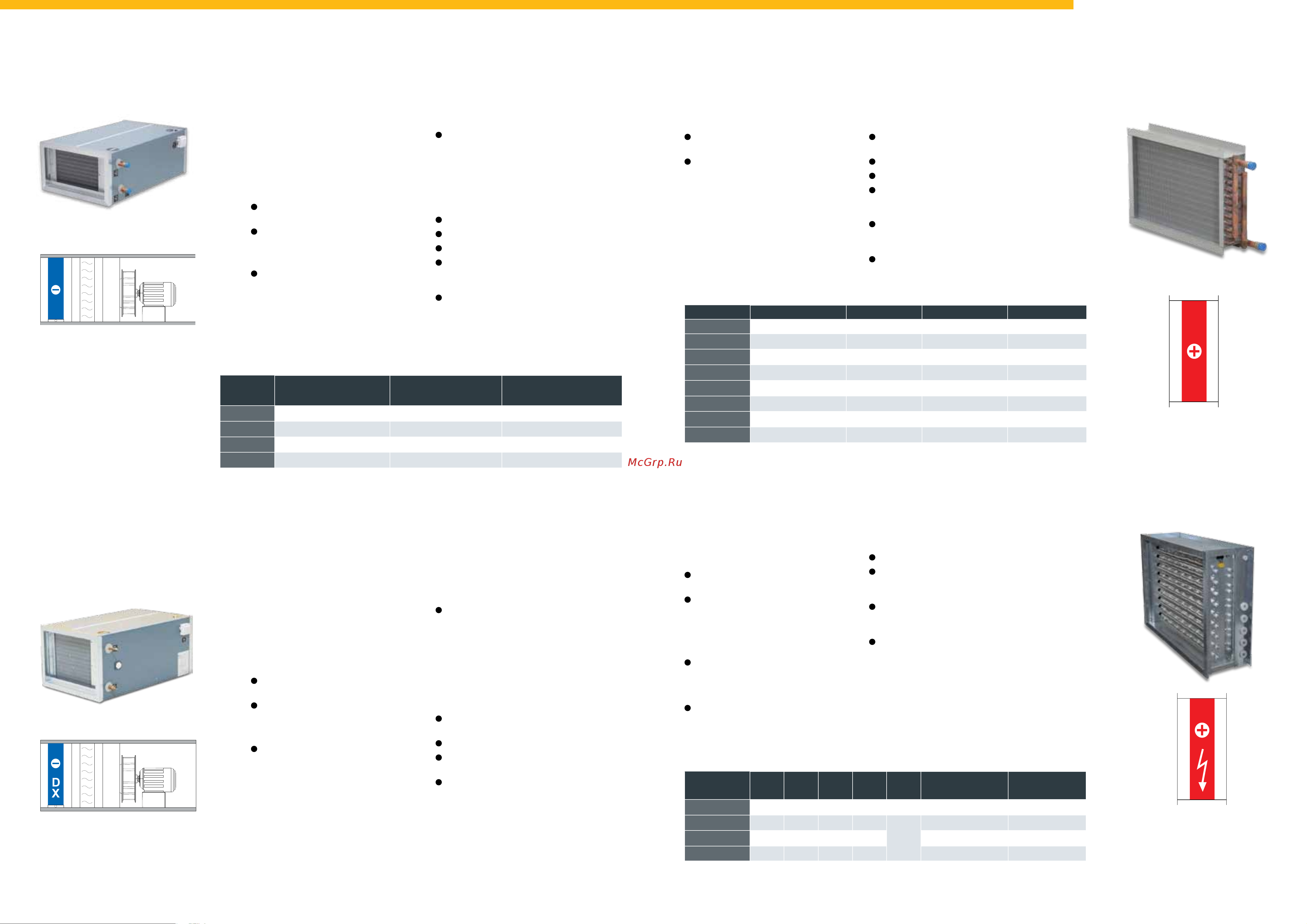

VTS VENTUS N-type NVS 65 DX3.1.V [7/13] Cooling section with a direct expansion cooling coil
![VTS VENTUS N-type NVS 65 PG4 [7/13] Cooling section with a direct expansion cooling coil](/views2/1894818/page7/bg7.png)
COMPOSITION:
Direct driven PLUG fan with a water
coil cooler in insulated casing.
COOLING SECTION
WITH A WATER COOLING COIL
CONSTRUCTION:
The water section consists
of a fan set, a three-row cooling coil
with droplet eliminator and
“monocoque” casing that provides
perfect thermal insulation,
high rigidity and a drainage system
(for condensing water).
WATER COOLER:
Tube diameter: ½”.
Number of R rows: 3.
Minimum ice water temperature: +5°C.
Maximum operating pressure
of the medium: 1.6 MPa = 16 bar (tested
21 bar).
Maximum content of glycol: 50%.
FUNCTIONS AND APPLICATION:
Cooling of the air supplied
to the room.
Air dehumidication.
The combination of a fan set
with a cooler in one block provides the
high tightness and strength of the section.
The construction ensures that the fan and
the cooling coil are perfectly matched.
Size Heat transfer area, m
2
Stub pipe diameter Power*, kW
NVS 23 8.1 DN25 (1") 18
NVS 39 10.5 DN25 (1") 28
NVS 65 17.2 DN32 (11/4") 48
NVS 80 24.1 DN32 (11/4") 60
* air temperature 40
o
C, relative humidity 50%, water temperature 7
o
C / 12
o
C
COMPOSITION:
PLUG fan and direct expansion (DX)
cooling coil in an insulated casing.
COOLING SECTION WITH A DIRECT
EXPANSION COOLING COIL
CONSTRUCTION:
The unit consists of a fan set,
a three-row direct expansion cooling
coil with a droplet eliminator,
a “monocoque” casing that provides
perfect thermal insulation,
high rigidity and a drainage system
(for condensing water).
DIRECT EXPANSION
COOLING COIL SECTION:
Copper tubes with embedded
aluminium ns (Cu/Al).
Tube diameter: ½”.
Minimum temperature of the medium
for ice water: +3°C.
Maximum operating pressure
of the medium: 2.2 MPa = 22 bar
(tested 29 bar).
FUNCTIONS AND APPLICATION:
Cooling of the air supplied
to the room.
Air dehumidication.
The combination of a fan set
with a cooler in one block provides
the high tightness and strength
of the section. The construction ensures
that the fan assembly is properly
connected to the cooler.
CONSTRUCTION:
Copper tubes with xed
aluminium lamellas (Cu/Al).
Tube diameter: ½”.
Number of rows: 2.3.
Maximum temperature
of the medium (heat carrier) 150°C
(automatics up to: 140°C).
Maximum operating pressure
of the medium: 1.6 MPa = 16 bar
(test: 21 bar).
Maximum content of glycol: 50%.
FUNCTIONS AND APPLICATION:
Heating of the air supplied
to a room.
Heating of the air after
the dehumidication process.
Size Heat transfer area, m
2
Number of rows Stub pipe diameter Power*, kW
NVS 23 WH2 30 2 DN25 (1") 30
NVS 23 WH3 50 3 DN25 (1") 50
NVS 39 WH2 60 2 DN25 (1") 60
NVS 39 WH3 80 3 DN25 (1") 80
NVS 65 WH2 100 2 DN32 (11/4") 100
NVS 65 WH3 110 3 DN32 (11/4") 110
NVS 80 WH2 105 2 DN32 (11/4") 105
NVS 80 WH3 115 3 DN32 (11/4") 115
* water temperature 95
o
C / 70
o
C, air temperature -30
o
C
ELECTRIC HEATER
CONSTRUCTION:
The assembly of the resistance
heating elements made
of Cr-Ni-Fe alloy,
each with 6 KW / 400 V capacity.
As a standard, the heater
is equipped with a thermostat
to protect from overheating.
FUNCTIONS AND APPLICATION:
Heating of the air supplied
to the room.
Heating of the air after
the dehumidication process
in the summer.
Minimum air ow velocity: v = 1.0 m/s.
Maximum allowable ambient
temperature around the heating
elements: 65°C.
Heating elements are connected
in groups, each with a capacity
of 18 kW.
The required heating power can be
obtained through a exible regulation
system or through a gradual adjustment
(wiring diagram available
in the operating manual).
Size
W
[mm]
W
i
[mm]
H
[mm]
H
i
[mm]
L
[mm]
Number of heating
elements
Heating capacity
[kW]
NVS 23 660 600 373 313 206 3 18
NVS 39 660 600 490 430
246
6 36
NVS 65 800 740 573 513 9 54
NVS 80 920 860 673 609 12 72
Electric heater dimensions
W - outer width
W
i
- internal cross section width (air ow slot)
H - outer height
H
i
- internal cross section width (air ow slot)
L - length
DUCTED WATER HEATING COIL
Cooling section characterisitic data
Duct water heater characteristic data
12
13
