Calibratable surface-contact temperature measuring transducer
THERMASGARD
®
ALTM 1
(compact variant) and
ALTM 2
(detached variant) with eight
switchable measuring ranges, continuous output, in an impact-resistant plastic housing with quick-locking screws, optionally
with ⁄ without
display, cable sensor with a pipe feeder
(ALTM 2)
, incl. strap.
The surface-contact sensor is used to detect the temperature on lines, pipes (e.g., cold and warm water) or on heating sections for heating control. The
sensor is factory-calibrated; an environmental precision adjustment by an expert is possible.
TECHNICAL DATA
Power supply:
24 V AC ⁄ DC (± 10 %) for U variant 15...36 V DC for I variant, depending on working resistance, residual ripple stabilised ± 0.3 V
Working resistance: R
a
(ohm) = (U
b
-14 V) ⁄ 0.02 A for I variant, see working resistance diagram
Load resistance: R
L
> 5 kOhm for U variant
Power consumption: < 1.0 VA ⁄ 24 V DC; < 2.2 VA ⁄ 24 V AC
Insulating resistance: ≥ 100 MΩ, at +20 °C (500 V DC)
Sensor: Pt1000, DIN EN 60751, class B
Perfect Sensor Protection
at IP68) sensor external
Measuring ranges:
multi-range switching with 8 switchable measuring ranges,
see table (other ranges optional)
with manual zero point correction (± 10 K)
ALT M 1:
compact variant,
T
max
up to +100 °C,
operating range –50...+100 °C
ALTM 2:
detached sensor variant,
T
max
over +100 °C,
operating range –50...+150 °C
Deviation, temperature: typically ± 0.2 K at +25 °C
Output: 0 - 10 V or 4...20 mA
Connection type: 2- or 3-wire connection
Cable connection:
cable gland
, plastic (M 16 x 1.5; with strain relief, exchangeable, max. inner diameter 10.4 mm)
or
M12 connector
(male, 5-pin, A-code) according to DIN EN 61076-2-101
Housing: plastic, UV-resistant, material polyamide, 30 % glass-globe reinforced,with quick-locking screws
(slotted ⁄ Phillips head combination), colour traffic white (similar to RAL 9016),,
housing cover for display is transparent!
Housing dimensions: 72 x 64 x 37.8 mm (Tyr 1 without display)
72 x 64 x 43.3 mm (Tyr 1 with display)
Sensor cable: :
ALTM 2:
Silicone, SiHF, 2 x 0,25 mm²; cable length (KL) = 1.5m
(other lengths and jacket materials, e.g. PTFE or
glass fibre with steel mesh, available on request)
Sensor protection:
ALTM 2:
pipe feeder made of stainless steel
V4A
(1.4571),
Ø = 6 mm, L = 50 mm
Electrical connection: 0.14 - 1.5 mm² via terminal screws
Process connection:
endless strap with metal tightener (included in the scope of delivery)
Ø = 13 - 92 mm (¼ - 3"), L = 300 mm
Ambient temperature: measuring transducer –30...+70 °C
Humidity: < 95 % r. H., non-precipitating air
Protection class: III (according to EN 60 730)
Protection type housing:
IP 65
(according to EN 60 529) Housing tested,
TÜV SÜD, Report No.713139052 (Tyr 1)
Protection type sensor:
ALTM 2: IP 65
(according to EN 60 529)
sleeve
humidity-tight (standard)
IP 68
(according to EN 60 529)
sleeve
water-tight (optional)
Standards: CE conformity, electromagnetic compatibility according to
EN 61326, according to EMC directive 2014 ⁄ 30 ⁄ EU
Optional: Two-line
display with illumination,
cutout approx. 36 x15 mm (W x H),
for displaying the
ACTUAL temperature
and the
internal
diagnostics
(measuring range exceeded, measuring range not
reached, sensor breakage, sensor short circuit)
G
THERMASGARD
®
ALTM
Rev. 2022 - V18

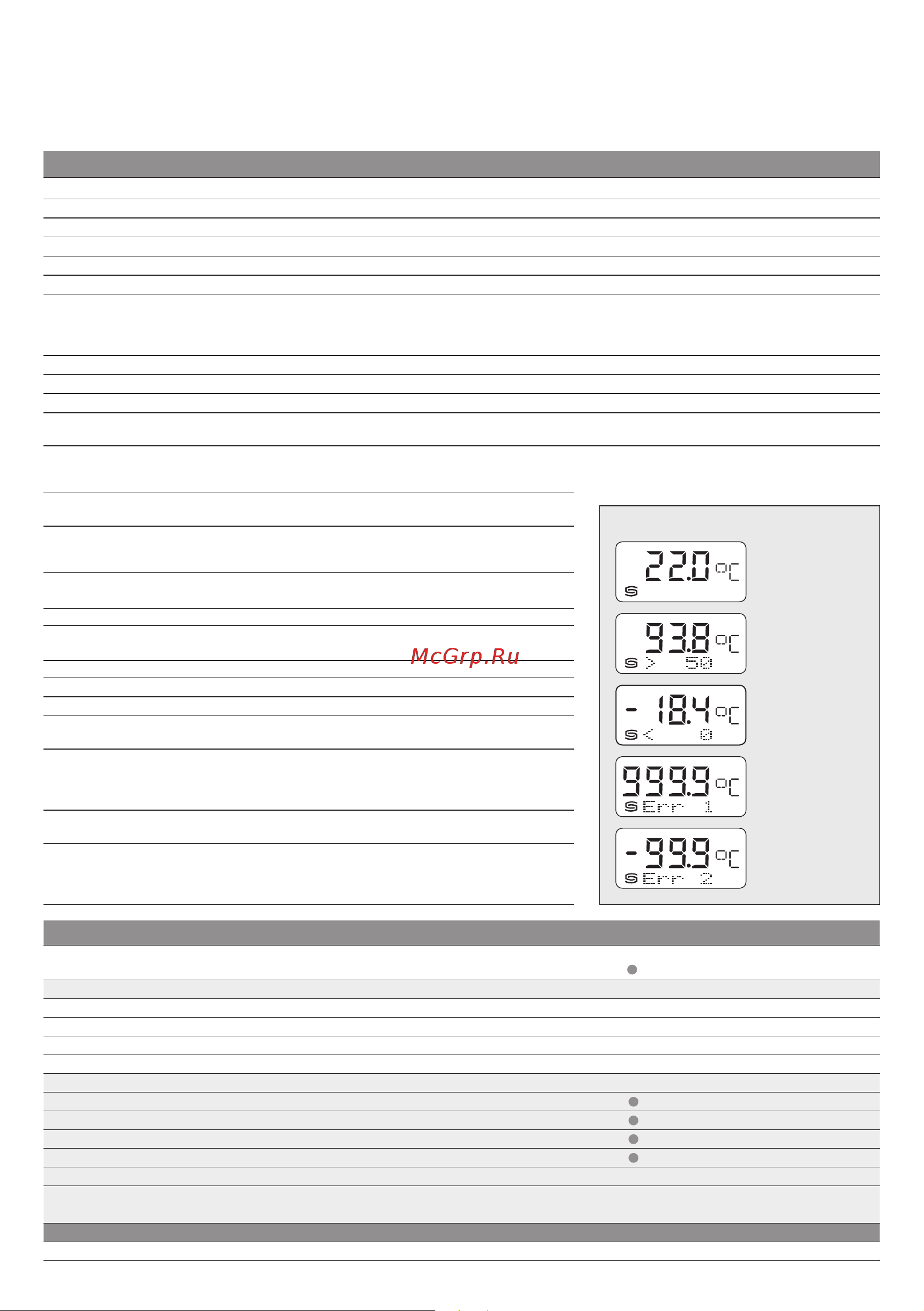

Display and internal diagnostics
Measuring range
exceeded
Standard
Measuring range
not reached
Sensor
breakage
Sensor
short circuit
THERMASGARD
®
ALTM 2 ⁄ ALTM 2 - Q
Surface contact ⁄ tube contact temperature measuring transducers
Type ⁄ WG01 Sensor Output Type
Display
= Q
Item No.
ALTM 2 (with cable gland)
ALTM2-I Pt1000 4...20 mA Remote sensor 1101-1122-0219-920
ALTM2-I
LCD
Pt1000 4...20 mA Remote sensor ■ 1101-1122-2219-920
ALTM2-U Pt1000 0 -10 V Remote sensor 1101-1121-0219-920
ALTM2-U
LCD
Pt1000 0 -10 V Remote sensor ■ 1101-1121-2219-920
ALTM 2 - Q (with M12 connector)
ALTM2-I
Q
Pt1000 4...20 mA Remote sensor
2001-2121-2100-001
ALTM2-I
Q
LCD
Pt1000 4...20 mA Remote sensor ■ 2001-2122-2100-001
ALTM2-U
Q
Pt1000 0 -10 V Remote sensor 2001-2121-1100-001
ALTM2-U
Q
LCD
Pt1000 0 -10 V Remote sensor ■ 2001-2122-1100-001
Housing variant "Q":
Cable connection
with
M12 connector
(male,
5-pin
, A-code)
Extra charge: Other ranges optional, Protection type
IP 68
(Sensor sleeve watertight compound-filled)
2-wire connecting leads, per running meter (
silicone
/
PTFE
/
glass fibre
) on request
ACCESSORIES
WLP-1
Heat-conductive paste, silicone-free 7100-0060-1000-000
