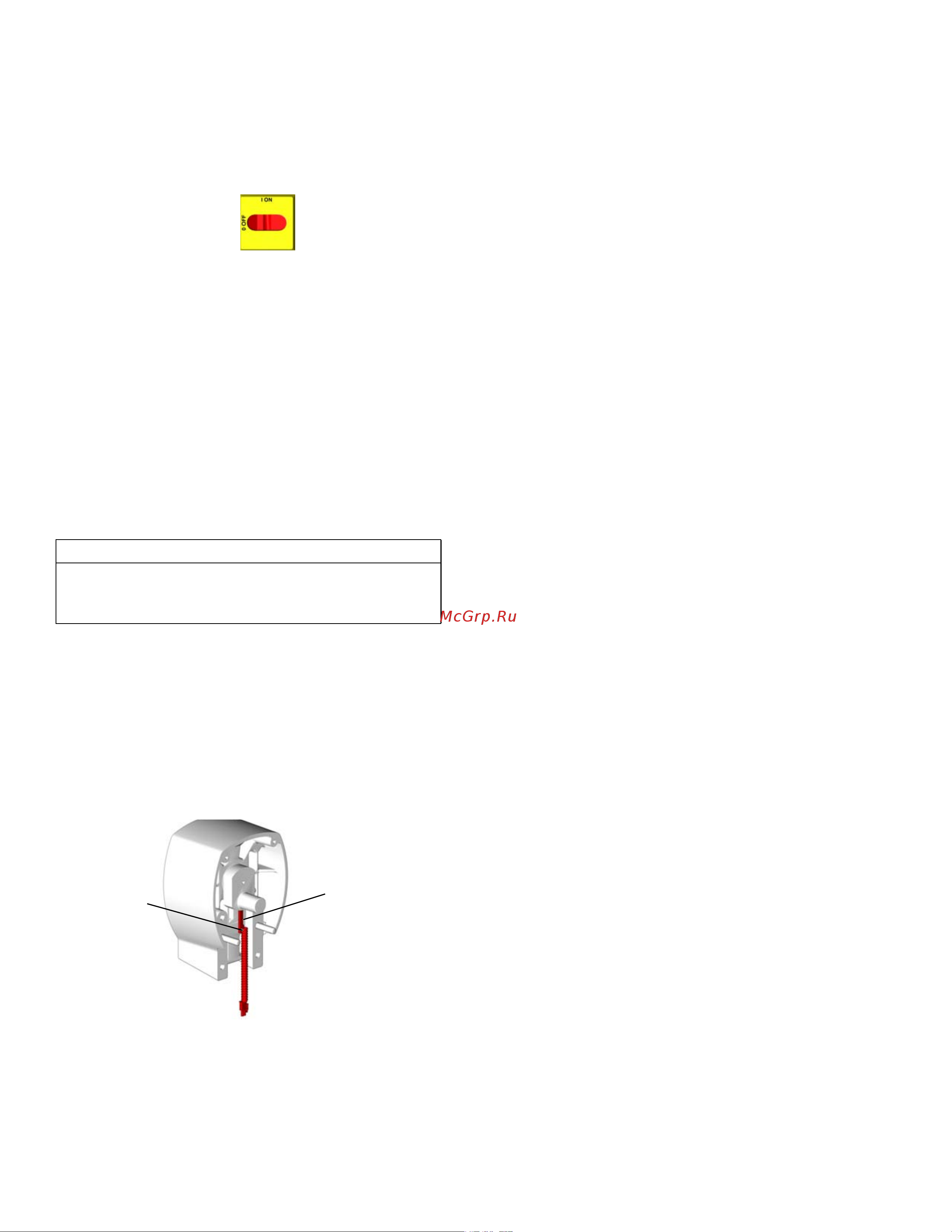

Repair
30 312066ZAF
Drive Housing
Removal
1. Turn main power OFF . Disconnect power
supply.
2. Perform the Pressure Relief Procedure, page 25.
3. Remove screws (38) and motor shield (9), page 52.
4. Remove screws (209) and front cover (217).
NOTE: Examine bearing housing (203) and connecting
rod (205). If these parts need replacing, first remove the
pump (206), page 28.
5. Disconnect pump inlet and outlet lines. Remove
screws (213), washers (215), and bearing housing
(203).
6. Remove screws (212, 219) and washers (214) and
pull drive housing (202) off motor (201).
NOTE: The A side drive housing includes cycle counter
switch (221). If replacing this housing, remove pins (P)
and switch. Reinstall pins and switch on new drive
housing. Switch wires connect to J10 pins 5 and 6 on
motor control board, page 36.
Installation
1. Apply grease liberally to washers (207, 208, 218),
all gears, and inside drive housing (202).
2. Install one bronze washer (208) in drive housing,
then install steel washers (207, 218) as shown.
3. Install second bronze washer (208) on gear cluster
(204) and insert gear cluster in drive housing.
NOTE: Drive housing crankshaft (S) must be in line with
crankshaft at other end of motor.
4. Push drive housing (202) onto motor (201). Install
screws (212, 219) and washers (214).
NOTE: If bearing housing (203), connecting rod (205),
or pump (206) were removed, reassemble rod in
housing and install pump, page 28.
5. Install bearing housing (203), screws (213), and
washers (215). Pumps must be in phase (both at
same position in stroke).
6. Install front cover (217) and screws (209).
7. Install motor shield (9) and screws (38).
CAUTION
Do not drop gear cluster (204) when removing drive
housing (202). Gear cluster may stay engaged in
motor front end bell (R) or drive housing.
TI3250
221
P
