Repair
312066ZAF 43
Thermocouple
1. Turn main power OFF . Disconnect power
supply.
2. Perform the Pressure Relief Procedure, page 25.
3. Wait for heaters to cool.
4. Remove heater shroud.
5. Disconnect thermocouple wires from B on
temperature control module. See TABLE 5, page 39
and FIG. 5, page 39.
6. Feed thermocouple wires out of cabinet. Note path
as wires must be replaced in the same way.
7. See FIG. 7. Loosen ferrule nut (N). Remove
thermocouple (310) from heater housing (301), then
remove thermocouple housing (H). Do not remove
the thermocouple adapter (305) unless necessary. If
adapter must be removed, ensure that mixer (309)
is out of the way when replacing the adapter.
8. Replace thermocouple, FIG. 7.
a. Remove protective tape from thermocouple tip
(T).
b. Apply PTFE tape and thread sealant to male
threads and tighten thermocouple housing (H)
into adapter (305).
c. Push in thermocouple (310) so tip (T) contacts
heater element (307).
d. Holding thermocouple (T) against heater
element, tighten ferrule nut (N) 1/4 turn past
tight.
9. Route wires (S) into cabinet and thread into bundle
as before. Reconnect wires to board.
10. Replace heater shroud.
11. Turn on heaters A and B simultaneously to test.
Temperatures should rise at same rate. If one
heater is low, loosen ferrule nut (N) and tighten
thermocouple housing (H) to ensure thermocouple
tip (T) contacts element (307).

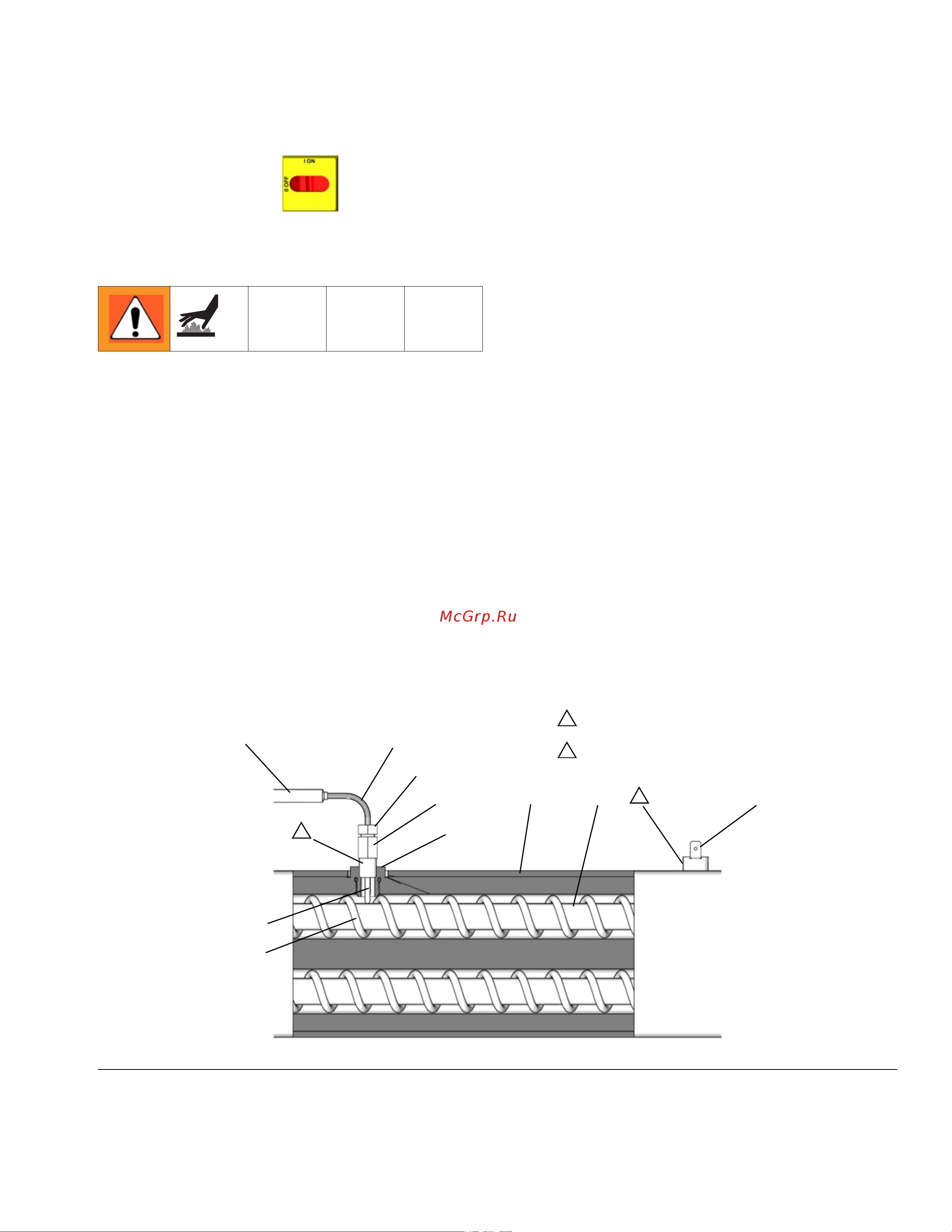

FIG. 7. Thermocouple
309
301
S
N
H
T
307
Apply PTFE tape and thread sealant.
1
1
308
ti7924a
Apply 110009 thermal heatsink compound.
2
2
310
35
