Repair
42 312066ZAF

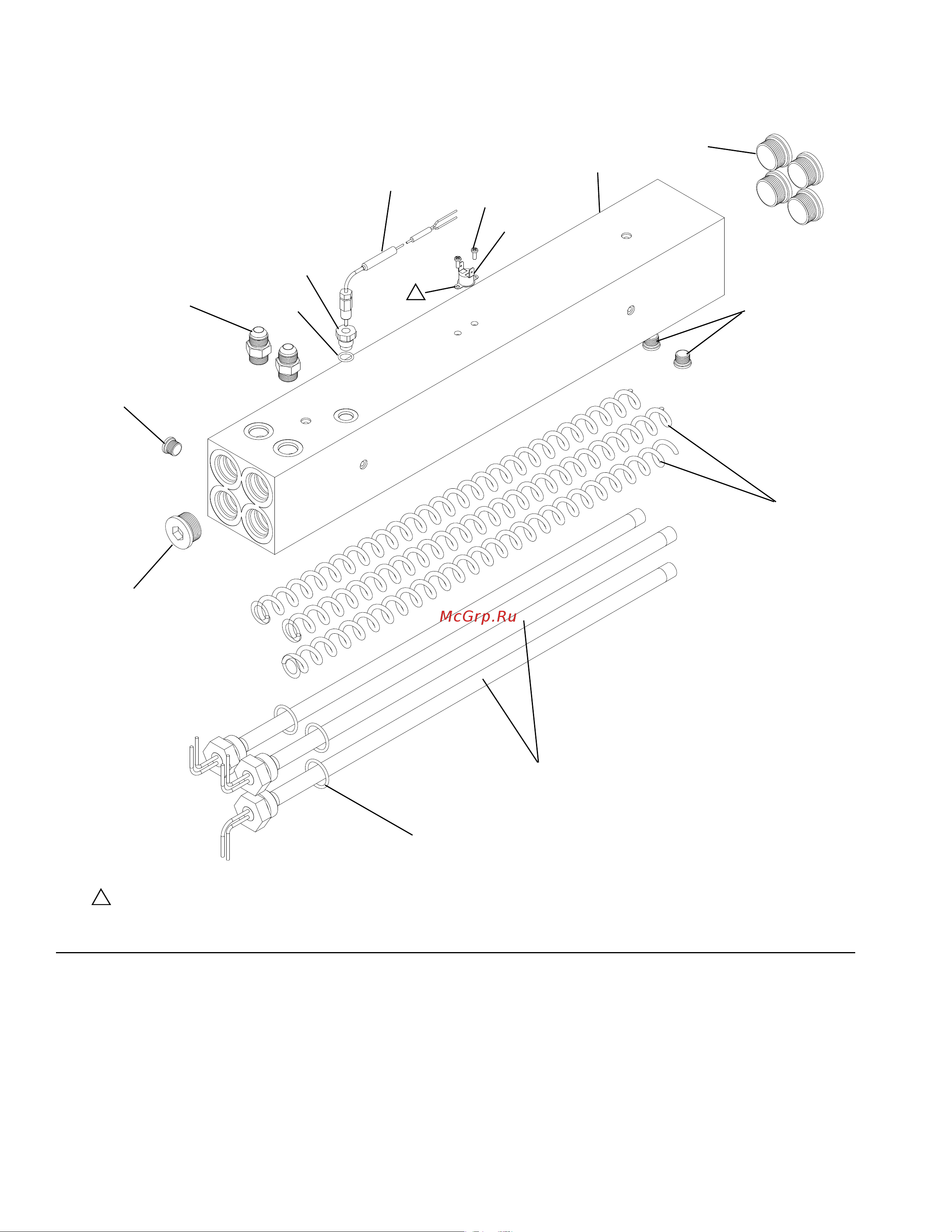

FIG. 6. Heater (7.5 kW Single Zone Heater Shown)
303
304
309
315
308
310
311
301
r_247813_312066
305
306
Apply 110009 thermal heatsink compound.
1
1
304
313
313
307
